Summary
POSIglaze is an adjustable aluminium channel system, with a strength-to-weight ratio which holds glass panels in place for use on balustrades and partitions.
POSIglaze is an adjustable aluminium channel system, with a strength-to-weight ratio which holds glass panels in place for use on balustrades and partitions.
Application
Suitable for residential to commercial settings.
Suitable for residential to commercial settings.
Description
A glass-clamping mechanism which locks glass panels into position with four immobilizing fasteners per metre of channel.
Features and benefits:
- Available as either base-drilled or side-drilled.
- Suitable for 12–21.5 mm glazing thicknesses.
- Pre-drilled.
- Fast to install.
- Designed to be installed without the need of ensuring the fitting surface is totally level.

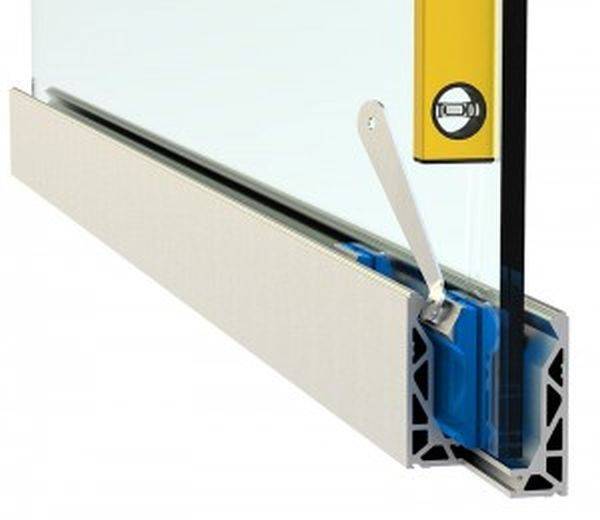

- Fully adjustable using an adjustment system allowing horizontal alignment of each glass panel.
- Light weight and extremely strong.
- 1.5 kN BS tested with less than 25 mm deflection.
- Tested to BS 6180:2011.
- Appropriate for domestic and commercial projects.
- No posts or handrail required (depending on local building regulations).
A glass-clamping mechanism which locks glass panels into position with four immobilizing fasteners per metre of channel.
Features and benefits:
- Available as either base-drilled or side-drilled.
- Suitable for 12–21.5 mm glazing thicknesses.
- Pre-drilled.
- Fast to install.
- Designed to be installed without the need of ensuring the fitting surface is totally level.
- Fully adjustable using an adjustment system allowing horizontal alignment of each glass panel.
- Light weight and extremely strong.
- 1.5 kN BS tested with less than 25 mm deflection.
- Tested to BS 6180:2011.
- Appropriate for domestic and commercial projects.
- No posts or handrail required (depending on local building regulations).
Product certifications
Digital objects
Color
Silver, Black
Silver, Black
Finish
Brushed
Brushed
Material
Aluminium
Aluminium
Shape
Rectangle
Rectangle
Length
3000 mm
3000 mm
Width
72 mm
72 mm
Height
111.50 mm
111.50 mm
Warranty description
Ten year
Ten year
SKU Code
PGC-010
PGC-020
Specification
Classification data
Rails
-
-
Base rails
PGC-010 - Base-fixed channel.

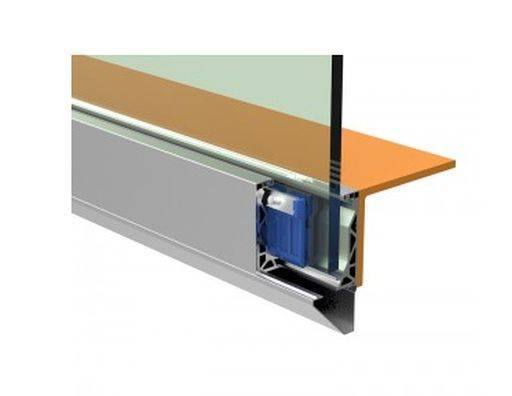

PGC-020 - Side-drilled channel.
Fixing to parent structure
-
-
Additional properties
Glazing clamp kit
PGB-0012., PGB-0013., PGB-0015., PGB-0017., PGB-0019., PGB-0021.
PGB-0012., PGB-0013., PGB-0015., PGB-0017., PGB-0019., PGB-0021.
Accessories
None., PGA-001 - Gasket, large - replacement gasket., PGA-002 - Gasket, small - replacement gasket., PGA-010 - Side cladding., PGA-020 - Bottom cladding., PGA-030 - Top seal strip cover., PGA-061 - End cap., PGA-065 - End cap., PGA-070 - Channel joining dowels., PV08DB - Drain block.
None., PGA-001 - Gasket, large - replacement gasket., PGA-002 - Gasket, small - replacement gasket., PGA-010 - Side cladding., PGA-020 - Bottom cladding., PGA-030 - Top seal strip cover., PGA-061 - End cap., PGA-065 - End cap., PGA-070 - Channel joining dowels., PV08DB - Drain block.
Sustainability data
Contains Red List materials
No
No
Country of product manufacture
United Kingdom
United Kingdom
Material
Aluminium
Aluminium
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
2.47
Certified
A1–A3 ('Production stage') :
2.47
Recyclability
95%
95%
Expected Life
25 year
25 year
