Grey

-

-

Powder-coated

-

-

Steel, Aluminium, Glass

-

-

Circle

-

-

2300 mm, 2120 mm, 1920 mm, 1720 mm

-

-

2300 mm, 2120 mm, 1920 mm, 1720 mm

-

-

2300 mm

-

-

Two year

-

-

CE marked.

-

-

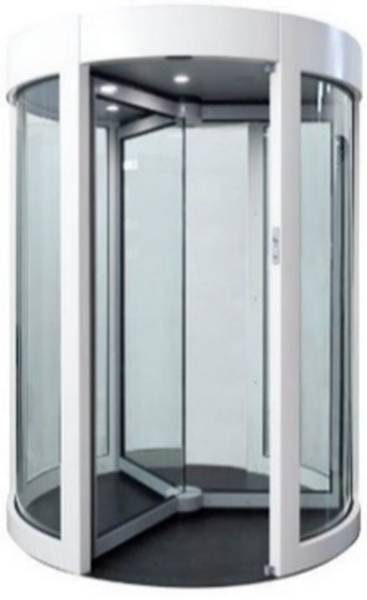

1600 mm internal diameter three wing doorset.

-

-

-

-

-

Aluminium frame.

-

-

Embossed painted steel section, powder-coated finish RAL 9006.

-

-

-

-

-

Manufacturer's standard., BR2, to EN 1063., BR3, to EN 1063., BR4, to EN 1063.

-

-

Safety manifestations on moving glass wings.

-

-

Powder-coated steel section exterior, with laminated HPL-finished pearl grey ceiling.

-

-

-

-

-

Access control system, push button and ceiling sensors.

-

-

Safety torque sensing, safety edges for forward and reverse directions.

-

-

Electro-mechanical., RC2 locking, to EN 1627., RC3 locking, to EN 1627.

-

-

Manufacturer's standard., Breakout wings.

-

-

None., External night shutters., Anit-bandit glass., Floor carpet (grey)., Anti-piggy back (APB) system - BASIC., Anti-piggy back (APB) system - ADVANCED., Anti-panic push button., Status light pictograms., Card reader integration., Push button control.

-

-

Installing hardware.

-

-

Manufacturer's standard., Other.

-

-

Proximity reader only: 48 passages per minute., Pin pad only: 30 passages per minute., Proximity reader + pin pad: 20 passages per minute.

-

-

Concrete to 30 N/mm², >1850 x 1850 x 150 mm.

-

-

230 V a.c., 115 V a.c.

-

-

Three recessed low voltage mains LED down lights.

-

-

Unidirectional.

-

-

710 kg.

-

-

IP33.

-

-

1.5 million cycles.

-

-

0–50°C.

-

-
