Summary

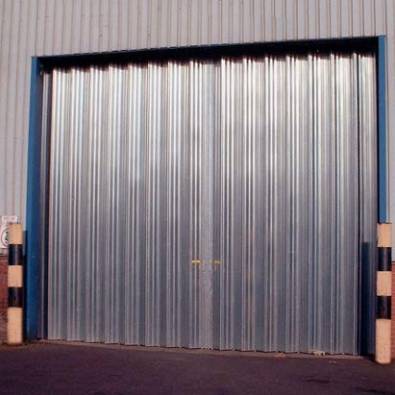

Folding steel shutter door with stacking to one side or bi-parting with stacking to both sides.Doors can be built into the reveal ( Bunching within ) or face fixed each side ( Bunching Past )
Folding steel shutter door with stacking to one side or bi-parting with stacking to both sides.Doors can be built into the reveal ( Bunching within ) or face fixed each side ( Bunching Past )
Application
Suitable for external applications such as warehouses and locomotive or carriage sheds.
Suitable for external applications such as warehouses and locomotive or carriage sheds.
Description
A strong and robust door controlled by a pantograph system which is tough, yet smooth and easy to operate.
Features and benefits:
- Minimal headroom is occupied.
- Doors can be arranged to fit around crane beams or railway catenary wires, making them particularly suitable for locomotive or carriage sheds.
- A secondary top track can be fitted to prevent sway.
- Tolerates most extreme weather conditions.
- All rolled components are supplied in galvanized steel and other steel items are zinc plated. Brackets are fabricated and primer painted.
- Bolts with Teflon coated heads ensure that the ends of the lattice bars slide freely.
- Multiple fixed or floating door units can be combined to cover openings of most widths.
- Building register approved.
- Contractors Health & Safety Assessment Scheme accredited contractor.
- WCS accreditation.
A strong and robust door controlled by a pantograph system which is tough, yet smooth and easy to operate.
Features and benefits:
- Minimal headroom is occupied.
- Doors can be arranged to fit around crane beams or railway catenary wires, making them particularly suitable for locomotive or carriage sheds.
- A secondary top track can be fitted to prevent sway.
- Tolerates most extreme weather conditions.
- All rolled components are supplied in galvanized steel and other steel items are zinc plated. Brackets are fabricated and primer painted.
- Bolts with Teflon coated heads ensure that the ends of the lattice bars slide freely.
- Multiple fixed or floating door units can be combined to cover openings of most widths.
- Building register approved.
- Contractors Health & Safety Assessment Scheme accredited contractor.
- WCS accreditation.
Color
Silver, Other
Silver, Other
Finish
Powder-coated, Galvanized, Plastisol, Zinc plated
Powder-coated, Galvanized, Plastisol, Zinc plated
Material
Steel
Steel
Shape
Rectangle, Square
Rectangle, Square
Width
Bespoke
Bespoke
Height
Bespoke, 9000 mm
Bespoke, 9000 mm
Specification
Grade
External.
External.
Format
Top hung, one way bunching., Top hung, bi-parting opening.
Top hung, one way bunching., Top hung, bi-parting opening.
Track system
Horizontal tubular track, guided in a channel set into the floor.
Horizontal tubular track, guided in a channel set into the floor.
Door leaf
-
-
Construction
Ribbed steel leaves, 0.9 mm thick, 230 mm wide, with rolled edges hinged in patented pickets.
Ribbed steel leaves, 1.2 mm thick, 230 mm wide, with rolled edges hinged in patented pickets.
Finish
Galvanized and zinc plated., Powder-coating., Colourcoat HP200 Plastisol.
Galvanized and zinc plated., Powder-coating.
Operation
Manual., Electric.
Manual., Electric.
Additional properties
Integral accessories
Pull handles, aluminium.
Pull handles, aluminium.
Total weight
30 kg/m² (minimum).
30 kg/m² (minimum).
Bracket
Steel angles with factory applied primer.
Steel angles with factory applied primer.
Top track
2.6 mm thick, cold formed galvanized steel., 5 mm thick, painted heavy duty track.
2.6 mm thick, cold formed galvanized steel., 5 mm thick, painted heavy duty track.
Top cover
Galvanized steel.
Galvanized steel.
Bottom channel
2 mm thick galvanized steel multi-profile section.
2 mm thick galvanized steel multi-profile section.
Locking
Hasp and staple, motorised bolt., Hasp and staple, surface hook bolt.
Hasp and staple, motorised bolt., Hasp and staple, surface hook bolt.
Threshold
Nylon in PVC clip-on extrusion.
Nylon in PVC clip-on extrusion.
Fixing type
Inside reveals., Outside reveals., Between jambs.
Inside reveals., Outside reveals., Between jambs.
