Summary

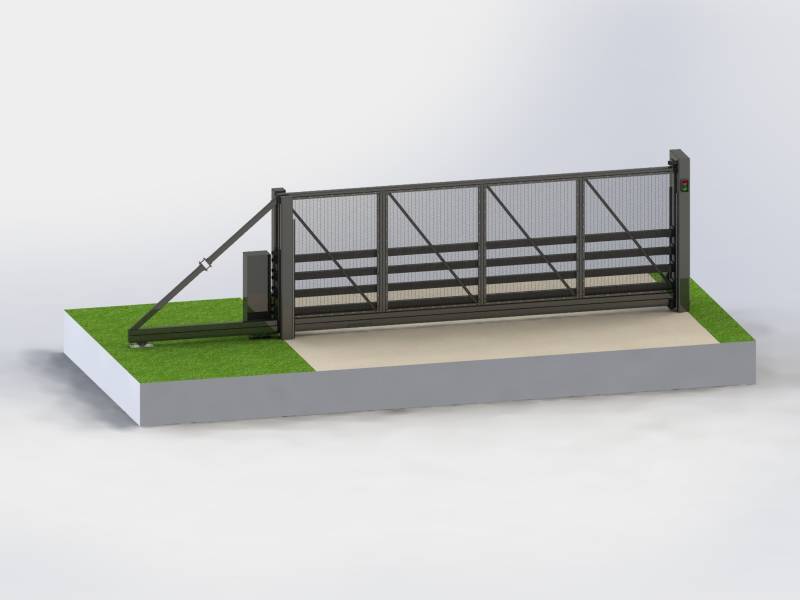

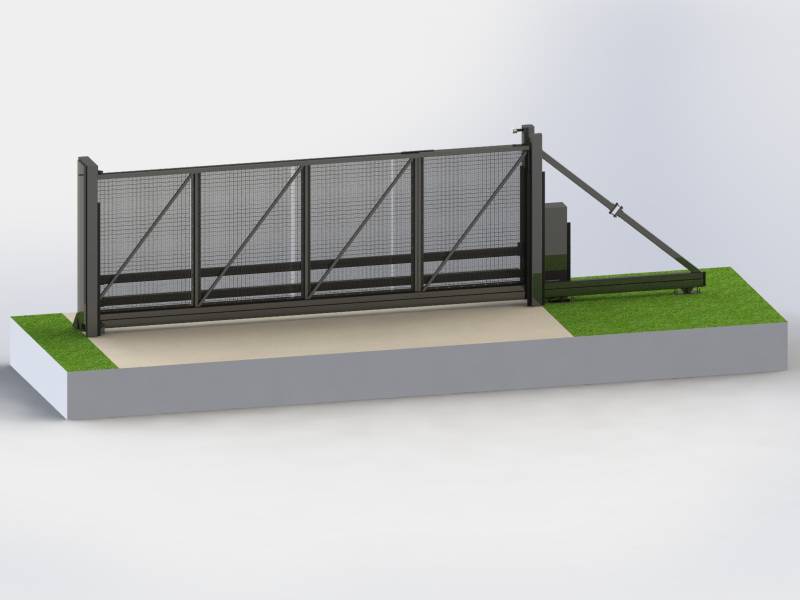

PAS68 Sliding Gate - Interrogator.
PAS68 Sliding Gate - Interrogator.
Finish
Powder-coated
Powder-coated
Material
Steel
Steel
Shape
Rectangle, Square
Rectangle, Square
Width
8000 mm
8000 mm
Height
3000 mm
3000 mm
Warranty description
One year
One year
Specification
Format
Cantilevered, sliding.
Cantilevered, sliding.
Method of operation
Heavy duty cantilever rolling gear.
Heavy duty cantilever rolling gear.
Barrier dimension
-
-
Height
3000 mm.
3000 mm.
Span
8000 mm.
8000 mm.
Posts
Receptor post.
Receptor post.
Barriers
-
-
Type
Not required., Acoustic solid., Bar., Bar and welded mesh., Ornate., Palisade., Perforated steel sheet., Welded mesh., Special order.
Not required., Acoustic solid., Bar., Bar and welded mesh., Ornate., Palisade., Perforated steel sheet., Welded mesh., Special order.
Material
Carbon steel.
Carbon steel.
Finish as delivered
-
-
Worked finish
Blast cleaned, SA 2.5.
Blast cleaned, SA 2.5.
Applied finish
Galvanized and powder coated, RAL., Zinc phosphate and powder coated, RAL.
Galvanized and powder coated, RAL., Zinc phosphate and powder coated, RAL.
Accessories
None., Signage., Traffic lights.
None., Signage., Traffic lights.
Additional properties
Primer
Interpon PZ790.
Interpon PZ790.
Operation
3 phase motor., 24 V motor.
3 phase motor., 24 V motor.
Speed
Manufacturer's standard., High speed.
Manufacturer's standard., High speed.
Access control
Automatic number plate recognition (ANPR)., Card reader., Digital keypad., Radio control system., Push button control.
Automatic number plate recognition (ANPR)., Card reader., Digital keypad., Radio control system., Push button control.
Top protection
Not required., 55 mm serrated edge., Barbed tape., Barbed wire., Long blunted spikes., Palisade struts., Rotating serrated edge on a revolving tube., Rotating spikes.
Not required., 55 mm serrated edge., Barbed tape., Barbed wire., Long blunted spikes., Palisade struts., Rotating serrated edge on a revolving tube., Rotating spikes.
Performance characteristics
PAS68 rating: crash tested to 7.5T (N2) @ 40 mph (64 kph).
PAS68:2010 V/7500[N2]/64/90:5.6/10.1.
PAS68:2010 V/7500[N2]/64/90:5.6/10.1.
PAS68 rating: crash tested to 7.5T (N3) @ 50 mph (80 kph).
PAS68:2010 V/7500[N3]/80/90:1.6/5.4.
PAS68:2010 V/7500[N3]/80/90:1.6/5.4.
Construction
Manufactured from 50 x 50 mm carbon steel box section with 25 mm bars spaced at approximately 100 mm intervals.
Manufactured from 50 x 50 mm carbon steel box section with 25 mm bars spaced at approximately 100 mm intervals.
Drive/ Control
240 V, 16 A supply.
240 V, 16 A supply.
Safety features
Complies with gate safety standard BS EN 13241-1.
Hi/Lo safety photocells.
Manual release in the event of power failure.
Protected with CAT3 safety edges.
Safety loops.
Hi/Lo safety photocells.
Manual release in the event of power failure.
Protected with CAT3 safety edges.
Safety loops.
Complies with gate safety standard BS EN 13241-1.
Hi/Lo safety photocells.
Manual release in the event of power failure.
Protected with CAT3 safety edges.
Safety loops.
Hi/Lo safety photocells.
Manual release in the event of power failure.
Protected with CAT3 safety edges.
Safety loops.
Sustainability data
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Material
Steel
Steel
Expected Life
15 year
15 year
