Summary
Telescopic gullies for use with gully tops or linear drainage channels, 2.75–3.50 L/s flow rate.
-
-
Application
For commercial applications where hygiene, durability and performance requirements are paramount.
-
-
Description

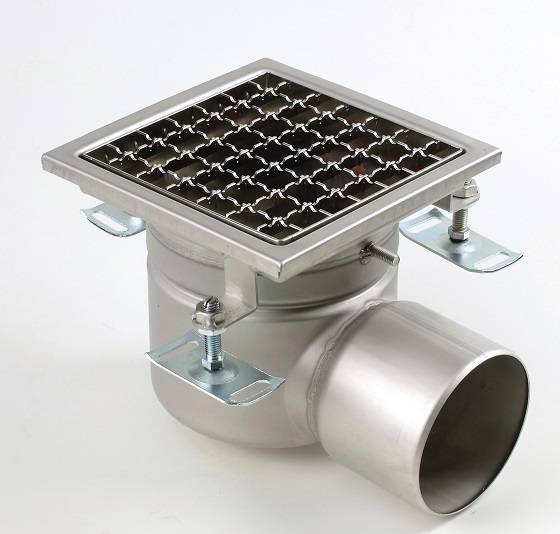

Telescopic gullies for commercial applications where hygiene, durability and performance requirements are paramount. Available in a number of versions featuring different flow rates, grating designs, sizes and spigot outlet diameters to suit various applications and to match the floor construction and depth.
Telescopic gullies can be installed either with ACO gully tops or with ACO stainless steel linear drainage channels in most flooring constructions. The gully body can have a location flange or integrated membrane flange for either adhesive bonding or mechanical clamping.
The hygienic design includes large radii-formed contours, deep-drawn components and minimal welds to minimise crevices and bacteria traps in accordance with BS EN 1672 and BS EN ISO 14159.
Gratings available in a range of patterns, finishes stainless steel grades. Consult ACO Technologies for details.
Features and benefits:
- Fully compliant with BS EN 1253.
- Available in 1.4301 or 1.4401 grade stainless steel.
- Fully removable and easily cleaned stainless steel foul air trap (FAT).
- Removable hygienic and corrosion resistant Nitrile FAT support.
- High flow rate gullies from 2.75–3.50 L/s.
-
-
Material
Stainless steel
-
-
Specification
Classification data
Body
-
-
-
Material
Grade 1.4301 stainless steel.
-
-
Cover or grating
-
-
-
Cover or grating type
408208, 200 x 200 mm square top., 408218, 200 x 200 mm square top., 408248, 250 x 250 mm square top., 408258, 250 x 250 mm square top., 408240, vinyl floor top square top., 408250, vinyl floor top square top., 408241, thin-bed top or tanked flooring., 408251, thin-bed top or tanked flooring., 408244, thin-bed top with drainage holes., 408254, thin-bed top with drainage holes., 408245, thin-bed top or tanked flooring., 408255, thin-bed top or tanked flooring., 408246, thin-bed top with drainage holes., 408256, thin-bed top with drainage holes.
-
-
Integral accessories
408202, Vertical outlet silt basket., 408213, Vertical outlet silt basket., 408203, Horizontal outlet silt basket., 408213, Horizontal outlet silt basket.
-
-
Additional properties
Raising piece
408249, location flange., 408259, location flange., 408206, adhesive bonding flange., 408216, adhesive bonding flange., 408207, mechanical clamping flange., 408207, mechanical clamping flange.
-
-
