Summary

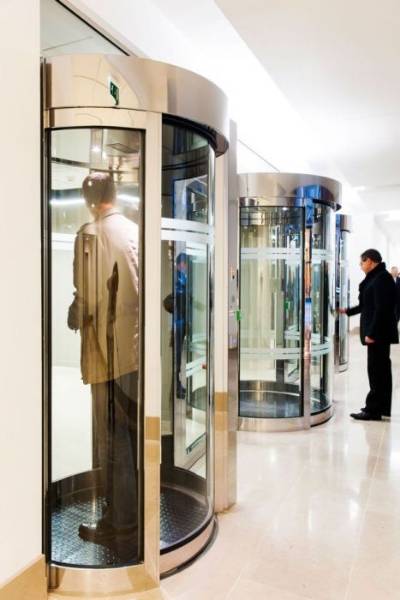

Security interlocks for controlled access.
-
-
Digital objects
-
-
Color
Silver, Black, Other
-
-
Finish
Anodized, Powder-coated
-
-
Material
Aluminium, Glass
-
-
Shape
Circle
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
One year
-
-
Specification
Performance
In accordance with BS EN 17352.
-
-
Arrangement
Dual sliding door system.
-
-
Track system
Unit to sit upon a base ring with drive units within canopy.
-
-
Door leaves
-
-
-
Construction
Aluminium profiles with glazing, flush mounted outside.
-
-
Finish and colour
Silver anodized., Polyester powder coated, RAL.
-
-
Operation
Powered.
-
-
Additional properties
Door
Sliding.
-
-
Side panels
Metal cladding.
-
-
Resistance class
Not required., Class WK2., Class WK3., FB2 BR-2 S bullet-resistant glazing., BR3 BR3-S bullet-resistant glazing.
-
-
Modular components
Not applicable.
-
-
Security
-
-
-
Total height
2400 mm.
-
-
Clear passage height
2100 mm.
-
-
Power supply
230 V AC, 50 Hz.
-
-
Capacity
3–4 per minute.
-
-
Fixing
Floor element for structural floor level (SFL).
-
-
Dimensions
1020 mm diameter., 1220 mm diameter.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Germany
-
-
Country of product manufacture
Germany
-
-
Manufacturing plant location
Nikolaus-Otto-Straße 1, 77815 Bühl, Germany
-
-
Material
Aluminium, Glass
-
-
