Elite 7 A1 - Acoustic roofing system
Elite 7 A1 - Acoustic roofing system
Elite 7 A1 - Acoustic roofing system

Last verified by manufacturer over a year ago

Euroclad Group Ltd

Last verified by manufacturer over a year ago

Euroclad Group Ltd

Last verified by manufacturer over a year ago

Euroclad Group Ltd
Summary
High performance acoustical insulated built-up roofing system over structural deck for pitches greater than 1°.
-
-
Application

An acoustic recyclable roof built-up system on structural deck suitable for:

  • Roof pitches ≥ 4˚.
  • Curved roofs (can self-curve up to 40 m radius).
  • All humidity class buildings.
  • Applications where acoustic absorption is a requirement.
  • Applications where noise reverberation is undesirable.
  • Warehousing, logistics centres and large scale applications.
-
-
Description

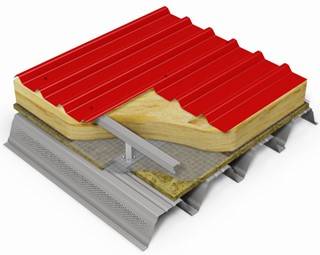

Site assembled recyclable built-up roofing system over structural deck. Comprising of a liner sheet (structural deck) separated by a spacer system, with an external steel profile and mineral wool or glass fibre insulation that sits between the sheets. The acoustic insulation is laid over the structural deck to provide required acoustic absorption.


Features and benefits:

  • Completely non-combustible and recyclable.
  • 0.7 mm steel external profile sheet.
  • Provides insulation with either glass fibre or mineral wool insulation.
  • Acoustic insulation is laid over the structural deck.
  • Can self-curve up to 40 m radius.
  • 25 year guarantee.
  • For additional thicknesses/ U-values, contact Euroclad technical team.
-
-
Material
Steel, Mineral wool, Stainless steel, Aluminium, Glass Fibre
-
-
Shape
Rectangle
-
-
WarrantyDescription
25 year
-
-

Specification

Liner sheets
-
-
-
Material
Euroclad perforated structural deck.
-
-
Air and vapour control layer
-
-
-
Material
Euroclad Elite VCL.
-
-
Spacers
Bar and bracket.
-
-
Acoustic insulation
30 mm laid over the structural deck.
-
-
Thermal insulation
Glass fibre insulation.
-
-
External sheets
-
-
-
Material
EC 32-167-1000 Roof 32_1F, 0.7 mm external profile steel sheet.
-
-
System accessories
Not required., Euroclad Architectural internal/ external butt jointed 0.7 mm steel flashings., Euroclad Architectural internal/ external butt jointed 0.9 mm aluminium., Euroclad Architectural internal/ external butt jointed 2 mm polyester powder coated aluminium., Euroclad Architectural internal/ external butt jointed 3 mm polyester powder coated aluminium.
-
-
Samples required
Not required., Product samples.
-
-

Additional properties

Fixings
Stainless steel.
-
-
Profile fillers
Metallocene polyolefin (MP), black., Metallocene polyolefin (MP), white.
-
-
Finish
Colorcoat® HPS200® Ultra., Colorcoat® Prisma®., Duragloss 5000., Duragloss, PVDF., Duragloss, ARS., Duragloss, OP., Mill, stucco embossed.
-
-
Reaction to fire (EN 13501-1)
Class A1., Class A1 and Class C-s2, d0 (Colorcoat® HPS200® Ultra).
-
-
U-value
0.25 W/m²K.
-
-
Weight
11.6 kg/m².
-
-
Thickness
170 mm.
-
-
Curve radius
Up to 40 m.
-
-
Roof pitch
≥ 4˚.
-
-
Top hats
25 x 30 x 80 x 30 x 25 mm, 1.6 mm galvanized.
-
-
