Summary

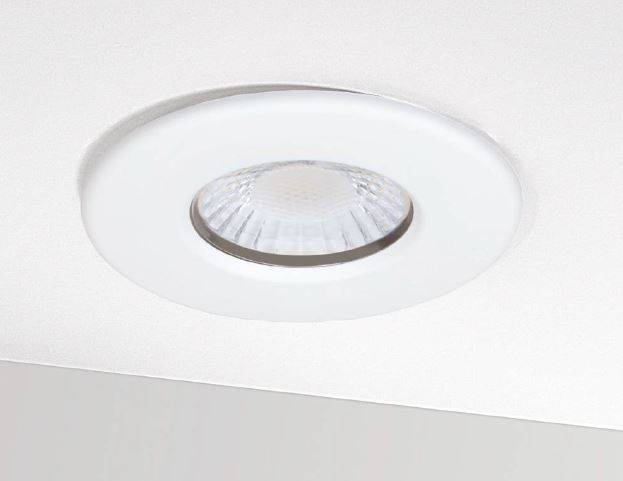

Downlight luminaire.
Downlight luminaire.
Application
Residential lighting suitable for:
- Lounge.
- Kitchen.
- Home Office.
- Home Gym.
- Bedroom.
- Bathroom Zone 1.
- Hallways.
The product is not suitable for exterior use.
Residential lighting suitable for:
- Lounge.
- Kitchen.
- Home Office.
- Home Gym.
- Bedroom.
- Bathroom Zone 1.
- Hallways.
The product is not suitable for exterior use.
Description
Downlight luminaire. Colour and wattage switchable using switches under bezel.
Features and benefits:
- CCT switchable between 2700, 3000 and 4000 K.
- Wattage switchable between 4.2 and 6 W.
- Switches allow you to choose options at installation.
- High efficacy of 124 lm/W.
- Two-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/ reconnection be required.
- Compatible with Click Flow CT100 series.
- TRIAC Mains dimmable.
- Fixed with 55° beam angle.
- Compatible with H2 twist and lock bezels.
- Control wirelessly from your phone or tablet using Collingwood Smart.
- Maximum ceiling thickness: 40 mm.
- Complies with UK Building Regulations Approved Documents B, C, E, P and L.
- Ceiling joist approvals: Solid timber, I-joist and metal web.
- UK bathroom zone 1.
- Cut-out size: 68–72 mm diameter.
- Double insulated. Rolled and blown insulation.
- Light source energy efficiency: D.
Downlight luminaire. Colour and wattage switchable using switches under bezel.
Features and benefits:
- CCT switchable between 2700, 3000 and 4000 K.
- Wattage switchable between 4.2 and 6 W.
- Switches allow you to choose options at installation.
- High efficacy of 124 lm/W.
- Two-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/ reconnection be required.
- Compatible with Click Flow CT100 series.
- TRIAC Mains dimmable.
- Fixed with 55° beam angle.
- Compatible with H2 twist and lock bezels.
- Control wirelessly from your phone or tablet using Collingwood Smart.
- Maximum ceiling thickness: 40 mm.
- Complies with UK Building Regulations Approved Documents B, C, E, P and L.
- Ceiling joist approvals: Solid timber, I-joist and metal web.
- UK bathroom zone 1.
- Cut-out size: 68–72 mm diameter.
- Double insulated. Rolled and blown insulation.
- Light source energy efficiency: D.
Color
White, Black
White, Black
Material
Steel, Plastic
Steel, Plastic
Shape
Circle
Circle
Width
90 mm
90 mm
Height
52 mm
52 mm
Warranty description
Seven year
Seven year
SKU Code
DLT551500A
DLT551500A
Specification
Luminaire description
Downlight luminaire.
Downlight luminaire.
Classification
-
-
Electric shock
To BS EN IEC 60598-1, Class II.
To BS EN IEC 60598-1, Class II.
Ingress protection (minimum)
IP65 (from below) IP20 (from above).
IP65 (from below) IP20 (from above).
Circumstances of use
Normal.
Normal.
Rated maximum ambient temperature
40°C.
40°C.
Controlgear position
Integral within luminaire.
Integral within luminaire.
Nominal voltage
230 V a.c.
230 V a.c.
LED luminaires
-
-
Initial LED luminaire efficacy (minimum)
107.
107.
Wattage
Wattage switchable between 4.2 and 6 W.
Wattage switchable between 4.2 and 6 W.
Colour temperature
CCT switchable between 2700, 3000 and 4000 K.
CCT switchable between 2700, 3000 and 4000 K.
Colour rendering index (Ra)
80.
80.
Beam angle
55°.
55°.
Useful life
40,000 h L70.
40,000 h L70.
Dimming protocol
Dimmable (mains).
Dimmable (mains).
Accessories
DLCVT110 Concealer ring for larger cut outs., DM298FP Faceplate dimmer., DM298GRID Grid dimmer., H2 Twist and lock bezels.
DLCVT110 Concealer ring for larger cut outs., DM298FP Faceplate dimmer., DM298GRID Grid dimmer., H2 Twist and lock bezels.
Additional properties
ConnectionType
Two-part first fit connector.
Two-part first fit connector.
Construction
Carbon steel / V0 rated plastic.
Carbon steel / V0 rated plastic.
Inrush current
1.8 A, 0.3 ms.
1.8 A, 0.3 ms.
Driver
Integrated SELV driver (Parallel wiring required).
Integrated SELV driver (Parallel wiring required).
Quantity
One.
Eight.
