Summary
Class A1 fire-rated, non-combustible, metal duct kits with soldier air bricks, for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects. Compatible with 220 x 90 mm duct.
Class A1 fire-rated, non-combustible, metal duct kits with soldier air bricks, for high-rise buildings over 18 m (11 m in Scotland) and cladding remediation projects. Compatible with 220 x 90 mm duct.
Application

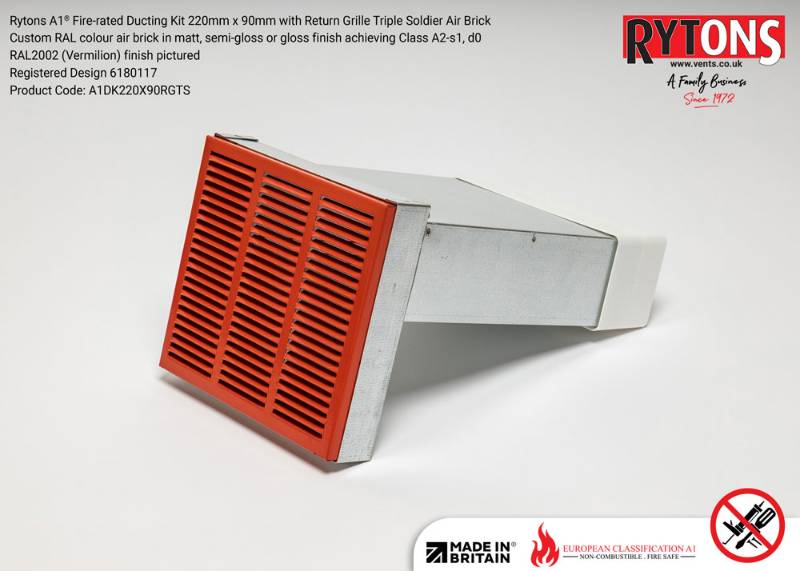

A range of tailor-made Class A1 fire-rated ducting kits, with soldier style air brick, compatible with rectangular HVAC and extract ducting 220 x 90 mm.
Features and benefits:
- Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
- Air brick offers low resistance and high airflow. For cladding, choose the flanged option to cover cut edges and maintain the aesthetic appearance.
- Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
- Made to custom length and includes a plastic duct connector. Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
- Supplied ready to install with no on-site assembly required.
- Custom design option available.
- Made in Britain.
A range of tailor-made Class A1 fire-rated ducting kits, with soldier style air brick, compatible with rectangular HVAC and extract ducting 220 x 90 mm.
Features and benefits:
- Compliant with regulations for the requirement of non-combustible ducting in the external walls of high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
- Air brick offers low resistance and high airflow. For cladding, choose the flanged option to cover cut edges and maintain the aesthetic appearance.
- Custom powder coated air brick. Choose from the RAL Classic colour chart in matt, semi-gloss or gloss finish achieving Class A2-s1, d0. RAL Design and signature architectural coatings are also available.
- Made to custom length and includes a plastic duct connector. Note: Rytons recommend adding 100mm to the external wall measurement to ensure the duct and connector finish within the inner leaf.
- Supplied ready to install with no on-site assembly required.
- Custom design option available.
- Made in Britain.
Description
Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
Suitable for use in high-rise buildings and those 11 m and above undergoing unsafe cladding remediation work.
Finish
Matt, Semi-gloss, Gloss
Matt, Semi-gloss, Gloss
Material
Steel
Steel
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
220 mm
220 mm
Height
90 mm
90 mm
SKU Code
A1DK220X90RGTS, A1DK220X90RGTSF
A1DK220X90RGTS, A1DK220X90RGTSF
Specification
Classification data
Work sizes
220 x 90 mm.
220 x 90 mm.
Material
Galvanized steel.
Galvanized steel.
Colour
RAL colour.
RAL colour.
Additional properties
Overall length
Custom.
Custom.
Free area
34320 mm².
34320 mm².
Flange size
15 mm (with corner screw holes).
-
Sealant
Everbuild Fire Mate.
Everbuild Fire Mate.
Fire performance
Class A1.
Class A1.
Sustainability data
Contains Red List materials
No
No
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Recyclability
Recyclable
Recyclable
