Summary
Versatile steel shelter range available in a number of fixed sizes, or as a highly-customizable modular shelter system.
-
-
Application

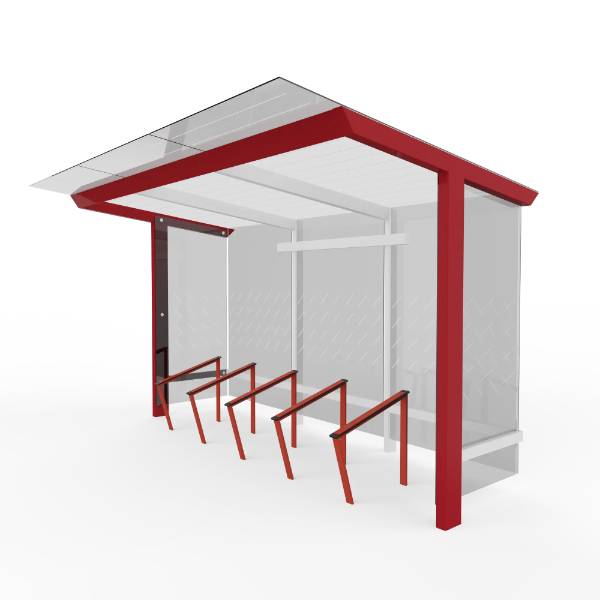

The X1 Shelter Collection is suitable for a range of shelter applications including as a:

  • Bus stop.
  • Smoking shelter.
  • Bicycle storage.

Modular systems are suitable for a range of applications and environments including:

  • Parks.
  • Pedestrian zones.
  • Courtyards.
  • Town squares.
  • Gas stations.
-
-
Description

Versatile steel shelter range available in a number of fixed sizes, or as a highly-customizable modular shelter system.

The X1 Collection is a versatile steel shelter range featuring a clear shape and sober construction. A shelter that can fit into most environments it is characterized by the positioning of the supporting columns in the rear wall.

The Modular System is a highly-customizable alternative, consisting of two basic components, connecting pieces and beams, which can be extended by a number of accessory components. The combination of possibilities are extensive, enabling you to create your world exactly according to your wishes.

Features and benefits, X1 Collection:

  • Available as bus, smoking and bicycle shelters.
  • Options with or without side panels, this shelter is suited for confined and open spaces.
  • Three roof options: laminated glass, tempered safety glass or green roof with vegetation.
  • Wooden seats are available as tropical wood or vacuum-thermalized European wood with a natural or teak oil treated finish.
  • The glass panes on the roof and sides can carry graphic elements.
  • Lighting options.
  • Extensive accessories including: bulletin boards, timetable panels and ID panels.

Features and benefits, Modular System:

  • Modular design can be highly customized.
  • Extensive accessory options including: climbing panels, drawing boards bike holders, seating and planters.
  • Choice of roofing types: none, slatted, fixed, glass and green roofs.
  • Two frame material options: Siberian larch and aluminium and steel alloy.
  • Metal elements consists of a corrosion-protective zinc coating and a powder coating.
  • Stainless steel fasteners.
-
-
Color
Clear, Cream, Beige, Yellow, Orange, Red, Blue, Turquoise, Green, Grey, Brown, Black, Silver, Other
-
-
Finish
Zinc plated, Powder-coated, Matt, Natural, Treated, Coated
-
-
Material
Steel, Glass, Wood, Alloy
-
-
Shape
Rectangle, Square
-
-
Length
2165 mm, 2800 mm, 2805 mm, 4170 mm, 4210 mm, 4250 mm, 5545 mm, 5580 mm, 6335 mm, Bespoke
-
-
Width
1738 mm, 2165 mm, 2500 mm, 4250 mm, Bespoke
-
-
Height
2400 mm, 2605 mm, 2705 mm
-
-
SKU Code
X1-V310-SS
-
-

Specification

Classification data
Shelter description
Rectangular, monopitch-roofed with rear and side panelling.
-
-
Dimensions
-
-
-
Plan size
4210 x 2500 mm.
-
-
Height
2605 mm.
-
-
Frame
-
-
-
Material
Structural steel.
-
-
Finish
Anticorrosive protective zinc layer and a powder coating.
-
-
Flooring or decking
Not applicable.
-
-
Panels
8 mm-thick ESG tempered safety glass with printing.
-
-
Roof covering
Laminated glass., Tempered safety glass., Green roof with vegetation.
-
-
Integral services
-
-
-
Rainwater drainage
Rainwater or other precipitation runs off the rear edge of the roof onto the ground.
-
-
Accessories
Not required., Bulletin board., Timetable panels., ID panels., Internal luminaires., Citylight., Individual printing on glass panels., Bike stands.
-
-

Additional properties

Seating
Solid wood, natural finish., Solid wood, treated with teak oil., Tropical wood, natural finish., Tropical wood, treated with teak oil., European wood, natural finish., European wood, treated with teak oil.
-
-
Weight
890 kg.
-
-
Couplings
Manufacturer's standard.
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
Europe
-
-
Country of product manufacture
Europe
-
-
Material
Steel, Glass, Wood, Alloy
-
-
Recyclability
100% Recyclable
-
-
Recycled content
0 %
-
-
Expected Life
Ten year
-
-
