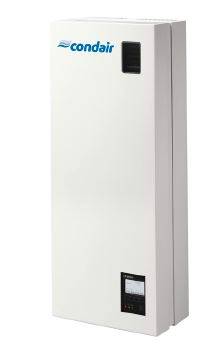

Condair CP3mini - Low Capacity Electric Steam Humidifier
Verified over a year ago
Condair Limited
CP3 Mini PR2 (230 V)
nbs-symbol
Add to spec
Condair CP3mini - Low Capacity Electric Steam Humidifier
Verified over a year ago
Condair Limited
Select variant..
nbs-symbol
Add to spec
Condair CP3mini - Low Capacity Electric Steam Humidifier
Verified over a year ago
Condair Limited
Select variant..
nbs-symbol
Add to spec
Summary
Compact electrode steam humidifier.
Shape
Rectangle
-
-
Color
White
-
-
Material
Steel, Plastic
-
-
Size
265 x 650 x 175 mm
-
-
Specification
Duty
-
-
-
Air volume
22 m³/h.
-
-
Steam source
Compact electrode steam.
-
-
Accessories
Not required., Remote operating and error signaling., Hose set for concealed unit connections., Control via radio humidity sensor.
-
-
Additional properties
Dimensions
265 x 650 x 175 mm.
-
-
Third party certification:
CE, VDE and GOST.
-
-
Performance
0.4–2 kg/h.
-
-
Power input
1.6 kW.
-
-
Operating voltage
230 V, 1 Phase, 50–60 Hz.
-
-
SoundPressure
37 dB (Level A).
-
-
Volume
200 m³.
-
-
OperatingWeight
6.2 kg (empty), 11 kg (filled).
-
-
Signalization
On/ Off (24 V d.c.), 0–5 V d.c., 1–5 V d.c., 0–10 V d.c., 0–20 mA, 4–20 mA.
-
-
ThermalConductivity
125–1250 μS/cm.
-
-
Water pressure
1–10 bar.
-
-
SupplyWaterTemperatureHeating
1–40°C.
-
-
Ambient temperature
1–40°C.
-
-
AirPressureRange
-0.8 to +0.8 kPa.
-
-
Ingress protection (IP) rating
IP20.
-
-
Maximum relative humidity at 20°C
75%.
-
-
