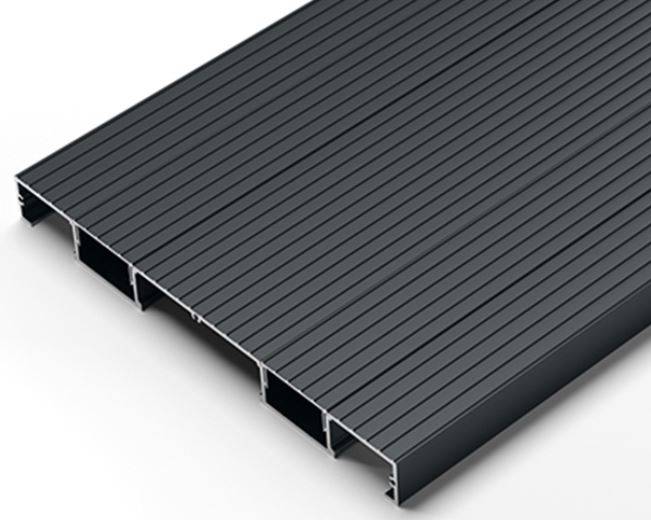

Adek Aluminium Decking Board: Enhanced Grip 295 Board
Adek Aluminium Decking Board: Enhanced Grip 295 Board

Verified over a year ago

ecodek

20 mm

Verified over a year ago

ecodek

30 mm

Summary
Non combustible aluminium decking board with A2fl-s1 fire rating.
Non combustible aluminium decking board with A2fl-s1 fire rating.
Digital objects
Shape
Rectangle
Rectangle
Color
Grey, Other
Grey, Other
Finish
Ribbed
Ribbed
Material
Aluminium
Aluminium
WarrantyDescription
20 year
20 year
Size
20 x 295 x 4000 mm, 20 x 295 x 5000 mm, 20 x 295 x 6000 mm, 30 x 295 x 4000 mm, 30 x 295 x 5000 mm, 30 x 295 x 6000 mm
20 x 295 x 4000 mm, 20 x 295 x 5000 mm, 20 x 295 x 6000 mm, 30 x 295 x 4000 mm, 30 x 295 x 5000 mm, 30 x 295 x 6000 mm

Specification

Profile
Ribbed.
Ribbed.
Section
20 x 295 mm.
30 x 295 mm.
Length
4 m., 5 m., 6 m., Bespoke.
4 m., 5 m., 6 m., Bespoke.
Reaction to fire
Class A2FL-s1.
Class A2FL-s1.
Recycled content (minimum)
100%.
100%.

Additional properties

Colour
Anthracite RAL 7016., RAL.
Anthracite RAL 7016., RAL.
Slip resistance
81 PTV (Dry) 55 PTV (Wet).
81 PTV (Dry) 55 PTV (Wet).
TensileStrength
241 Mpa.
241 Mpa.
Elastic modulus
69 GPa.
69 GPa.
Elongation at break
18%.
18%.
Fixing
Concealed fixing.
Concealed fixing.
Impact resistance
To EN 477, 3.56 mm.
To EN 477, 3.65 mm.
Force
>10 kN.
>10 kN.
Mass
3.82 kg/m.
4.21 kg/m.
Material/ Finish
Aluminium; qualicoat 1.
Aluminium; qualicoat 1.

Environmental

Recyclability
100%
100%
Recycled content
100
100
