Summary
Installation system with thermal insulation for windows which project forward of the backing wall.
-
-
Application
For application onto window systems.
-
-
Description

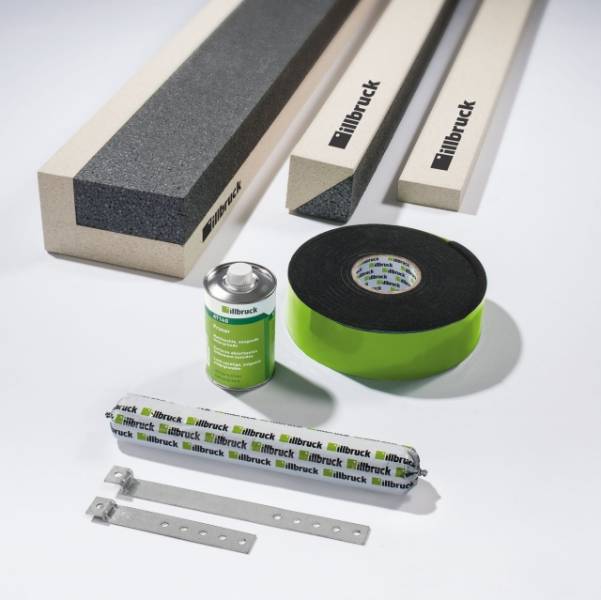

The illbruck SY001 Thermal Window Installation System allows for optimum installation and sealing of windows in the insulation layer outside of the window opening, where windows are installed projecting forwards of the backing wall. The installation frame is easy to install and the window is sealed to provide weather and air tightness with excellent thermal and acoustic insulation properties.
The PR007, PR010 and PR011 profiles are manufactured from a rigid recycled PU material which is bonded to the backing wall using illbruck SP350 hybrid high grab adhesive. The adhesive transfers all forces due to wind, self-weight of system and window dead-load (mechanical fixings are recommended to resist the deadload at the bottom of the window) to the supporting wall.
The windows are attached using distance screw fixings and sealed with illbruck illmod TP654 Trio 1050 which provides a three level perimeter seal (weather and air-tightness and thermal insulation). In order to facilitate easy fitting of adjacent insulation, the illbruck PR008 or PR012 insulation wedge can be attached to the PR007/ PR010 window installation frame using illbruck SP350.
Features and benefits:
- Improved thermal performance.
- Improved acoustic performance up to 49 dB.
- Simplifies window installation.
- Windows can be removed, replaced and resealed without removing the facade (4-sided only).
- High load capability – accommodates heavy windows/doors with ease.
- Suitable for use with solid wall or lightweight SFS construction.
- Enables early sealing of the weather-tight envelope.
- Full system application ensures compatibility and proof of performance.
Loading capacity:
Up to 214 kg.
Adhesive (SP350):
- Hybrid, hi-grab adhesive.
- Supplied in 310 ml cartridges.
Primer (AT140):
- Primer for backing wall and PR007 profiles.
- Supplied in 500 ml containers.
Tape (TP654):
- Multi-functional tape for sealing the window frame to the installation frame.
- Width: To suit joint widths from 6-15 mm and 10-25 mm.
For Technical Data Sheets and Safety Data Sheets, please refer to the illbruck website Download Centre.
-
-
Color
Grey, Beige
-
-
Material
Polyurethane
-
-
Shape
Rectangle
-
-
Length
200 mm, 160 mm, 180 mm, 150 mm, 140 mm, 130 mm, 120 mm, 110 mm, 90 mm, 82 mm, 70 mm, 35 mm
-
-
Width
120 mm, 90 mm, 82 mm, 70 mm
-
-
Height
1400 mm, 1350 mm, 1200 mm, 1000 mm
-
-
SKU Code
PR007, PR008, PR010, PR011, PR012
-
-
Specification
Classification data
Profile or section
90 mm.
-
-
Size
90 x 90 x 1200 mm.
-
-
Additional properties
Insulation wedge
-
-
-
Building material class
To DIN 4102.
-
-
Resistance to fire
To DIN 13501-1, Class E.
-
-
ThermalConductivity
0.070 W/m.K.
-
-
Acoustic performance
49 dB.
-
-
Weight
2.5–7.5 kg/m.
-
-
CompressiveStrength
To EN 826, 4 MPa.
-
-
Flexural strength
To EN 12089, 4 MPa.
-
-
Temperature resistance
To DIN 53423, -50° to + 100°C.
-
-
ThicknessSwelling
To DIN EN 68736, 0.8%.
-
-
Storage
Store all structural and insulation profiles in shaded, dry conditions between +10 and +25°C.
-
-
Shelf life
Minimum 24 months when stored as recommended.
-
-
Density
550 kg/m³.
-
-
