Summary
Ceiling tile manufactured with a glass wool core and semi-concealed grid system.
Ceiling tile manufactured with a glass wool core and semi-concealed grid system.
Application
For classrooms or other spaces that require good acoustics and speech intelligibility, and can also be demounted.
For classrooms or other spaces that require good acoustics and speech intelligibility, and can also be demounted.
Description

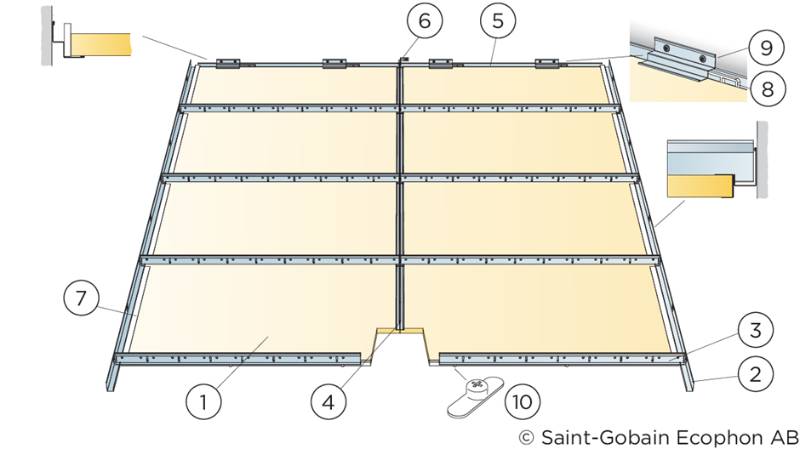

Ecophon Master™ Rigid Dp is a patented, semi-concealed grid system for use when a lockable, impact resistant system is required. Features a reinforced sandwich construction.
Features and benefits:
- Absorption class A.
- Painted edges.
- Impact resistant system with demountable tiles.
- Akutex™ FT surface in combination with the glass wool core provides optimal sound absorption.
- The surface is suitable daily dusting and vacuum cleaning. Weekly wet wiping.
- CE marked according to the European harmonized standard EN 13964:2014.
- Eurofins Indoor Air Comfort® Gold certified product.
Ecophon Master™ Rigid Dp is a patented, semi-concealed grid system for use when a lockable, impact resistant system is required. Features a reinforced sandwich construction.
Features and benefits:
- Absorption class A.
- Painted edges.
- Impact resistant system with demountable tiles.
- Akutex™ FT surface in combination with the glass wool core provides optimal sound absorption.
- The surface is suitable daily dusting and vacuum cleaning. Weekly wet wiping.
- CE marked according to the European harmonized standard EN 13964:2014.
- Eurofins Indoor Air Comfort® Gold certified product.
Product certifications
Color
White
White
Finish
Painted, Galvanized
Painted, Galvanized
Material
High-density glass wool, Steel
High-density glass wool, Steel
Shape
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm
600 mm, 1200 mm
Width
600 mm
600 mm
Height
20 mm
20 mm
Warranty description
Ten year
Ten year
SKU Code
M318EB
M319
Specification
Classification data

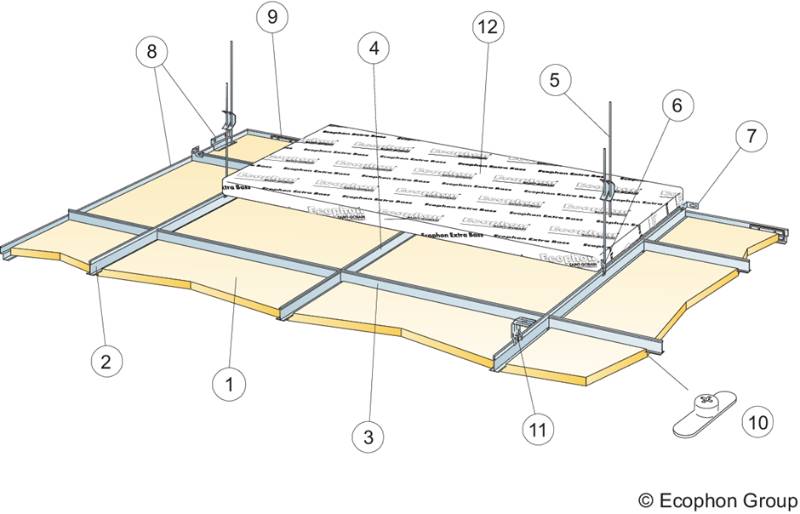

Ceiling support
Connect™ T24 grid.
Connect™ T24 grid.
Support fasteners
Connect adjustable hangers and hanger clips., Connect direct bracket.
Connect adjustable hangers and hanger clips., Connect direct bracket.
Ceiling units
Master Rigid Dp tile.
Master Rigid Dp tile.
Barriers in ceiling void
-
-
Fire barriers
-
-
Acoustic barriers
-
-
Plenum barriers
-
-
System accessories
Not required., Connect clips., Connect connectors and splines., Connect fixing devices., Connect suspensions and brackets., Connect™ Shadow Line Trim., Other.
Not required., Connect clips., Connect connectors and splines., Connect fixing devices., Connect suspensions and brackets., Connect™ Shadow Line Trim., Other.
Additional properties
Installation
M318EB – suspended ceiling.
M319 - Corridor installation.
Sound absorption
To EN ISO 354, Class A.
To EN ISO 354, Class A.
Reaction to fire
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
Size (length x width)
600 x 600 mm., 1200 x 600 mm.
600 x 600 mm., 1200 x 600 mm.
Thickness (overall)
20 mm.
20 mm.
Weight
3.5 kg/m².
3.5 kg/m².
Edges
Painted.
Painted.
Surface finish
Akutex™ FT.
Akutex™ FT.
Colour
White frost.
White frost.
Core material
Glass wool.
Glass wool.
Constant humidity resistance
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
Indoor climate
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Standard
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Material
High-density glass wool, Steel
High-density glass wool, Steel
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
4.95
Certified
A1–A3 ('Production stage') :
4.95
Recyclability
Fully recyclable
Fully recyclable
Recycled content
55 %
55 %
Expected Life
50 year
50 year
