Summary

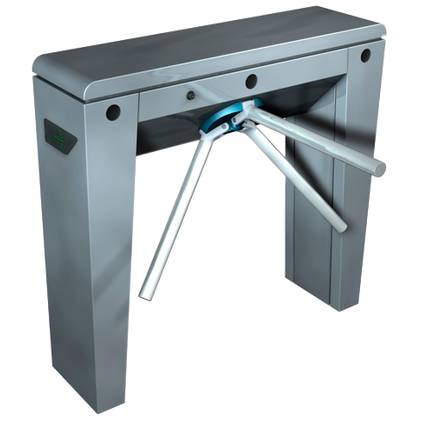

Tripod turnstile for internal or external Installation.
Tripod turnstile for internal or external Installation.
Tripod turnstile for internal or external Installation.
Application
Suitable for areas where there is a large flow of people:
- Government.
- Retail.
- Finance.
- Telecommunications.
- Information technology.
- Banking.
- Publishing.
- Leisure.
- Petrochemical.
- Education.
Suitable for areas where there is a large flow of people:
- Government.
- Retail.
- Finance.
- Telecommunications.
- Information technology.
- Banking.
- Publishing.
- Leisure.
- Petrochemical.
- Education.
Suitable for areas where there is a large flow of people:
- Government.
- Retail.
- Finance.
- Telecommunications.
- Information technology.
- Banking.
- Publishing.
- Leisure.
- Petrochemical.
- Education.
Description
A compact and cost-effective entrance solution designed for smooth and silent operation, low wear and tear and reduced power consumption. On receiving a signal from the access control system or push button, it allows the passage of one person at a time. The status is shown on the LED way mode indicators, in entry and exit side.
Passage in both directions is electronically controlled. It is available in normally closed (N/C) configuration to lock the mechanism until a valid authorization signal is received, or in normally open (N/O) configuration to lock the mechanism in the event of attempted unauthorized entry. The N/O configuration also allows reduced power consumption and increases the life of the mechanism and passage throughput speed. In case of emergency, the hub can freely rotate to allow an easier exit. The drop arm option can also be chosen which automatically drops the horizontal arm to allow free passage. LED way mode indicators are included as standard.
Features and benefits:
- Well-designed two-legged casework made of stainless steel (SlimStile EV).
- Smooth and silent operation.
- CE marked.
- Mean time to repair (MTTR): <30 minutes.
- Alarmed variant available (EV ATT); consult manufacturer for details.
If a smaller footprint is required, see SlimStile BA (specified separately).
A compact and cost-effective entrance solution designed for smooth and silent operation, low wear and tear and reduced power consumption. On receiving a signal from the access control system or push button, it allows the passage of one person at a time. The status is shown on the LED way mode indicators, in entry and exit side.
Passage in both directions is electronically controlled. It is available in normally closed (N/C) configuration to lock the mechanism until a valid authorization signal is received, or in normally open (N/O) configuration to lock the mechanism in the event of attempted unauthorized entry. The N/O configuration also allows reduced power consumption and increases the life of the mechanism and passage throughput speed. In case of emergency, the hub can freely rotate to allow an easier exit. The drop arm option can also be chosen which automatically drops the horizontal arm to allow free passage. LED way mode indicators are included as standard.
Features and benefits:
- Well-designed two-legged casework made of stainless steel (SlimStile EV).
- Smooth and silent operation.
- CE marked.
- Mean time to repair (MTTR): <30 minutes.
- Alarmed variant available (EV ATT); consult manufacturer for details.
If a smaller footprint is required, see SlimStile BA (specified separately).
A compact and cost-effective entrance solution designed for smooth and silent operation, low wear and tear and reduced power consumption. On receiving a signal from the access control system or push button, it allows the passage of one person at a time. The status is shown on the LED way mode indicators, in entry and exit side.
Passage in both directions is electronically controlled. It is available in normally closed (N/C) configuration to lock the mechanism until a valid authorization signal is received, or in normally open (N/O) configuration to lock the mechanism in the event of attempted unauthorized entry. The N/O configuration also allows reduced power consumption and increases the life of the mechanism and passage throughput speed. In case of emergency, the hub can freely rotate to allow an easier exit. The drop arm option can also be chosen which automatically drops the horizontal arm to allow free passage. LED way mode indicators are included as standard.
Features and benefits:
- Well-designed two-legged casework made of stainless steel (SlimStile EV).
- Smooth and silent operation.
- CE marked.
- Mean time to repair (MTTR): <30 minutes.
- Alarmed variant available (EV ATT); consult manufacturer for details.
If a smaller footprint is required, see SlimStile BA (specified separately).
Digital objects
Color
Grey
Grey
Grey
Height
950 mm
950 mm
950 mm
Length
1004 mm
1004 mm
1004 mm
Width
820 mm, 1620 mm
820 mm, 1620 mm
820 mm, 1620 mm
Finish
Grained
Grained
Grained
Material
Stainless steel
Stainless steel
Stainless steel
Size
750 x 1004 x 950 mm
750 x 1004 x 950 mm
750 x 1004 x 950 mm
Warranty description
Two year
Two year
Two year
SKU Code
Slimstile EV
Slimstile EV
Slimstile EV
Specification
Classification data
Turnstile type
Tripod arms.
Tripod arms.
Tripod arms.
Rotation
Bidirectional.
Bidirectional.
Bidirectional.
Control unit
Required.
Required.
Required.
Finish
Grained/ polished.
Grained/ polished.
Grained/ polished.
Additional properties
Mounting
Pedestal-mounted.
Pedestal-mounted.
Pedestal-mounted.
Accessories
None., Card reader mounting., Remote control MP2000., Push button control., Pictograms., LCD counter.
None., Card reader mounting., Remote control MP2000., Push button control., Pictograms., LCD counter.
None., Card reader mounting., Remote control MP2000., Push button control., Pictograms., LCD counter.
Passage configuration
Static arm hub assembly., Drop arm hub assembly.
Static arm hub assembly., Drop arm hub assembly.
Static arm hub assembly., Drop arm hub assembly.
Power supply
230 V a.c., 115 V a.c.
230 V a.c., 115 V a.c.
230 V a.c., 115 V a.c.
Casework/ lid material
Grade 1.4401 (316) grained stainless steel.
Grade 1.4301 (304) grained stainless steel.
Grade 1.4301 (304) grained stainless steel.
Ingress protection (IP) rating
IP54.
IP20.
IP20.
Arms
38 x 480 mm.
38 x 480 mm.
38 x 480 mm.
Interfaces
LL2001Lite microprocessor control logic.
LL2001Lite microprocessor control logic.
LL2001Lite microprocessor control logic.
Passage rate
20–40 passages per minute.
20–40 passages per minute.
20–40 passages per minute.
Operating temperature range
-5 to +50°C
-5 to +50°C
-5 to +50°C
MeanTimeBetweenFailure
Ten million cycles.
Ten million cycles.
Ten million cycles.
