Summary
Concealed digital mixing valve for washbasins.
Concealed digital mixing valve for washbasins.
Application
For wash basins.
For wash basins.
Description
Concealed digital mixing valve for washbasins.
Features and benefits:
- Offers programmable maximum, minimum and default temperatures, duty flush and thermal disinfection with temperature logging and data logging capabilities.
- Supplied complete with programmable software, power supply, isolators, non return valves and filters.

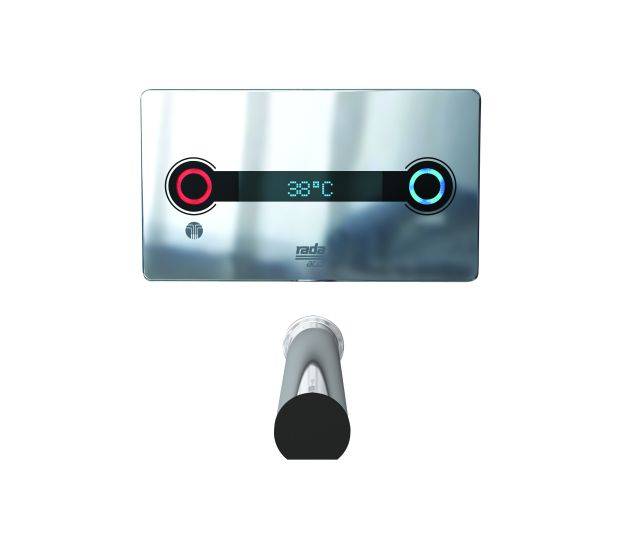

- Panel mounted control panel offering access to valve, featuring infra-red non-touch controls for temperature adjustment and programming.
- Panel mounted spout offering user activated on/ off control or timed flow.
- Exceeds HTM64 requirements.
- Incorporates T-logic digital intelligence, allowing the user to operate, communicate and exchange information with the digital mixing valve to achieve safety, hygiene and control.
- Programmable flow times and temperatures and three optional pre-programmed modes.
- Panel mounted temperature control panel.
- Incorporates T-logic digital intelligence.
Concealed digital mixing valve for washbasins.
Features and benefits:
- Offers programmable maximum, minimum and default temperatures, duty flush and thermal disinfection with temperature logging and data logging capabilities.
- Supplied complete with programmable software, power supply, isolators, non return valves and filters.
- Panel mounted control panel offering access to valve, featuring infra-red non-touch controls for temperature adjustment and programming.
- Panel mounted spout offering user activated on/ off control or timed flow.
- Exceeds HTM64 requirements.
- Incorporates T-logic digital intelligence, allowing the user to operate, communicate and exchange information with the digital mixing valve to achieve safety, hygiene and control.
- Programmable flow times and temperatures and three optional pre-programmed modes.
- Panel mounted temperature control panel.
- Incorporates T-logic digital intelligence.
Digital objects
Color
Silver
Silver
Finish
Chrome
Chrome
Material
Stainless steel, Brass, Plastic
Stainless steel, Brass, Plastic
Warranty description
Two year, Five year
Two year, Five year
SKU Code
1.1664.001, 1.1664.002
1.1664.001, 1.1664.002
Specification
Approval
Water Regulations Advisory Scheme (WRAS) approved and BEAB.
Water Regulations Advisory Scheme (WRAS) approved and BEAB.
Form
Digital mixing valve.
Digital mixing valve.
Materials
-
-
Body
PC with in mould decoration (control panel cover), ABS (mixing unit enclosure), DZR brass, stainless steel and engineering plastic (integral components).
PC with in mould decoration (control panel cover), ABS (mixing unit enclosure), DZR brass, stainless steel and engineering plastic (integral components).
Finish and colour
Chrome plated.
Chrome plated.
Flow rate (maximum)
6 L/min.
6 L/min.
Additional properties
Spout length
190 mm.
225 mm.
NominalStaticPressure
1000/100 kPa.
1000/100 kPa.
Ambient temperature
1 - 40°C.
1 - 40°C.
RelativeHumidity
95%.
95%.
Installation depth
75 mm.
75 mm.
NominalSupplyVoltage
100–230V RMS 50–60 Hz.
100–230V RMS 50–60 Hz.
Load (maximum)
20 W (PSU).
20 W (PSU).
Thickness
13 - 22 mm.
13 - 22 mm.
Ingress protection (IP) rating
IP24.
IP24.
Pressure
3:1.
3:1.
Connection
15 mm compression., Flat faced union.
15 mm compression., Flat faced union.
Dimensions
236 x 135 x 9.5 mm.
236 x 135 x 9.5 mm.
Sustainability data
Country of product manufacture
United Kingdom
United Kingdom
