Summary
A modular fencing system for mezzanine edge protection to ensure the safety of employees working at height and prevention of items falling to become a hazard to the area below.
A modular fencing system for mezzanine edge protection to ensure the safety of employees working at height and prevention of items falling to become a hazard to the area below.
Application
- A complete mezzanine edge fall prevention system.
- Can be installed from the start of the project.
- As a modification of the X-Guard range, it can also fill a dual purpose as both mezzanine edge protection and machine guarding.
- A complete mezzanine edge fall prevention system.
- Can be installed from the start of the project.
- As a modification of the X-Guard range, it can also fill a dual purpose as both mezzanine edge protection and machine guarding.
Description

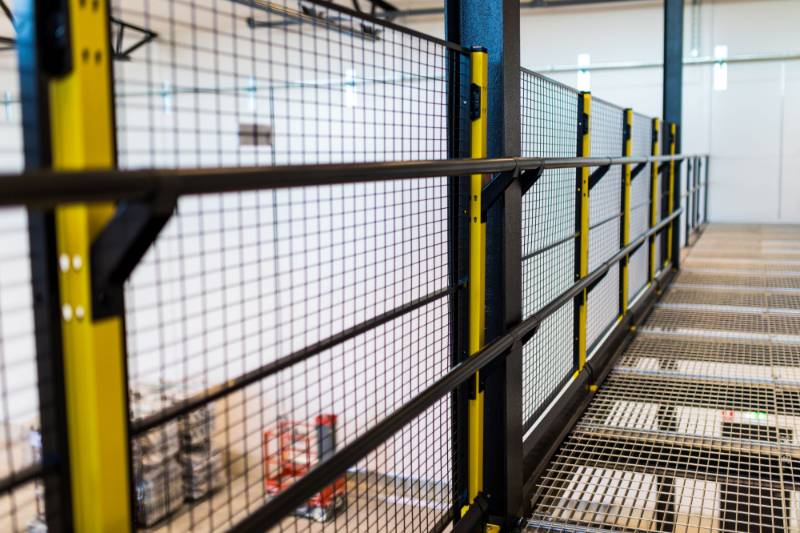

X-Rail fall protection is a modular post and rail system with the option to add infill panels to suit specific project needs.
Available in two heights, X-Rail can be used without panels or with panels - mesh, plastic, sheet metal or sheet metal with window. If no panels are used - handrail, knee rail and kick plate are required but with panel only handrail and kick plate is mandatory.
Features and benefits:
- Tested and approved meet applicable standards.
- Modular from standard parts.
- Captive fixings.
- Quick and easy to assemble and install.
- Can be installed following completion of the mezzanine floor without the need for temporary barriers.
- Tested and approved against DIN EN ISO 14122-3: 2016, BS 6180:2011, AS 1657:2018 and OSHA 1910.29.
X-Rail fall protection is a modular post and rail system with the option to add infill panels to suit specific project needs.
Available in two heights, X-Rail can be used without panels or with panels - mesh, plastic, sheet metal or sheet metal with window. If no panels are used - handrail, knee rail and kick plate are required but with panel only handrail and kick plate is mandatory.
Features and benefits:
- Tested and approved meet applicable standards.
- Modular from standard parts.
- Captive fixings.
- Quick and easy to assemble and install.
- Can be installed following completion of the mezzanine floor without the need for temporary barriers.
- Tested and approved against DIN EN ISO 14122-3: 2016, BS 6180:2011, AS 1657:2018 and OSHA 1910.29.
Color
Black, Yellow, Other
Black, Yellow, Other
Finish
Powder-coated
Powder-coated
Material
Steel, Polyester, Polycarbonate, Plastic
Steel, Polyester, Polycarbonate, Plastic
Shape
Rectangle
Rectangle
Specification
Newels
-
-
Accessories
None., Handrail end plug., Handrail inner corner (with support arm)., Handrail outer corner., Handrail end., Inner corner bracket to kickplate., Shims.
None., Handrail end plug., Handrail inner corner (with support arm)., Handrail outer corner., Handrail end., Inner corner bracket to kickplate., Shims.
Uprights
50 x 50 mm steel, RAL 1018 Zinc Yellow (standard)., 50 x 50 mm steel, RAL 9011 Graphite Black.
50 x 50 mm steel, RAL 1018 Zinc Yellow (standard)., 50 x 50 mm steel, RAL 9011 Graphite Black.
Infills
Mesh, 50 x 30 mm aperture., Sheet metal., Clear plastic., Welding green plastic., Sheet metal with clear window., Sheet metal with welding green window.
None.
Rails
-
-
Handrails
1000 mm Steel handrail, RAL 9011., 1500 mm Steel handrail, RAL 9011.
1000 mm Steel handrail, RAL 9011., 1500 mm Steel handrail, RAL 9011.
Mid rails
None., 1000 mm Steel knee rails, RAL 9011., 1500 mm Steel knee rails, RAL 9011.
1000 mm Steel knee rails, RAL 9011., 1500 mm Steel knee rails, RAL 9011.
Base rails
Steel kickplate, RAL 9011.
Steel kickplate, RAL 9011.
Additional properties
Post length
1400 mm., 2300 mm.
1400 mm., 2300 mm.
Dimensions
As schedule., As drawing.
As schedule., As drawing.
Thickness
155 mm.
155 mm.
Width
250 mm., 400 mm., 500 mm., 600 mm., 700 mm., 800 mm., 900 mm., 1000 mm., 1100 mm., 1200 mm., 1300 mm., 1400 mm., 1500 mm.
-
Colour
RAL 9011 Graphite Black., Custom.
-
Integral accessories
Panel fixings and handrail fittings.
Handrail fittings.
Sustainability data
Contains Red List materials
No
No
Country of material origin
China
China
Country of product manufacture
Sweden
Sweden
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Normalized unit
-
-
Declared unit
No
No
Recycled content
0 %
0 %
