Summary
Adjustable door hinges for slim frames (flush-to-wall doors) or surface-mount (framed or frameless doors).
Adjustable door hinges for slim frames (flush-to-wall doors) or surface-mount (framed or frameless doors).
Application
Internal door hanging, included flush-to-wall doors, frame doors (including slim frames) or frameless doors.
Internal door hanging, included flush-to-wall doors, frame doors (including slim frames) or frameless doors.
Description
Adjustable door hinges for slim frames (flush-to-wall doors) or surface-mount (framed or frameless doors).
Features and benefits:
HES2S - surface-mount hinge:
- 3D adjustment (up to ±3 mm).
- Load capacity: Up to 65 kg (three hinges).
- No mortising required on the frame side.
- Useful on frames that are too thin to mortise.
- The hinge’s arm folds into a socket inside the door when closed, allowing the hinge to be completely hidden when closed and can be used with framed and frameless doors.
HES1F - slim frame hinge:
- Seamlessly integrates into the slim frame for a clean and modern look. The shaft part thickness is only 8 mm.
- Doors will be flush with walls when closed.
- Vertical, horizontal and depth adjustments can be made post installation.
- Easy and quick installation features:
- Can separate into two parts during installation.
- The doors can be provisionally hung on frame before fixing.
Adjustable door hinges for slim frames (flush-to-wall doors) or surface-mount (framed or frameless doors).
Features and benefits:
HES2S - surface-mount hinge:
- 3D adjustment (up to ±3 mm).
- Load capacity: Up to 65 kg (three hinges).
- No mortising required on the frame side.
- Useful on frames that are too thin to mortise.
- The hinge’s arm folds into a socket inside the door when closed, allowing the hinge to be completely hidden when closed and can be used with framed and frameless doors.
HES1F - slim frame hinge:
- Seamlessly integrates into the slim frame for a clean and modern look. The shaft part thickness is only 8 mm.
- Doors will be flush with walls when closed.
- Vertical, horizontal and depth adjustments can be made post installation.
- Easy and quick installation features:
- Can separate into two parts during installation.
- The doors can be provisionally hung on frame before fixing.

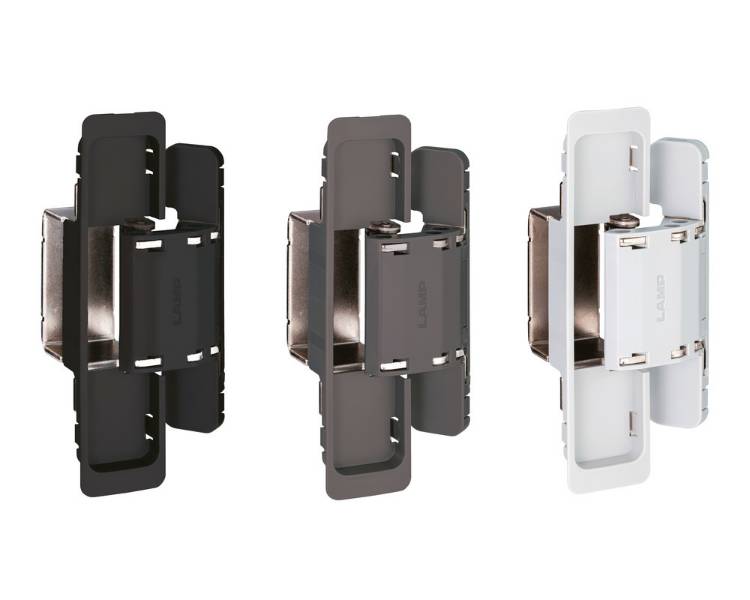

Color
Black, Grey, White
Black, Grey, White
SKU Code
HES1F, HES2S
HES1F, HES2S
Specification
Classification data
Form
Concealed.
Concealed (slim frame).
Size
148 mm (opened to 125°, with cover).
140 mm.
Material and finish
ABS.
ABS.
Colour
Black., Dark grey., Light grey.
Black., White.
Additional properties
Door width
Maximum: 900 mm.
Manufacturer's standard.
Height
Maximum: 2700 mm.
Manufacturer's standard.
Door thickness
38 mm.
Manufacturer's standard.
Maximum weight
50 kg (two hinges); 65 kg (three hinges).
Manufacturer's standard.
Angle
Maximum opening angle: 125°.
Manufacturer's standard.
Accessories
None., LDD-V damper., Other.
None., HES1F-B pre-assembled frame., LDD-V damper., Other., Base spacer HES1F-SP-2530., Base spacer HES1F-SP-2730., Adjustment strike plate HES1F-AST-SL.
