Summary
Low energy consumption electronic pump for water circulation, suitable for commercial heating and air conditioning systems.
-
-
Application
DAB Evoplus circulation pumps are suitable for heating, ventilation and cooling systems in residential and commercial buildings:
- Larger residential homes;
- Hospitals;
- Apartment complexes;
- Schools;
- Elderly homes;
- Office buildings.
-
-
Description

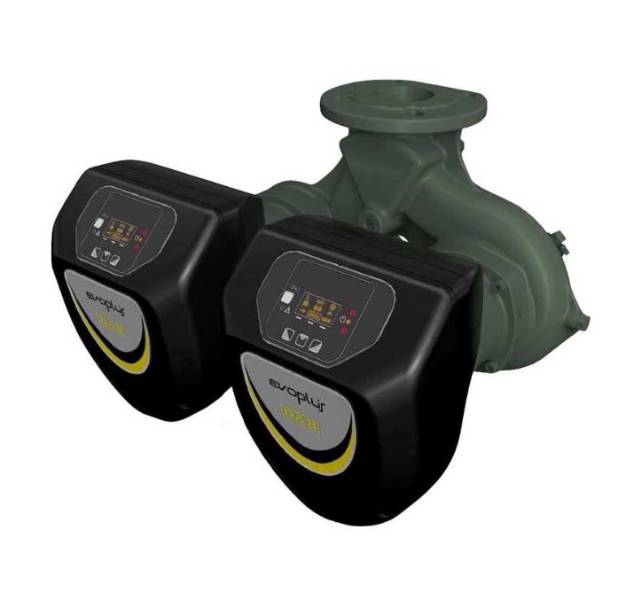

The DAB Evoplus Twin Head Circulator is a circulation pump suited for medium to large-sized systems. Just like other DAB circulation pumps, this circulation pump is equipped with an integrated inverter. This makes the DAB Evoplus up to 60% more energy efficient compared to more conventional circulation pumps.
Features and benefits:
- Operating range: from 3 to 75.6 m³/ h with head up to 18 meters.
- Working pressure: 16 bar (1600 kPa).
- Standard flanges: DN 32, DN 40, DN 50, DN 65, PN 6 / PN 10 / PN 16 (4 holes), DN 80 and DN 100, PN 6 (4 holes).
- Pumped liquid temperature range: from -10 °C to +110 °C.
- Complete with Multi Function module for BMS communication
- Remote monitoring and management capability via DAB D.Connect
-
-
Color
Black, Green
-
-
Finish
Painted
-
-
Material
Cast iron, Plastic, Stainless steel, EPDM, Aluminium
-
-
Shape
Other
-
-
SKU Code
EVOPLUS D 40/220.40 M, EVOPLUS D 40/240.50 M, EVOPLUS D 40/340.65 M, EVOPLUS D 40/360.80 M, EVOPLUS D 40/450.100 M, EVOPLUS D 60/220.40 M, EVOPLUS D 60/240.50 M, EVOPLUS D 60/340.65 M, EVOPLUS D 60/360.80 M, EVOPLUS D 60/450.100 M, EVOPLUS D 80/220.40 M, EVOPLUS D 80/240.50 M, EVOPLUS D 80/340.65 M, EVOPLUS D 80/360.80 M, EVOPLUS D 80/450.100 M, EVOPLUS D 100/220.40 M, EVOPLUS D 100/280.50 M, EVOPLUS D 100/340.65 M, EVOPLUS D 100/360.80 M, EVOPLUS D 100/450.100 M, EVOPLUS D 120/220.32 M, EVOPLUS D 120/250.40 M, EVOPLUS D 120/280.50 M, EVOPLUS D 120/340.65 M, EVOPLUS D 120/360.80 M, EVOPLUS D 120/450.100 M, EVOPLUS D 150/250.40 M, EVOPLUS D 150/280.50 M, EVOPLUS D 150/340.65 M, EVOPLUS D 180/250.40 M
-
-
Specification
Classification data
General requirements
Pumps generally.
-
-
Arrangement
Twin.
-
-
Material
-
-
-
Impeller
Technopolymer.
-
-
Housing
Cast iron.
-
-
Duties
-
-
-
Operation
Duty/standby.
-
-
Resistance
1600 kPa.
-
-
Motor
-
-
-
Nominal voltage
Single phase 230 V a.c.
-
-
Frequency
50 Hz.
-
-
Speed control
Variable.
-
-
Accessories
-
-
-
Additional properties
Seal
EPDM.
-
-
Flange
Stainless steel.
-
-
Support
Stainless steel.
-
-
Motor
Stainless steel.
-
-
Motor cover
Die cast aluminium.
-
-
Ingress protection
IP44.
-
-
Motor type
DAB.
-
-
Current
2 x 1.1 A.
-
-
Power input
2 x 1.1 kW.
-
-
PressureRating
1.6 MPa.
-
-
Fluid temperature range
-10℃ to 110℃.
-
-
Density
998.3 kg/m³.
-
-
Viscosity
1,005 mm²/s.
-
-
Length
340 mm.
-
-
Weight
43.4 kg.
-
-
Connection
DN 65.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
Italy
-
-
Recyclability
This product contains materials that may be recycled
-
-
