Summary

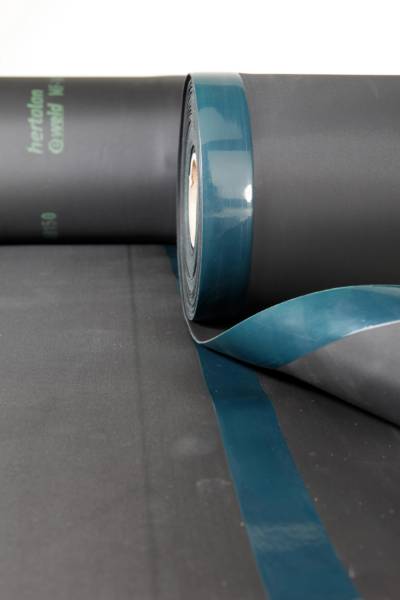

EPDM waterproofing membrane with TPE welding strip.
EPDM waterproofing membrane with TPE welding strip.
Application
Suitable for:
- Forming ballasted, adhered or mechanically fixed, single-ply roofs.
- Use on concrete and timber-based substrates, as well as insulation boards laid over profiled metal sheet and existing bituminous roof coverings.
Suitable for:
- Forming ballasted, adhered or mechanically fixed, single-ply roofs.
- Use on concrete and timber-based substrates, as well as insulation boards laid over profiled metal sheet and existing bituminous roof coverings.
Description
An EDPM waterproof membrane with a TPE (Thermoplastic Elastomer) welding strip along the edges.
Features and benefits:
- Joints are formed by hot-air welding using the TPE strip and the whole roof can be formed without the use of naked flame.
- High tensile strength and elongation at break.
- 100% ozone and UV – radiation resistance.
- Permanent elasticity.
- Resistant to many chemicals (list available on request).
- Resistant to root penetration (FLL approved in accordance with DIN 4102 T7).
- Self extinguishing (NEN 6383).
- Bitumen resistant.
- Excellent temperature stability from -40 to + 120ºC.
- Properly installed, the system has a life of at least 35 years.
An EDPM waterproof membrane with a TPE (Thermoplastic Elastomer) welding strip along the edges.
Features and benefits:
- Joints are formed by hot-air welding using the TPE strip and the whole roof can be formed without the use of naked flame.
- High tensile strength and elongation at break.
- 100% ozone and UV – radiation resistance.
- Permanent elasticity.
- Resistant to many chemicals (list available on request).
- Resistant to root penetration (FLL approved in accordance with DIN 4102 T7).
- Self extinguishing (NEN 6383).
- Bitumen resistant.
- Excellent temperature stability from -40 to + 120ºC.
- Properly installed, the system has a life of at least 35 years.
Color
Black
Black
Finish
Anti-slip
Anti-slip
Material
EPDM, Thermoplastic elastomer (TPE)
EPDM, Thermoplastic elastomer (TPE)
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
1.5 mm
1.5 mm
WarrantyDescription
20 year
20 year
Specification
Classification data
Material
Ethylene propylene diene monomer (EPDM); Thermoplastic polyolefin elastomer (TPE).
Ethylene propylene diene monomer (EPDM); Thermoplastic polyolefin elastomer (TPE).
Standard
To DIN EN 13956.
To DIN EN 13956.
Third-party certification
British Board of Agrément (BBA) Certificate and QA Certificate.
British Board of Agrément (BBA) Certificate and QA Certificate.
Width (minimum)
1.4 m.
1.4 m., 0.7 m.
Thickness (minimum)
1.3 mm., 1.5 mm.
1.3 mm., 1.5 mm.
Colour
Black.
Black.
Accessories
Not required., easy weld CS – 120 mm., easy weld CS – 180 mm., easy weld rainwater outlets., easy weld pre-fabricated corners – external., easy weld pre-fabricated corners – internal., easy weld pre-fabricated rooflight corners., easy weld roof drains., easy weld sealing rings., flash weld., Hertalan flashing.
Not required., easy weld CS – 120 mm., easy weld CS – 180 mm., easy weld rainwater outlets., easy weld pre-fabricated corners – external., easy weld pre-fabricated corners – internal., easy weld pre-fabricated rooflight corners., easy weld roof drains., easy weld sealing rings., flash weld., Hertalan flashing.
Additional properties
UV resistance
100%.
100%.
Fixing type
easy weld Basic, loose laid and bonded application.
easy weld MF, bonded application.
Vapour control layer
Depending on internal conditions a vapour control layer may be required.
Depending on internal conditions a vapour control layer may be required.
Separation layer
Where easy weld is mechanically fixed a separating layer of Hertalan easy tex may be required to prevent the membrane 'drumming' on the substrate or damaging EPS insulation board.
Where easy weld is mechanically fixed a separating layer of Hertalan easy tex may be required to prevent the membrane 'drumming' on the substrate or damaging EPS insulation board.
Sustainability data
Country of material origin
Netherlands
Netherlands
Country of product manufacture
Netherlands
Netherlands
