Summary

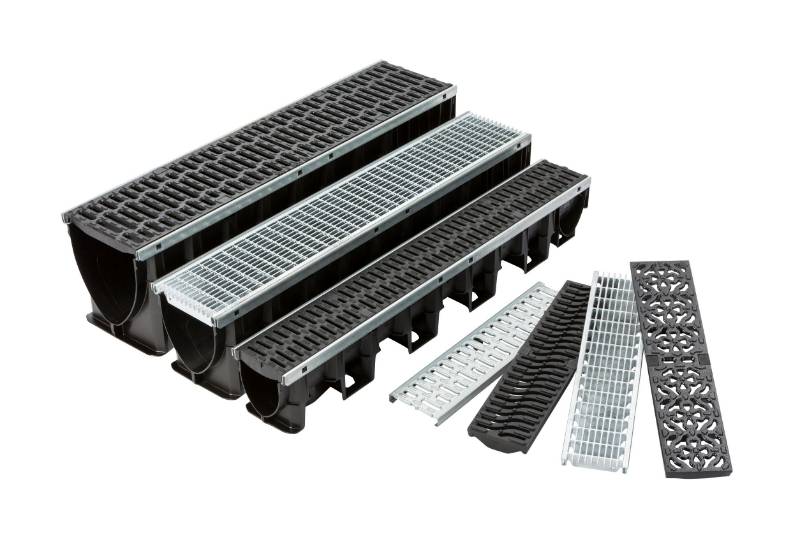

A range of Drainage channel and gratings available in multiple widths.
Shape
Other
-
-
Color
Black
-
-
Material
Plastic
-
-
Size
1000 x 238 x 265 mm, 1000 x 188 x 210 mm, 1000 x 142 x 150 mm, 1000 x 142 x 100 mm, 1000 x 142 x 75 mm
-
-
Specification
Standard
To BS EN 1433:2002.
-
-
Third party certification
CE Approved.
-
-
Material
Plastics.
-
-
Gratings
-
-
-
Colour
Black.
-
-
Load class (minimum)
D 400.
-
-
Integral accessories
11086 M100PPD/HexDrain® PRO 0.0 channel universal closing endcap., 11085 M100PPD/HexDrain® Shallow channel universal closing end cap 075/0100., 11285 M100PPD/HexDrain® Vertical outlet connector Ø110 mm., 11286 M100PPD/HexDrain® Vertical outlet connector Ø160 mm., 32599 Polymer concrete repair kit., 27132 Downpipe connector M100D/DS/PPD Black Ø68 mm., 27138 Downpipe connector M100D/DS/PPD Black 65 mm., 27133 Downpipe connector M100D/DS/PPD Grey Ø68mm., 27139 Downpipe connector M100D/DS/PPD Grey 65 mm., 33401 Universal gully assembly and bucket 601D., 33402 Universal gully assembly no bucket 602D., 33407 Universal gully top assembly 607D., 33605 Universal gully gully base unit 605., 33603 Universal gully intermediate unit 603., 44355 150/225/350 Grating and Frame 400 mm D 400., 7060 KerbDrain® 615 Gully Pot Connector Only., 33606 Universal gully bucket polyethylene 606., 11385 M100PPD/HexDrain® Black plastic sump assembly c/w silt bucket., 11191 MultiDrain® PPD/HexDrain® Roddable foul air trap Ø110 mm., 11192 MultiDrain® PPD/HexDrain® Roddable foul air trap Ø160 mm., 12610 ACO MultiDrain® M100D/PPD Slotted Galvanised Steel Grate 1000 mm A 15., 12611 ACO MultiDrain® M100D/PPD Slotted Galvanised Steel Grate 500 mm A 15., 12666 ACO MultiDrain® M100D/PPD Perforated Galvanised Steel Grate 1000 mm A 15., 12667 ACO MultiDrain® M100D/PPD Perforated Galvanised Steel Grate 500 mm A 15., 132555 ACO MultiDrain® M100D/PPD Intercept Profile Galvanised Steel Grate 1000 mm B 125., 132550 ACO MultiDrain® M100D/PPD Intercept Profile Galvanised Steel Grate 500 mm B 125., 132720 ACO MultiDrain® M100D/PPD Heelguard™ Composite Black Grate 500 mm C 250., 12614 ACO MultiDrain® M100D/PPD Slotted Galvanised Steel Grate 1000 mm C 250., 12615 ACO MultiDrain® M100D/PPD Slotted Galvanised Steel Grate 500 mm C 250., 12656 ACO MultiDrain® M100D/PPD Perforated Galvanised Steel Grate 1000 mm C 250., 12657 ACO MultiDrain® M100D/PPD Perforated Galvanised Steel Grate 500 mm C 250., 132880 ACO MultiDrain® M100D/PPD Heelguard™ Mesh Galvanised Steel Grate 1000 mm C 250., 132881 ACO MultiDrain® M100D/PPD Heelguard™ Mesh Galvanised Steel Grate 500 mm C 250., 23405 ACO MultiDrain® M100D/PPD Heelguard™ Ductile Iron Grate 500 mm D 400., 23406 ACO MultiDrain® M100D/PPD Solid Cover Ductile iron 500 mm D 400., 23408 ACO MultiDrain® M100D/PPD Slotted Ductile Iron Grate 500 mm D 400., 132042 ACO MultiDrain® Freestyle M100D Flag Ductile Iron Grate 500 mm D 400., 132043 ACO MultiDrain® Freestyle M100D Leaf Ductile Iron Grate 500 mm D 400., 132885 ACO MultiDrain® M100D/PPD Heelguard™ Mesh Galvanised Steel Grate 1000 mm D 400., 132886 ACO MultiDrain® M100D/PPD Heelguard™ Mesh Galvanised Steel Grate 500 mm D 400., 23409 ACO MultiDrain® M100D/PPD Heelguard™ ATec Coated Ductile Iron Grate 500 mm D 400., 23417 ACO MultiDrain® M100D/PPD Mosaic Ductile Iron ATec Coated Grate 500 mm D 400., 23415 ACO MultiDrain® Drainlock™ M100D/PPD Security Locking Assembly., 23416 Drainlock™ security key., 1367 Drainlock™ grating lifting key., 23460 ACO MultiDrain® M100D/PPD Brickslot ST Single Slot Offset Galvanised Steel Offset Grate 1000 mm C 250., 23461 ACO MultiDrain® M100D/PPD Brickslot ST Single Slot Offset Galvanised Steel Offset Grate 500 mm C 250., 23465 MultiDrain® M100D/PPD Brickslot single slot offset galvanised steel 1000 mm D 400., 23466 MultiDrain® M100D/PPD Brickslot single slot offset galvanised steel 500 mm D 400.
-
-
Additional properties
Type
Non-sloping.
-
-
Invert depth
56 mm.
-
-
Dimensions
1000 x 142 x 75 mm.
-
-
