Summary

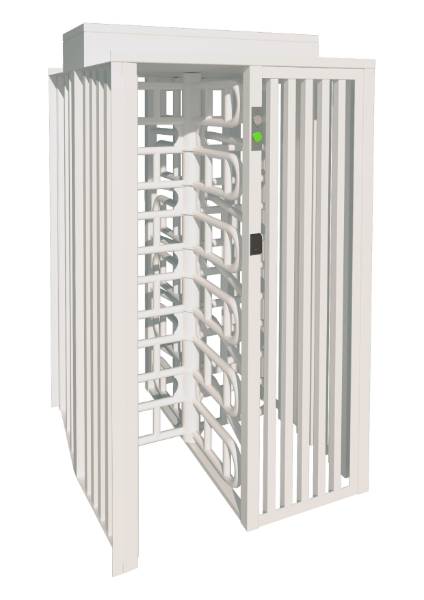

Internal / external full-height security turnstile - LPS 1175 issue 8 certified to withstand three levels of intruder threat and attack.
Internal / external full-height security turnstile - LPS 1175 issue 8 certified to withstand three levels of intruder threat and attack.
Internal / external full-height security turnstile - LPS 1175 issue 8 certified to withstand three levels of intruder threat and attack.
Application
- Petrochemical.
- Civil nuclear.
- Pharmaceuticals.
- Government buildings.
- Energy.
- Data and telecommunications.
- Finance.
- Defence.
- Emergency services.
- Critical infrastructure.
- Petrochemical.
- Civil nuclear.
- Pharmaceuticals.
- Government buildings.
- Energy.
- Data and telecommunications.
- Finance.
- Defence.
- Emergency services.
- Critical infrastructure.
- Petrochemical.
- Civil nuclear.
- Pharmaceuticals.
- Government buildings.
- Energy.
- Data and telecommunications.
- Finance.
- Defence.
- Emergency services.
- Critical infrastructure.
Description
Full-height turnstile for internal or external installation hand-operated electromechanical head, silent and smooth rotation. LPS 1175 issue 8 certified to withstand three levels of intruder threat and attack (Rating B3 (SR2), C5 (SR3), D10 (SR4).
Single 90° left or right handed entry configuration, four rotor elements. Electro-mechanical head mechanism,
comprising:
- Positive action lock which prevents two passages at one time.
- Self centring mechanism to ensure complete rotation of the head to the reset position.
- Anti-backup device preventing reverse rotation once the head has moved past 30° from its rest position.
Delay:
- Ten minutes D10 (SR4).
- Five minutes C5 (SR3).
- Three minutes B3 (SR2).
Full-height turnstile for internal or external installation hand-operated electromechanical head, silent and smooth rotation. LPS 1175 issue 8 certified to withstand three levels of intruder threat and attack (Rating B3 (SR2), C5 (SR3), D10 (SR4).
Single 90° left or right handed entry configuration, four rotor elements. Electro-mechanical head mechanism,
comprising:
- Positive action lock which prevents two passages at one time.
- Self centring mechanism to ensure complete rotation of the head to the reset position.
- Anti-backup device preventing reverse rotation once the head has moved past 30° from its rest position.
Delay:
- Ten minutes D10 (SR4).
- Five minutes C5 (SR3).
- Three minutes B3 (SR2).
Full-height turnstile for internal or external installation hand-operated electromechanical head, silent and smooth rotation. LPS 1175 issue 8 certified to withstand three levels of intruder threat and attack (Rating B3 (SR2), C5 (SR3), D10 (SR4).
Single 90° left or right handed entry configuration, four rotor elements. Electro-mechanical head mechanism,
comprising:
- Positive action lock which prevents two passages at one time.
- Self centring mechanism to ensure complete rotation of the head to the reset position.
- Anti-backup device preventing reverse rotation once the head has moved past 30° from its rest position.
Delay:
- Ten minutes D10 (SR4).
- Five minutes C5 (SR3).
- Three minutes B3 (SR2).
Digital objects
Color
Black, Blue, White, Grey, Green
Black, Blue, White, Grey, Green
Black, Blue, White, Grey, Green
Finish
Painted
Painted
Painted
Material
Steel
Steel
Steel
Shape
Rectangle
Rectangle
Rectangle
Length
1276 mm
1276 mm
1276 mm
Width
1270 mm
1270 mm
1270 mm
Height
2200 mm
2200 mm
2200 mm
Warranty description
Two year
Two year
Two year
SKU Code
RotaSec HS90L
RotaSec HS90L
RotaSec HS90L
Specification
Rotation
Unidirectional.
Unidirectional.
Unidirectional.
Control unit
Required.
Required.
Required.
Leaves and surrounds
Carbon steel post and rail; stainless steel roof.
Carbon steel post and rail; stainless steel roof.
Carbon steel post and rail; stainless steel roof.
Finish as delivered
-
-
-
Applied finish
Powder coated to BS EN 13438 or BS 1722-16.
Powder coated to BS EN 13438 or BS 1722-16.
Powder coated to BS EN 13438 or BS 1722-16.
Additional properties
Configuration
Pass left., Pass right.
Pass left., Pass right.
Pass left., Pass right.
Colour
Green RAL 6005., Black RAL 9005., White RAL 9010., Grey RAL 7004., Blue RAL 5013., Other.
Green RAL 6005., Black RAL 9005., White RAL 9010., Grey RAL 7004., Blue RAL 5013., Other.
Green RAL 6005., Black RAL 9005., White RAL 9010., Grey RAL 7004., Blue RAL 5013., Other.
Power supply
230 V a.c., 115 V a.c.
230 V a.c., 115 V a.c.
230 V a.c., 115 V a.c.
Accessories
None., Down light., Status light., Damped head mechanism., Card reader integration.
None., Down light., Status light., Damped head mechanism., Card reader integration.
None., Down light., Status light., Damped head mechanism., Card reader integration.
Safety
Manufacturer's standard.
Manufacturer's standard.
Manufacturer's standard.
Ingress protection
IPX4.
IPX4.
IPX4.
SecurityRating
C5 (SR3).
B3 (SR2).
D10 (SR4).
Clear passage height
2000 mm.
2000 mm.
2000 mm.
Clear passage width
500 mm.
500 mm.
500 mm.
Weight
595 kg.
400 kg.
630 kg.
Passage rate
12–17 passages per minute
12–17 passages per minute
12–17 passages per minute
