Compare variants
Summary

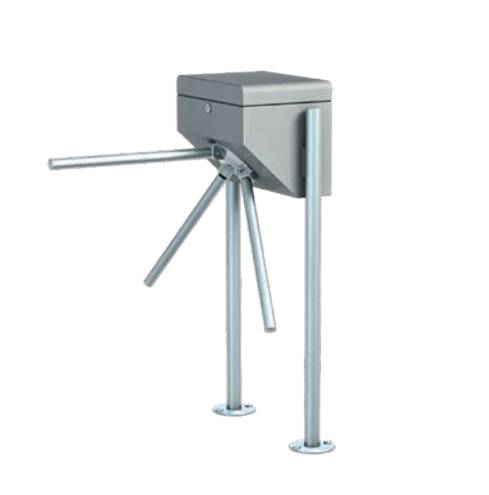

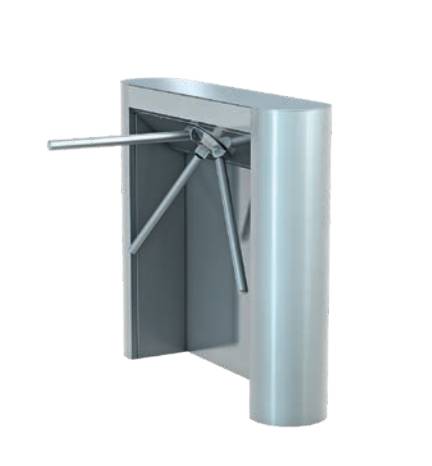

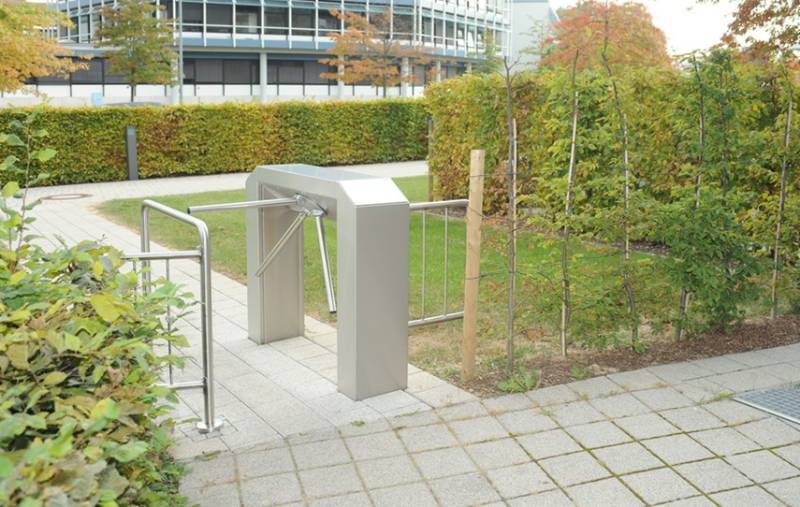

Stainless steel tripod barriers.
Stainless steel tripod barriers.
Stainless steel tripod barriers.
Application
- Office reception foyers.
- Administrative buildings, public authorities and industrial premises.
- Sports and leisure facilities.
- Paid access areas.
- Suitable for indoor and outdoor installation.
- Office reception foyers.
- Administrative buildings, public authorities and industrial premises.
- Sports and leisure facilities.
- Paid access areas.
- Suitable for indoor and outdoor installation.
- Office reception foyers.
- Administrative buildings, public authorities and industrial premises.
- Sports and leisure facilities.
- Paid access areas.
- Suitable for indoor and outdoor installation.
Description
High-quality stainless steel tripod barriers.
Features and benefits:
- Foldable bars and patented automatic reset.
- Modular single and multiple installation.
- Comfortable passage thanks to endpoint locking.
- Minimal energy consumption due to low-energy drive.
- Marginal risk of injury due to low-energy drive.
High-quality stainless steel tripod barriers.
Features and benefits:
- Foldable bars and patented automatic reset.
- Modular single and multiple installation.
- Comfortable passage thanks to endpoint locking.
- Minimal energy consumption due to low-energy drive.
- Marginal risk of injury due to low-energy drive.
High-quality stainless steel tripod barriers.
Features and benefits:
- Foldable bars and patented automatic reset.
- Modular single and multiple installation.
- Comfortable passage thanks to endpoint locking.
- Minimal energy consumption due to low-energy drive.
- Marginal risk of injury due to low-energy drive.
Digital objects
Color
Silver
Silver
Silver
Finish
Satin
Satin
Satin
Material
Stainless steel, Aluminium
Stainless steel, Aluminium
Stainless steel, Aluminium
Length
1170 mm, 488 mm
1170 mm, 488 mm
1170 mm, 488 mm
Width
770 mm, 810 mm
770 mm, 810 mm
770 mm, 810 mm
Height
1020 mm, 1100 mm
1020 mm, 1100 mm
1020 mm, 1100 mm
SKU Code
TPB-E01, TPB-C01, TPB-S03
TPB-E01, TPB-C01, TPB-S03
TPB-E01, TPB-C01, TPB-S03
Specification
Classification data
Turnstile type
Tripod arms.
Tripod arms.
Tripod arms.
Rotation
Manufacturer's standard.
Manufacturer's standard.
Manufacturer's standard.
Control unit
TPB-C01.
TPB-E01.
TPB-S03.
Finish
Satin stainless steel.
Satin stainless steel.
Satin stainless steel.
Additional properties
Operation
Type 2.
Type 0., Type 1.1., Type 1.2., Type 2.
Type 2.
Colour
Silver.
Silver.
Silver.
Aluminium housing painted in RAL 9006.
Aluminium housing painted in RAL 9006.
Fixing
Base frame.
Base frame.
Base frame.
Collapsible bars
Not required., Required.
Not required., Required.
Not required., Required.
Accessories
-
-
-
Swivel arm height
900 mm.
900 mm.
900 mm.
Power supply
110–230 V a.c., 50/ 60 Hz.
110–230 V a.c., 50/ 60 Hz.
110–230 V a.c., 50/ 60 Hz.
Power consumption
10 VA.
10 VA.
10 VA.
Ingress protection (IP) rating
Housing: IP 33.
Components conducting supply voltage: IP 43.
Components conducting supply voltage: IP 43.
Manufacturer's standard.
Housing: IP 33.
Components conducting supply voltage: IP 43.
Components conducting supply voltage: IP 43.
Capacity
45 per minute.
45 per minute.
45 per minute.
Dimensions
1020 x 1170 x 770 mm
1020 x 1170 x 770 mm
1100 x 810 mm
Material
Stainless steel AISI 304 housing.
Stainless steel AISI 304 housing.
Aluminium housing.
Type
Housing and base columns in a single unit (open design).
Housing and base columns enclosed with additional back plate made of
stainless steel AISI 304.
stainless steel AISI 304.
Housing with base column and flange plate.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Germany
Germany
Germany
Country of product manufacture
Germany
Germany
Germany
Material
Stainless steel, Aluminium
Stainless steel, Aluminium
Stainless steel, Aluminium
