Compare variants

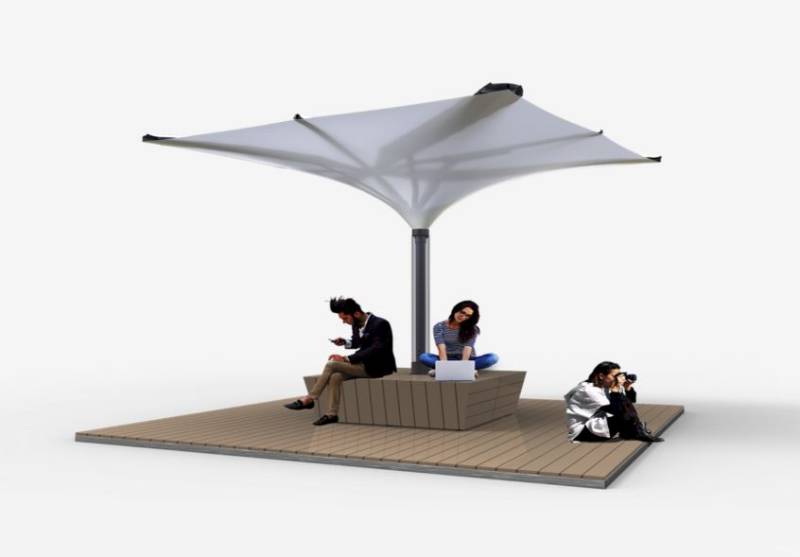

Round tulip-shaped solar umbrella canopy.
Round tulip-shaped solar umbrella canopy.
Circle
Circle
Black, White, Silver
Black, White, Silver
Powder-coated
Powder-coated
Aluminium, Polytetrafluoroethylene, PTFE, PVC
Aluminium, Polytetrafluoroethylene, PTFE, PVC
5000 x 5000 x 4350 mm, 4000 x 4000 x 4350 mm
5000 x 5000 x 4350 mm, 4000 x 4000 x 4350 mm
Specification
Round with solar tulip canopy.
Round with solar tulip canopy.
-
-
4000 x 4000 mm.
5000 x 5000 mm.
Height: Closed: 4350 mm, open: 4350 mm.
Height: Closed: 4350 mm, open: 4350 mm.
-
-
Aluminium.
Aluminium.
Powder coated.
Powder coated.
Black RAL 9005., Silver RAL 9006., White RAL 9010.
Black RAL 9005., Silver RAL 9006., White RAL 9010.
MDT-tex® 480 (PTFE)., MDT-tex® 480 (PVC)., MDT-tex® 680 (PVC).
MDT-tex® 480 (PTFE)., MDT-tex® 480 (PVC)., MDT-tex® 680 (PVC).
Not required., LED lighting (12 V, 4 W lamps).
Not required., LED lighting (12 V, 4 W lamps).
Water drainage above ground., Water drainage underground (collected in a cistern).
Water drainage above ground., Water drainage underground (collected in a cistern).
Not required., Protective sleeve with telescopic pole., Scent emission., Seating., Transport case., USB Plugs (4x 5 V, 2 A)., Water filtration system.
Not required., Protective sleeve with telescopic pole., Scent emission., Seating., Transport case., USB Plugs (4x 5 V, 2 A)., Water filtration system.
Additional properties
-
-
Up to 60 km/h.
Up to 60 km/h.
Not required., Digital., Dispersion dye., Screen.
Not required., Digital., Dispersion dye., Screen.
Rectangular aluminium sections of 40 x 20 x 3 mm.
Rectangular aluminium sections of 40 x 20 x 3 mm.
Round aluminium section, 80-100 x 3 mm.
Round aluminium section, 80-100 x 3 mm.
4 m Diameter: 2450 mm (closed); 5 m Diameter: 1950 mm (closed).
4 m Diameter: 2450 mm (closed); 5 m Diameter: 1950 mm (closed).
Frame base (with concrete blocks)., In ground tube with water drain and foldable adapter., Steel ground pin.
Frame base (with concrete blocks)., In ground tube with water drain and foldable adapter., Steel ground pin.
Hand crank., Motor operated (Dunker GR63X55).
Hand crank., Motor operated (Dunker GR63X55).
High efficiency mono crystalline Si Semi-flex modules.
High efficiency mono crystalline Si Semi-flex modules.
4 m Diameter: 100-600 Wh; 5 m Diameter: 150-950 Wh.
4 m Diameter: 100-600 Wh; 5 m Diameter: 150-950 Wh.
4 m Diameter: 1320 x 138 mm; 5 m Diameter: 1080 x 140 mm.
4 m Diameter: 1320 x 138 mm; 5 m Diameter: 1080 x 140 mm.
4 m Diameter: 90 Ah; 5 m Diameter: 130 Ah.
4 m Diameter: 90 Ah; 5 m Diameter: 130 Ah.
12 V.
12 V.
