Summary

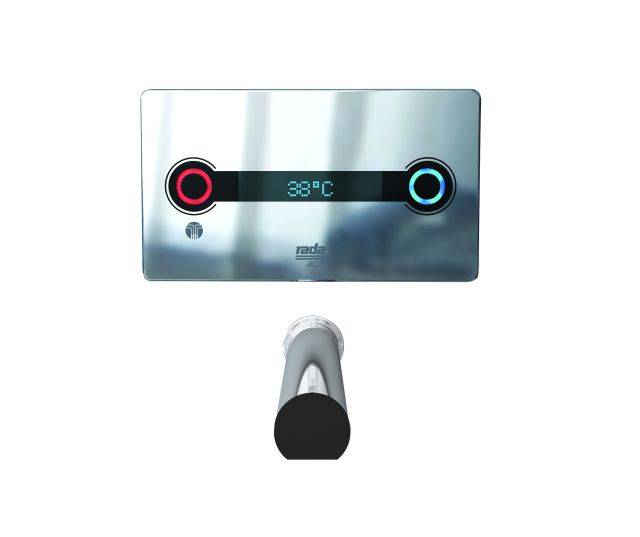

Concealed digital mixing valve for washbasins.
Concealed digital mixing valve for washbasins.
Application
For wash basins.
For wash basins.
Description
Concealed digital mixing valve for washbasins.
Features and benefits:
- Offers programmable maximum, minimum and default temperatures, duty flush and thermal disinfection with temperature logging and data logging capabilities.
- Supplied complete with programmable software, power supply, isolators, non return valves and filters.
- Panel mounted control panel offering access to valve, featuring infra-red non-touch controls for temperature adjustment and programming.
- Panel mounted spout offering user activated on/ off control or timed flow.
- Exceeds HTM64 requirements.
- Incorporates T-logic digital intelligence, allowing the user to operate, communicate and exchange information with the digital mixing valve to achieve safety, hygiene and control.
- Programmable flow times and temperatures and three optional pre-programmed modes.
- Panel mounted temperature control panel.
- Incorporates T-logic digital intelligence.
Environment:
Note, certain types of fluorescent and low voltage lighting use high frequency lamps that can interfere with the infrared system used in the control panel. It is recommended that standard switch-start fluorescent lighting is used.
Concealed digital mixing valve for washbasins.
Features and benefits:
- Offers programmable maximum, minimum and default temperatures, duty flush and thermal disinfection with temperature logging and data logging capabilities.
- Supplied complete with programmable software, power supply, isolators, non return valves and filters.
- Panel mounted control panel offering access to valve, featuring infra-red non-touch controls for temperature adjustment and programming.
- Panel mounted spout offering user activated on/ off control or timed flow.
- Exceeds HTM64 requirements.
- Incorporates T-logic digital intelligence, allowing the user to operate, communicate and exchange information with the digital mixing valve to achieve safety, hygiene and control.
- Programmable flow times and temperatures and three optional pre-programmed modes.
- Panel mounted temperature control panel.
- Incorporates T-logic digital intelligence.
Environment:
Note, certain types of fluorescent and low voltage lighting use high frequency lamps that can interfere with the infrared system used in the control panel. It is recommended that standard switch-start fluorescent lighting is used.
Digital objects
Finish
Chrome
Chrome
Material
Brass, Stainless steel, Plastic
Brass, Stainless steel, Plastic
Warranty description
Two year, Five year
Two year, Five year
SKU Code
1.1664.001
1.1664.001
Specification
Approval
Water Regulations Advisory Scheme (WRAS) and BEAB approved.
Water Regulations Advisory Scheme (WRAS) and BEAB approved.
Form
Digital mixing valve.
Digital mixing valve.
Materials
-
-
Body
PC with in mould decoration (control panel cover), ABS (mixing unit enclosure), DZR brass, stainless steel and engineering plastic (integral components)
PC with in mould decoration (control panel cover), ABS (mixing unit enclosure), DZR brass, stainless steel and engineering plastic (integral components)
Finish and colour
Chrome plated.
Chrome plated.
Flow rate (maximum)
6 L/min.
6 L/min.
Additional properties
Spout length
190 mm.
225 mm.
Dimensions
135 x 236 x 9.5 mm.
135 x 236 x 9.5 mm.
Installation depth
75 mm.
75 mm.
RelativeHumidity
95%.
95%.
Load (maximum)
20 W (PSU).
20 W (PSU).
Connections
15 mm compression., Flat faced union.
15 mm compression., Flat faced union.
NominalSupplyVoltage
100–230 V.
100–230 V.
Ambient temperature
1-40°C.
1-40°C.
Ingress protection (IP) rating
IP24.
IP24.
Frequency
50–60 Hz.
50–60 Hz.
Sustainability data
Country of product manufacture
United Kingdom
United Kingdom
