Summary

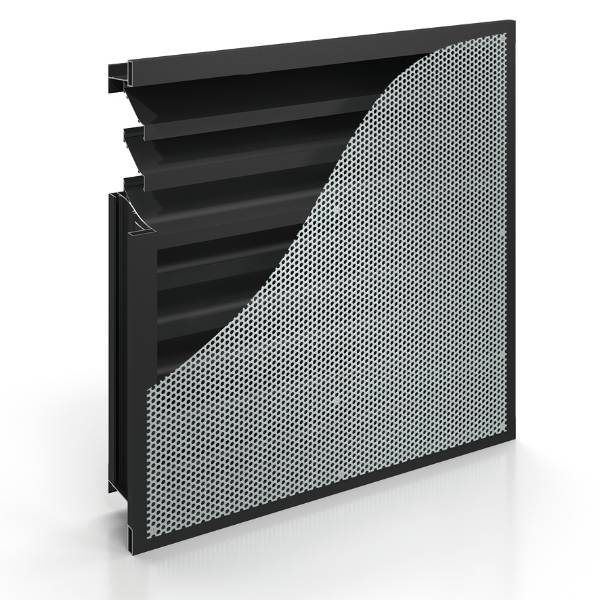

Perform™ ventilation louvres with horizontal blades concealed behind an attractive perforated skin. Offers good airflow and weather performance. Classified as C 3 up to 3.0 m/s.
Perform™ ventilation louvres with horizontal blades concealed behind an attractive perforated skin. Offers good airflow and weather performance. Classified as C 3 up to 3.0 m/s.
Color
Silver, Other
Silver, Other
Finish
Mill, Anodized, Powder-coated
Mill, Anodized, Powder-coated
Material
Aluminium
Aluminium
Length
191 mm
191 mm
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Two year
Two year
Specification
Material
Perforated sheet: 3 mm-thick, aluminium alloy 1050 H14/H24 as standard. All other components to be one-piece members extruded from aluminium alloy 6063-T6(nominal minimum thickness to be 1.73 mm & 1.98 mm for blades, 2.54 mm for heads, cills, jambs & mullions).
Perforated sheet: 3 mm-thick, aluminium alloy 1050 H14/H24 as standard. All other components to be one-piece members extruded from aluminium alloy 6063-T6(nominal minimum thickness to be 1.73 mm & 1.98 mm for blades, 2.54 mm for heads, cills, jambs & mullions).
Finish
Mill finish perforated screen/ matt black louvre., Anodized (clear) perforated screen/ matt black louvre., Anodized (colour) perforated screen/ matt black louvre., PPC (matt), colour perforated screen/ matt black louvre., PPC (gloss), colour perforated screen/ matt black louvre.
Mill finish perforated screen/ matt black louvre., Anodized (clear) perforated screen/ matt black louvre., Anodized (colour) perforated screen/ matt black louvre., PPC (matt), colour perforated screen/ matt black louvre., PPC (gloss), colour perforated screen/ matt black louvre.
Colour
As Finish.
As Finish.
Construction
Supplied as modules, mechanically assembled using stainless steel fasteners.
Supplied as modules, mechanically assembled using stainless steel fasteners, and complete with a 25 mm glazing frame, suitable for fitting into glazing sockets or use in Structural Silicone Glazing (SSG) system.
Weather performance
-
-
Water penetration class (minimum)
To BS EN 13030, class C up to 3.0 m/s.
To BS EN 13030, class C up to 3.0 m/s.
Discharge loss coefficient (minimum)
To BS EN 13030, class 3: Airflow coefficient Ce (entry): 0.260; Cd (discharge): 0.253.
To BS EN 13030, class 3: Airflow coefficient Ce (entry): 0.260; Cd (discharge): 0.253.
Louvre configuration
-
-
Number of banks
One.
One.
Blade orientation
Horizontal.
Horizontal.
Blade pitch
100 mm.
100 mm.
Blade angle
38°.
38°.
Accessories
None., Bird/ vermin guard, galvanized steel welded mesh., Bird/ vermin guard, expanded aluminium welded mesh., Insect mesh, PVC-coated fibreglass., Louvred door(s)., Volume control dampers., Snap-on cover plate to close-off louvre frame.
None., Bird/ vermin guard, galvanized steel welded mesh., Bird/ vermin guard, expanded aluminium welded mesh., Insect mesh, PVC-coated fibreglass., Louvred door(s)., Volume control dampers., Snap-on cover plate to close-off louvre frame.
Additional properties
Blanking panels
Not required., Single-skin aluminium panels, standard powder-coated black to one face only., Single-skin aluminium panels, powder-coated black to both sides., Single-skin aluminium panels, powder-coated to match louvre., Single-skin aluminium panels, mill finish., Insulated panels incorporating A1-classified non-combustible stone wool core., Insulated panels, extruded polystyrene core.
Not required., Single-skin aluminium panels, standard powder-coated black to one face only., Single-skin aluminium panels, powder-coated black to both sides., Single-skin aluminium panels, powder-coated to match louvre., Single-skin aluminium panels, mill finish., Insulated panels incorporating A1-classified non-combustible stone wool core., Insulated panels, extruded polystyrene core.
Sustainability data
Contains Red List materials
No
No
Material
Aluminium
Aluminium
Recycled content
55 %
55 %
