Summary

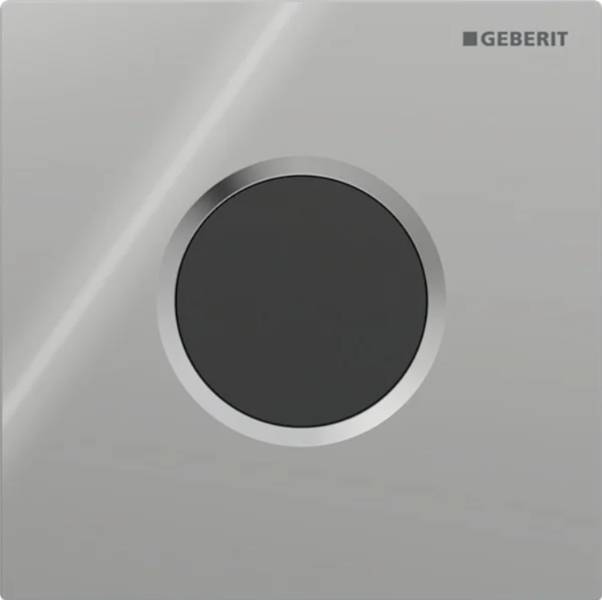

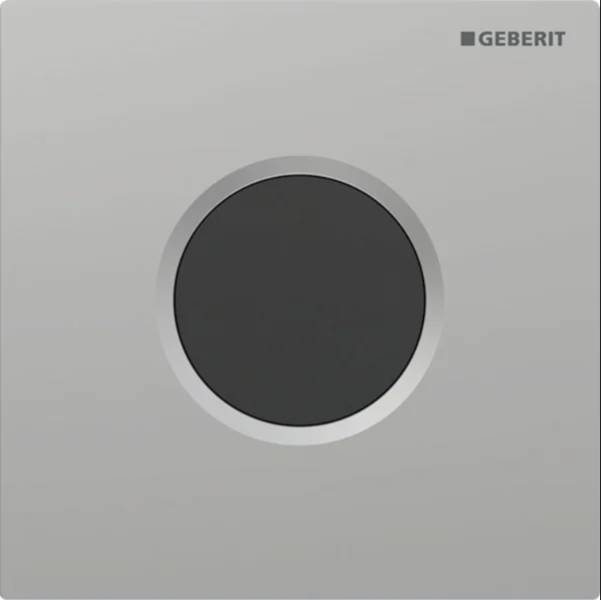

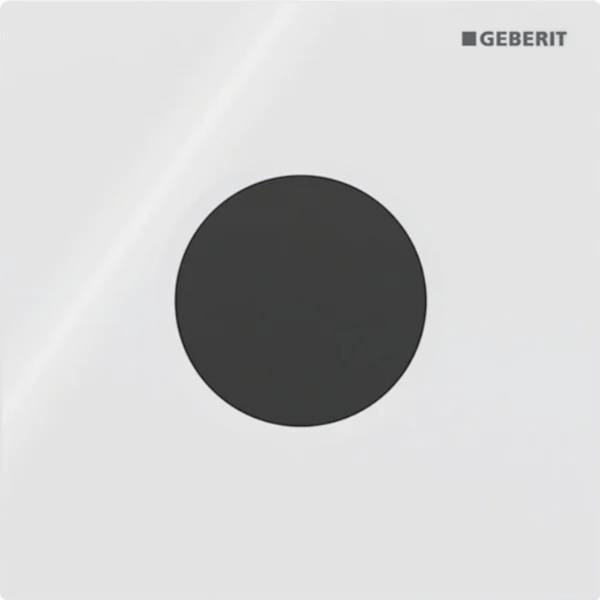

Geberit urinal flush control with electronic flush actuation with type 01 cover plate.
Geberit urinal flush control with electronic flush actuation with type 01 cover plate.
Geberit urinal flush control with electronic flush actuation with type 01 cover plate.
Color
White, Silver
White, Silver
White, Silver
Finish
Matt, Gloss
Matt, Gloss
Matt, Gloss
Material
Stainless steel
Stainless steel
Stainless steel
Shape
Square
Square
Square
Length
130 mm
130 mm
130 mm
Width
130 mm
130 mm
130 mm
Height
9 mm
9 mm
9 mm
Specification
Flush volume
0.3 L/s (without flow limiter); 0.18 L/s (with flow limiter).
0.3 L/s (without flow limiter); 0.18 L/s (with flow limiter).
0.3 L/s (without flow limiter); 0.18 L/s (with flow limiter).
Flush rate
Interval flush, adjustment range 1–168 h.
Interval flush, factory setting 24 h.
Interval flush, adjustment range 1–168 h.
Interval flush, factory setting 24 h.
Interval flush, adjustment range 1–168 h.
Interval flush, factory setting 24 h.
Materials
-
-
-
Body
Die-cast zinc.
Die-cast zinc.
Die-cast zinc.
Finish and colour
White.
-
-
Operation
Infrared sensor.
Infrared sensor.
Infrared sensor.
Controller
Mains-operated.
Mains-operated.
Mains-operated.
Finish and colour
-
Gloss chrome-plated.
-
Finish and colour
-
-
Matt chrome.
Additional properties
Ingress protection
IP45.
IP45.
IP45.
Nominal voltage
110–240 V.a.c.
110–240 V.a.c.
110–240 V.a.c.
Operating voltage
4.5 V.d.c.
4.5 V.d.c.
4.5 V.d.c.
Frequency
50–60 Hz.
50–60 Hz.
50–60 Hz.
Sustainability data
Material
Stainless steel
Stainless steel
Stainless steel
