Compare variants
Summary
Moisture-resistant, fire-rated plasterboard.
Moisture-resistant, fire-rated plasterboard.
Application
Suitable for use in areas where increased fire resistance is required, and moisture exposure is possible.
Suitable for use in areas where increased fire resistance is required, and moisture exposure is possible.
Description

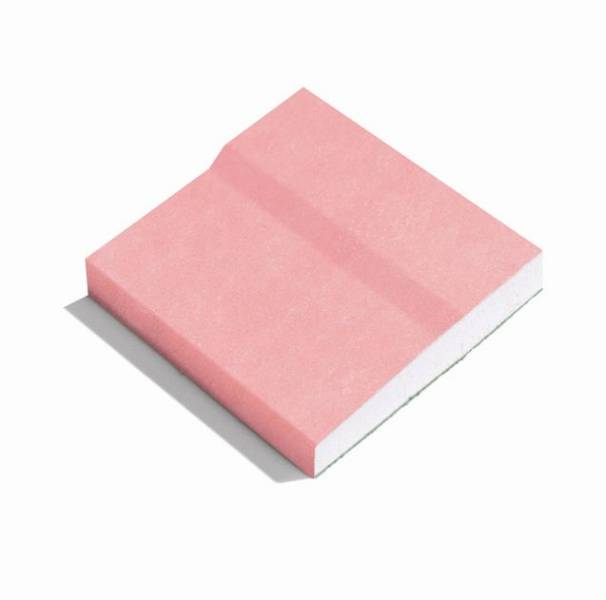

GTEC Fire MR Board plasterboard provides superior fire and moisture resistance for stud partitions, wall lining and ceiling systems. Achieve 60 minutes' fire resistance from a 15 mm single layer partition system. It complies with BS 1230 Type 5 and BS EN 520 Types D, F and H2.
Features and benefits:
- 60 minutes' fire resistance from a 15 mm single-layer partition system.
- Achieves Building Regulations Approved Document B (fire) compliance.
- Improved durability in humid environments.
- The board complies with BS 1230 type 5 and BS EN 520:2004+A1:2009 types D, F and H2.
Technical characteristics:
- Fire, acoustic and duty performance dependent on the whole system. See Siniat Drywall Manual for Siniat system performances.
GTEC Fire MR Board plasterboard provides superior fire and moisture resistance for stud partitions, wall lining and ceiling systems. Achieve 60 minutes' fire resistance from a 15 mm single layer partition system. It complies with BS 1230 Type 5 and BS EN 520 Types D, F and H2.
Features and benefits:
- 60 minutes' fire resistance from a 15 mm single-layer partition system.
- Achieves Building Regulations Approved Document B (fire) compliance.
- Improved durability in humid environments.
- The board complies with BS 1230 type 5 and BS EN 520:2004+A1:2009 types D, F and H2.
Technical characteristics:
- Fire, acoustic and duty performance dependent on the whole system. See Siniat Drywall Manual for Siniat system performances.
Material
Gypsum
Gypsum
Shape
Rectangle
Rectangle
Length
2400 mm
2400 mm
Width
1200 mm
1200 mm
Height
12.5 mm, 15 mm
12.5 mm, 15 mm
Specification
Classification data
Standard
To BS 1230 type 5 and BS EN 520:2004+A1:2009 types D, F and H2.
To BS 1230 type 5 and BS EN 520:2004+A1:2009 types D, F and H2.
Core
Bonded with starch.
Bonded with starch.
Paper facings
Bonded with starch.
Bonded with starch.
Thickness (nominal)
12.5 mm.
15 mm.
Edge profile
Tapered.
Tapered.
Additional properties
Size:
2400 x 1200 x 12.5 mm.
2400 x 1200 x 15.0 mm.
Weight
29.7 kg.
36.0 kg.
Reaction to fire
Euroclass A2-s1, d0.
Euroclass A2-s1, d0.
MoistureContent
<2%.
<2%.
Mass
10.3 kg/m².
12.5 kg/m².
ThermalConductivity
0.25 W/m·K.
0.25 W/m·K.
Thermal resistance
0.050 m²K/W.
0.060 m²K/W.
Moisture resistance
Type H2: <10% water absorption.
Type H2: <10% water absorption.
Water resistance
µ = 10.
µ = 10.
Breaking load
Longitudinal: ≥550 N; transverse: ≥210 N.
Longitudinal: ≥650 N; transverse: ≥210 N.
Colour
Pink on the front and green on the back.
Pink on the front and green on the back.
Material:
Gypsum.
Gypsum.
Jointing
The board should be jointed and finished with GTEC Jointing systems.
The board should be jointed and finished with GTEC Jointing systems.
Fixing
GTEC self-drilling., GTEC self-tapping., GTEC high-thread screws.
GTEC self-drilling., GTEC self-tapping., GTEC high-thread screws.
