Summary

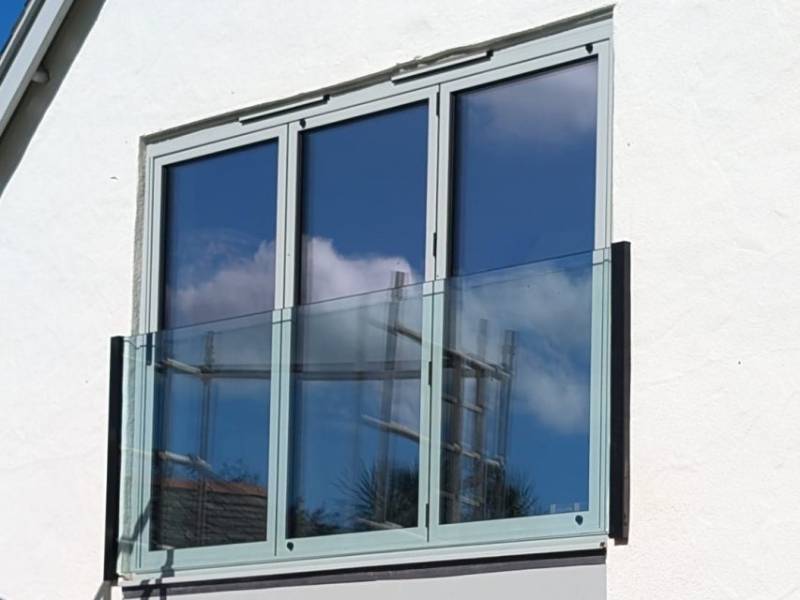

Glass Juliet balcony kits load-tested up to 0.74 kN/m, compliant with domestic and light commercial edge protection regulations, available in standard or Class A fire-rated versions.
Glass Juliet balcony kits load-tested up to 0.74 kN/m, compliant with domestic and light commercial edge protection regulations, available in standard or Class A fire-rated versions.
Application
Compliant with domestic and light commercial edge protection regulations, including those in high rise applications requiring a Class A fire-rated system.
Compliant with domestic and light commercial edge protection regulations, including those in high rise applications requiring a Class A fire-rated system.
Description
Glass Juliet balcony kits compliant with domestic and light commercial edge protection regulations, available in standard or Class A fire-rated versions.
Features and benefits:
- Designed to be fast and easy to install.
- Load-tested to 0.74 kN/m into concrete or steel substrate, suitable for glass 1100 mm high.
- Compliant with domestic and light commercial edge protection regulations, including those in high rise applications requiring a Class A fire-rated system.
- Features an aluminium support block to ensure safe, reliable glass retention.
- Supplied as a kit containing all glass fittings.
- Channels enable fascia or reveal fixing.
- Exclusive support block ensures secure, reliable glass retention.
- Choice of channel colour (silver, black or grey).
- Anodized to 25 µm for high resistance to corrosion.
- Standard kit can accommodate glass thicknesses of either 13.5 mm or 17.5–21.5 mm, with all glass fittings delivered in a single box for ease of storage, handling and transportation.
- The Class A fire-rated kit includes all standard components as well as fire-rated sealant and two 3 m-long aluminium trims for the top & bottom of the glass.
- Note that the Class A fire-rated kit requires Pyroguard 19 mm-thick laminated glass, to ensure the installed system is fully fire-rated.
Note that EazyJuliet is not suitable for indoor swimming pool environments.
Glass Juliet balcony kits compliant with domestic and light commercial edge protection regulations, available in standard or Class A fire-rated versions.
Features and benefits:
- Designed to be fast and easy to install.
- Load-tested to 0.74 kN/m into concrete or steel substrate, suitable for glass 1100 mm high.
- Compliant with domestic and light commercial edge protection regulations, including those in high rise applications requiring a Class A fire-rated system.
- Features an aluminium support block to ensure safe, reliable glass retention.
- Supplied as a kit containing all glass fittings.
- Channels enable fascia or reveal fixing.
- Exclusive support block ensures secure, reliable glass retention.
- Choice of channel colour (silver, black or grey).
- Anodized to 25 µm for high resistance to corrosion.
- Standard kit can accommodate glass thicknesses of either 13.5 mm or 17.5–21.5 mm, with all glass fittings delivered in a single box for ease of storage, handling and transportation.
- The Class A fire-rated kit includes all standard components as well as fire-rated sealant and two 3 m-long aluminium trims for the top & bottom of the glass.
- Note that the Class A fire-rated kit requires Pyroguard 19 mm-thick laminated glass, to ensure the installed system is fully fire-rated.
Note that EazyJuliet is not suitable for indoor swimming pool environments.
Color
Silver, Black, Clear, Grey
Silver, Black, Clear, Grey
Finish
Anodized, Satin, Brushed
Anodized, Satin, Brushed
Material
Aluminium, Glass
Aluminium, Glass
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
68 mm
68 mm
Height
1100 mm
1100 mm
Specification
Classification data
System performance
Loading requirements: To BS 6180, up to 0.74 kN line load.
Loading requirements: To BS 6180, up to 0.74 kN line load.
Infills
-
Requires 1100 mm-high Pyroguard laminated glass, 19 mm thick.
Fixing to parent structure
Channel and bolt fixings.
Channel and bolt fixings.
Additional properties
Glazing clamp kit
To suit 13.5 mm glass infill., To suit 17.5–21.5 mm glass infill.
Manufacturer's standard, to suit 19 mm glass infill.
Span
-
-
Reaction to fire
Manufacturer's standard.
To EN 13501-1, A2-s1, d0.
Mounting
Fascia mounted to concrete., Fascia mounted to steel., Side mounted to concrete., Side mounted to steel.
Fascia mounted to concrete., Fascia mounted to steel., Side mounted to concrete., Side mounted to steel.
Channel
Aluminium, anodized to 25 µm., Aluminium, brushed black., Aluminium, grey.
Aluminium, anodized to 25 µm., Aluminium, brushed black., Aluminium, grey.
Integral accessories
-
Sealant.
Two x 3 m fire-rated trims.
Two x 3 m fire-rated trims.
Sustainability data
Contains Red List materials
No
No
Material
Aluminium, Glass
Aluminium, Glass
Recyclability
Aluminium can be recycled.
Aluminium can be recycled.
