Summary

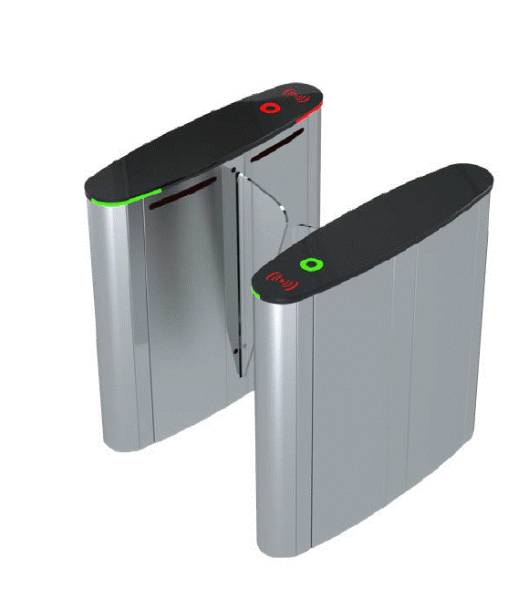

Security speed gates.
-
-
Application

Suitable for advanced security in areas such as:

  • Construction sites.
  • Stadiums.
  • Government buildings.
  • Public transport areas.
  • Retail outlets.
  • Gyms.


-
-
Description

Speed gates, designed with a variety of security features to prevent un-authorised access.


Features and benefits:

  • Able to handle high flow rates in public areas.
  • Security measure features such as anti-tailgating, piggybacking and wrong way passage.
  • Easily integrate with existing security systems to ensure setup is achieved quickly and smoothly.
  • Maximum stability and low maintenance.
  • Work well in an emergency situations, being able to respond to emergency alarms, holding the doors permanently open or switching to manual mode, so they can be operated without the need for access cards.
  • Mean time to repair (MTTR): <30 minutes.
-
-
Product certifications
-
-
Color
Black, Bronze, Gold, Clear, Beige, Blue, Brown, Copper, Cream, Green, Ivory, Grey, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
-
-
Finish
Galvanized, Powder-coated
-
-
Material
Steel, Stainless steel, Glass
-
-
Length
1336 mm, 998 mm, 1024 mm, 1000 mm
-
-
Width
171 mm, 254 mm, 110 mm, 132 mm
-
-
Height
1018 mm, 971 mm, 1754 mm, 1319 mm
-
-
Warranty description
Five year
-
-

Specification

Classification data
Certification
CE marked and TÜV certified.
-
-
Accessories
None., Logo on glass and acrylic barrier wings., Access controller integration brackets., Stainless steel base plate., Back-up battery.
-
-

Additional properties

Interfaces
Logic controlled interface.
-
-
Rotation
Bidirectional.
-
-
Materials
Galvanized coated steel frame and stainless steel housing panels, with tempered glass barrier wings and lid.
-
-
Passage width
500 mm., 900 mm.
-
-
Door wings
8/ 10 mm tempered glass., Acrylic.
-
-
Size
254 x 971 x 998 mm.
-
-
Weight
85 kg.
-
-
Power supply
100–240 V a.c., 50/60 Hz.
-
-
Voltage
24 V d.c.
-
-
MeanTimeBetweenFailure
Eight million cycles.
-
-
Ingress protection (IP) rating
Cabinet IP44.
-
-
Operating temperature range
0 to +70°C.
-
-
Standby power
8 W.
-
-
LED pictograms
LED lights indicates the operating status of the turnstile in both directions.
-
-
Mode
Controlled, Free; Locked.
-
-
ReleaseTime
5, 10, 15 and 20 seconds.
-
-
Access control
Controlled by any kind of access control system through dry contact or COM ports.
-
-
Security
Audible alarm only without blocking the lane.
Wings close immediately and block the lane* without an audible alarm.
Wings close immediately and block the lane* + audible alarm sounds.
-
-
Emergency release
The gate opens the barrier wings (fail-safe). During power-failure, the mechanism and barrier wings do not operate (fail-locked). Optional battery unit in order to open the wings during a power failure.
The gate resets itself automatically when the emergency
alarm stops or the power is switched back on.
-
-
Colour/ Finish
Stainless steel., Black, stainless steel., Bronze, stainless steel., Gold, stainless steel.
-
-
