Summary
Free unit ceiling tile manufactured with a glass wool core.
Free unit ceiling tile manufactured with a glass wool core.
Free unit ceiling tile manufactured with a glass wool core.
Application
For applications where the installation of a wall-to-wall ceiling is not possible.
For applications where the installation of a wall-to-wall ceiling is not possible.
For applications where the installation of a wall-to-wall ceiling is not possible.
Description
Ecophon Focus Edge™ 500 is a system used as free hanging unit(s) in applications where the installation of a wall-to-wall ceiling is not possible. The system consists of profiles and corners which together form a well designed perimeter trim.
Features and benefits:
- Well designed perimeter trim.
- Profile in extruded aluminium and corners in cast zinc.
- Slight vertical sloped moulding for free hanging units.
- CE marked according to the European harmonized standard EN 13964:2014.
Ecophon Focus Edge™ 500 is a system used as free hanging unit(s) in applications where the installation of a wall-to-wall ceiling is not possible. The system consists of profiles and corners which together form a well designed perimeter trim.
Features and benefits:
- Well designed perimeter trim.
- Profile in extruded aluminium and corners in cast zinc.
- Slight vertical sloped moulding for free hanging units.
- CE marked according to the European harmonized standard EN 13964:2014.
Ecophon Focus Edge™ 500 is a system used as free hanging unit(s) in applications where the installation of a wall-to-wall ceiling is not possible. The system consists of profiles and corners which together form a well designed perimeter trim.
Features and benefits:
- Well designed perimeter trim.
- Profile in extruded aluminium and corners in cast zinc.
- Slight vertical sloped moulding for free hanging units.
- CE marked according to the European harmonized standard EN 13964:2014.
Product certifications
Digital objects
Color
White
White
White
Finish
Galvanized
Galvanized
Galvanized
Material
High-density glass wool, Aluminium, Steel, Zinc
High-density glass wool, Aluminium, Steel, Zinc
High-density glass wool, Aluminium, Steel, Zinc
Shape
Square, Rectangle
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm
600 mm, 1200 mm
600 mm, 1200 mm
Width
600 mm, 1200 mm
600 mm, 1200 mm
600 mm, 1200 mm
Height
20 mm, 25 mm
20 mm, 25 mm
20 mm, 25 mm
Warranty description
Ten year
Ten year
Ten year
SKU Code
M165
M210
M211
Specification
Classification data
Ceiling support
Connect™ T24 grid.
Connect™ T24 grid.
Connect™ T24 grid.
Support fasteners
Connect™ adjustable wire hanger and hanger clips.
Connect™ adjustable wire hanger and hanger clips.
Connect™ adjustable wire hanger and hanger clips.
Ceiling type
Focus Edge™ 500.
Focus Edge™ 500.
Focus Edge™ 500.
Thickness
20 mm.
20 mm.
20 mm., 25 mm.
Finish as delivered
Akutex™ FT.
Akutex™ FT.
Akutex™ FT.
Colour
White.
White.
White.
Edge treatment
Extruded aluminium.
Extruded aluminium.
Extruded aluminium.
Edge profile
Connect Edge 500 profile.
Connect Edge 500 profile.
Connect Edge 500 profile.
System accessories
-
-
-
Additional properties
Corners
Cast zinc.
Cast zinc.
Cast zinc.
Size (length x width)
600 x 600 mm., 1200 x 600 mm., 1200 x 1200 mm.
600 x 600 mm., 1200 x 600 mm., 1200 x 1200 mm.
600 x 600 mm., 1200 x 600 mm., 1200 x 1200 mm.
Installation

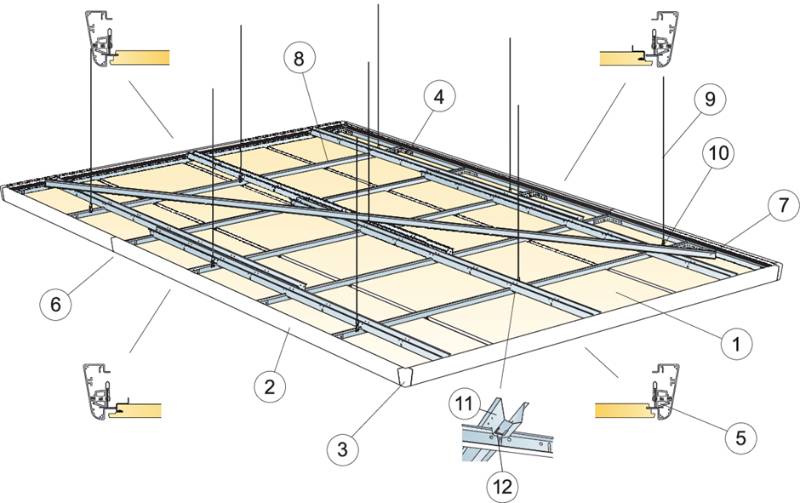

M165 - suspended island.

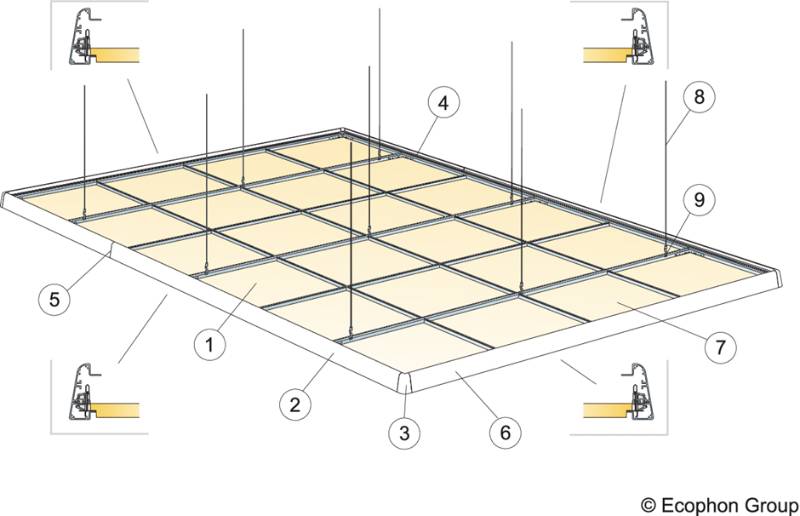

M210 - suspended island.

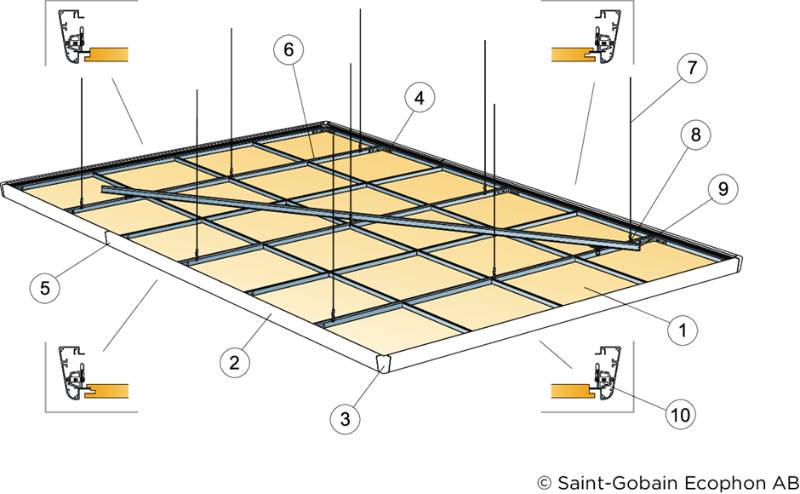

M211 - suspended island.
Reaction to fire
To EN 13501-1, A1.
To EN 13501-1, A1.
To EN 13501-1, A1.
Core material
Glass wool.
Glass wool.
Glass wool.
Standard
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Sweden
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Sweden
Material
High-density glass wool, Aluminium, Steel, Zinc
High-density glass wool, Aluminium, Steel, Zinc
High-density glass wool, Aluminium, Steel, Zinc
Recyclability
Fully recyclable
Fully recyclable
Fully recyclable
Expected Life
50 year
50 year
50 year
