Summary

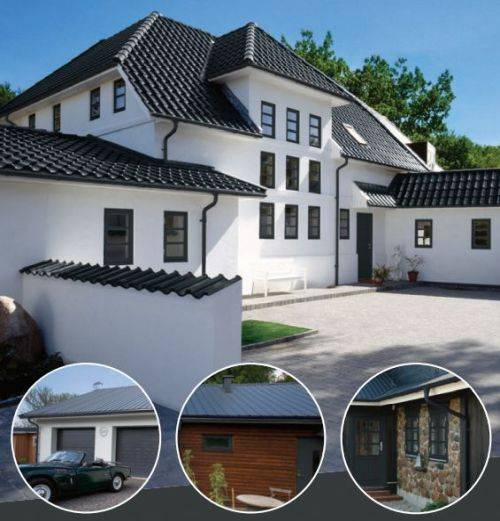

Rainline rainwater downpipes and fittings finished in anthracite grey (RAL 7016).
Rainline rainwater downpipes and fittings finished in anthracite grey (RAL 7016).
Rainline rainwater downpipes and fittings finished in anthracite grey (RAL 7016).
Application
For use in varying applications, including:
- Large or small roof areas.
- Classic or contemporary buildings.
- Domestic or commercial use.
When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.
For use in varying applications, including:
- Large or small roof areas.
- Classic or contemporary buildings.
- Domestic or commercial use.
When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.
For use in varying applications, including:
- Large or small roof areas.
- Classic or contemporary buildings.
- Domestic or commercial use.
When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.
Description
Rainline rainwater downpipes and fittings finished in anthracite grey (RAL 7016).
Features and benefits:
- Low carbon footprint and low overall environmental impact.
- Durable and flexible.
- Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
- Minimal maintenance required.
- Highly resistant to vandal attack.
- UV stable.
- Available in three sizes, two lengths, and a range of colour options. Consult manufacturer's literature for details.
- Quick and easy to install.
- Supplied with a 15-year warranty.
- Manufactured in accordance with BS EN 12056-3: 2000.
Rainline rainwater downpipes and fittings finished in anthracite grey (RAL 7016).
Features and benefits:
- Low carbon footprint and low overall environmental impact.
- Durable and flexible.
- Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
- Minimal maintenance required.
- Highly resistant to vandal attack.
- UV stable.
- Available in three sizes, two lengths, and a range of colour options. Consult manufacturer's literature for details.
- Quick and easy to install.
- Supplied with a 15-year warranty.
- Manufactured in accordance with BS EN 12056-3: 2000.
Rainline rainwater downpipes and fittings finished in anthracite grey (RAL 7016).
Features and benefits:
- Low carbon footprint and low overall environmental impact.
- Durable and flexible.
- Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
- Minimal maintenance required.
- Highly resistant to vandal attack.
- UV stable.
- Available in three sizes, two lengths, and a range of colour options. Consult manufacturer's literature for details.
- Quick and easy to install.
- Supplied with a 15-year warranty.
- Manufactured in accordance with BS EN 12056-3: 2000.
Color
Grey
Grey
Grey
Finish
Gloss
Gloss
Gloss
Material
Steel
Steel
Steel
Shape
Circle
Circle
Circle
Length
3000 mm
3000 mm
3000 mm
WarrantyDescription
15 year
15 year
15 year
Specification
Classification data
Material
Steel.
Steel.
Steel.
Size (nominal)
100 x 2500 mm., 100 x 3000 mm.
75 x 2500 mm., 75 x 3000 mm.
87 x 2500 mm., 87 x 3000 mm.
Finish and colour
-
-
-
Finish
Painted, RAL gloss finish.
Painted, RAL gloss finish.
Painted, RAL gloss finish.
Colour
Anthracite grey.
Anthracite grey.
Anthracite grey.
Integral accessories
Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes are available dependent on size.
Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes are available dependent on size.
Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes are available dependent on size.
Additional properties
Type
100 mm downpipe, 2.5 m length (SROR25100AG)., 100 mm downpipe, 3 m length (SROR3100AG).
75 mm downpipe, 2.5 m length (SROR2575AG)., 75 mm downpipe, 3 m length (SROR375AG).
87 mm downpipe, 2.5 m length (SROR2587AG)., 87 mm downpipe, 3 m length (SROR387AG).
Bends
BK 45° conical pipe bend, 100 mm (BK45100AG)., BK 70° conical pipe bend, 100 mm (BK70100AG)., BK 85° conical pipe bend, 100 mm (BK85100AG)., BM 45° pipe bend with socket, 100 mm (BM45100AG)., BM 70° pipe bend with socket, 100 mm (BM70100AG)., BM 85° pipe bend with socket, 100 mm (BM85100AG).
BK 45° conical pipe bend, 75 mm (BK4575AG)., BK 70° conical pipe bend, 75 mm (BK7075AG)., BK 85° conical pipe bend, 75 mm (BK8575AG)., BM 45° pipe bend with socket, 75 mm (BM4575AG)., BM 70° pipe bend with socket, 75 mm (BM7075AG)., BM 85° pipe bend with socket, 75 mm (BM8575AG).
BK 45° conical pipe bend, 87 mm (BK4587AG)., BK 70° conical pipe bend, 87 mm (BK7087AG)., BK 85° conical pipe bend, 87 mm (BK8587AG)., BM 45° pipe bend with socket, 87 mm (BM4587AG)., BM 70° pipe bend with socket, 87 mm (BM7087AG)., BM 85° pipe bend with socket, 87 mm (BM8587AG).
Intermediate pipes
100 mm MST intermediate pipe, 1 m (MST1100AG)., As drawing., Contractors choice.
75 mm MST intermediate pipe, 0.5 m (MST0575AG)., 75 mm MST intermediate pipe, 1 m (MST175AG)., As drawing., Contractor's choice.
87 mm MST intermediate pipe, 0.5 m (MST0587AG)., 87 mm MST intermediate pipe, 1 m (MST187AG)., As drawing., Contractors choice.
Offset
SOKN one-piece offset, 100 mm (SOKN100AG)., As drawing., Contractors choice.
SOKN one-piece offset, 75 mm (SOKN75AG)., As drawing., Contractor's choice.
SOKN one-piece offset, 87 mm (SOKN87AG)., As drawing., Contractors choice.
Access pipe
100 mm MSTRA rod access pipe, 1 m (MSTRA100AG)., As drawing., Contractors choice.
75 mm MSTRA rod access pipe, 1 m (MSTRA75AG)., As drawing., Contractor's choice.
87 mm MSTRA rod access pipe, 1 m (MSTRA87AG)., As drawing., Contractors choice.
Branches
GROR pipe branch, 100 mm (GROR100AG)., As drawing., Contractors choice.
GROR pipe branch, 75 mm (GROR75AG)., As drawing., Contractor's choice.
GROR pipe branch, 87 mm (GROR87AG)., As drawing., Contractors choice.
Connector
SRORM pipe connector, 100 mm (SRORM100AG)., As drawing., Contractors choice.
SRORM pipe connector, 75 mm (SRORM75AG)., As drawing., Contractor's choice.
SRORM pipe connector, 87 mm (SRORM87AG)., As drawing., Contractors choice.
Shoes
BUTK drain shoe, 100 mm (BUTK100AG)., UTK pipe shoe, 100 mm (UTK100AG)., As drawing., Contractors choice.
BUTK drain shoe, 75 mm (BUTK75AG)., UTK pipe shoe, 75 mm (UTK75AG)., As drawing., Contractor's choice.
BUTK drain shoe, 87 mm (BUTK87AG)., UTK pipe shoe, 87 mm (UTK87AG), As drawing., Contractors choice.
Hopper
VATKL large water hopper, 100 mm (VATKL100AG)., VATKS half round water hopper, 100 mm (VATKS100AG)., As drawing., Contractors choice.
As drawing., Contractor's choice.
VATKL large water hopper, 87 mm (VATKL87AG)., VATKS half round water hopper, 87 mm (VATKS87AG)., As drawing., Contractors choice.
Diverters
FUTK adjustable diverter, 100 mm (FUTK100AG)., As drawing., Contractors choice.
FUTK adjustable diverter, 75 mm (FUTK75AG)., As drawing., Contractor's choice.
FUTK adjustable diverter, 87 mm (FUTK87AG)., As drawing., Contractors choice.
Sliding pipe
PRT sliding pipe, 100 mm (PRT100AG)., As drawing., Contractors choice.
PRT sliding pipe, 75 mm (PRT75AG)., As drawing., Contractor's choice.
PRT sliding pipe, 87 mm (PRT87AG)., As drawing., Contractors choice.
Brackets
SST spike for pipe bracket, 125 mm (SST125)., SST spike for pipe bracket, 175 mm (SST175)., SST spike for pipe bracket, 250 mm (SST250)., SST spike for pipe bracket, 300 mm (SST300)., SSVU universal pipe bracket, 100 mm (SSVU100AG)., As drawing., Contractors choice.
SST spike for pipe bracket, 125 mm (SST125)., SST spike for pipe bracket, 175 mm (SST175)., SST spike for pipe bracket, 250 mm (SST250)., SST spike for pipe bracket, 300 mm (SST300)., SSVU universal pipe bracket, 75 mm (SSVU75AG)., As drawing., Contractor's choice.
SST spike for pipe bracket, 125 mm (SST125)., SST spike for pipe bracket, 175 mm (SST175)., SST spike for pipe bracket, 250 mm (SST250)., SST spike for pipe bracket, 300 mm (SST300)., SSVU universal pipe bracket, 87 mm (SSVU87AG)., As drawing., Contractors choice.
Standard
To BS EN 12056-3: 2000.
To BS EN 12056-3: 2000.
To BS EN 12056-3: 2000.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Sweden
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Sweden
Recyclability
Fully recycleable
Fully recycleable
Fully recycleable
Recycled content
30 %
30 %
30 %
