Summary

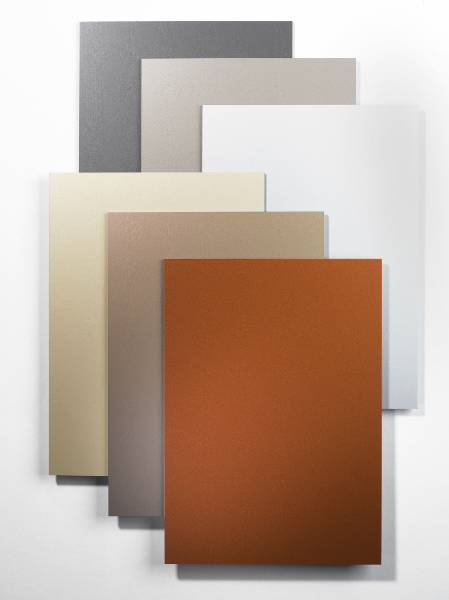

A non-combustible A1 rated solid aluminium sheet used for rainscreen cladding and other architectural applications
A non-combustible A1 rated solid aluminium sheet used for rainscreen cladding and other architectural applications
Color
Bronze, Brown, Copper, Gold, Grey, Orange, Silver, White
Bronze, Brown, Copper, Gold, Grey, Orange, Silver, White
Finish
Anodized, Gloss, Metallic, Matt, PVdF
Anodized, Gloss, Metallic, Matt, PVdF
Material
Aluminium
Aluminium
Shape
Rectangle, Square, Other
Rectangle, Square, Other
Length
Bespoke
Bespoke
Width
1000 mm, 1250 mm, 1500 mm
1000 mm, 1250 mm, 1500 mm
WarrantyDescription
20 year
20 year
Additional properties
Weight
8.1 kg/m².
8.1 kg/m².
Performance characteristics – tensile strength (minimum)
To EN 485-2, 145—185 MPa.
To EN 1396, 140—185 N/mm².
Elongation to break
To EN 485-2, ≥5%.
To EN 1396, ≥5%.
Coefficient of thermal expansion
2.4 mm/m at 100 degree temperature difference.
2.4 mm/m at 100 degree temperature difference.
Surface
Real anodized.
PVDF.
Fire classification
To EN 13501-1, Class A1.
To EN 13501-1, Class A1.
Stress grade
To EN 485-2, ≥110.
To EN 1396, ≥110.
Fixing type
Hook-on bolt., Tray panel., Riveted.
Hook-on bolt., Tray panel., Riveted.
Gloss level
To EN 13523-2, depending on colour.
To EN 13523-2, 25—40%.
Coating
Real anodized.
To EN 13523-1, 28—45 µm (PVDF).
Aluminium Anodised
To EN ISO 7599, 20 µm.
Not applicable.
Colour
Clear natural anodized., Gold 10., Bronze 20., Copper 30., Copper 60.
Pure white., Light grey., Anthracite grey., Basalt grey., Platinum grey., Silver metallic., Smoke silver metallic., Grey metallic., Champagne metallic., Bronze metallic., Siena copper metallic.
External Face
To BS EN 13501-1, Class A1.
To BS EN 13501-1, Class A1.
Internal Face
To BS EN 13501-1, Class A1.
To BS EN 13501-1, Class A1.
Samples required
Product samples., Mock-ups or prototypes.
Product samples., Mock-ups or prototypes.
Material
Aluminium alloy EN AW-3003, (AlMg1), temper H24.
Aluminium alloy EN AW-3003, (AlMg1), temper H44.
Standard
To EN 13523-1, EN 1396, EN 13523-2, EN ISO 7599 and EN 485-2.
To EN 13523-1, EN 1396, EN 13523-2, EN ISO 7599 and EN 485-2.
Width
100 mm., 1250 mm., 1500 mm.
100 mm., 1250 mm., 1500 mm.
Sheet thickness
3 mm.
3 mm.
Sustainability data
Recyclability
100%
100%
Recycled content
10 %
10 %
