Summary

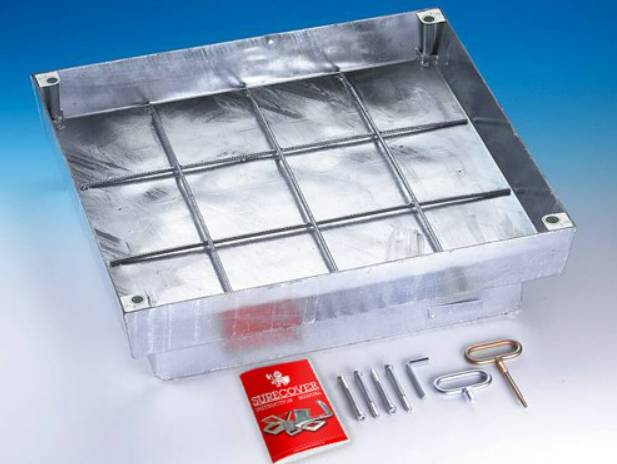

Heavy duty galvanized steel floor access doors. Tapered design allows easy opening. Virtually invisible when installed. EPDM seal. Robust steel mesh reinforcement.
Heavy duty galvanized steel floor access doors. Tapered design allows easy opening. Virtually invisible when installed. EPDM seal. Robust steel mesh reinforcement.
Heavy duty galvanized steel floor access doors. Tapered design allows easy opening. Virtually invisible when installed. EPDM seal. Robust steel mesh reinforcement.
Shape
Rectangle, Square
Rectangle, Square
Rectangle, Square
Finish
Galvanized
Galvanized
Galvanized
Material
Steel, Rubber
Steel, Rubber
Steel, Rubber
Size
400 x 400 mm, 500 x 500 mm, 600 x 400 mm, 600 x 600 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 600 mm, 1000 x 800 mm, 1000 x 1000 mm
400 x 400 mm, 500 x 500 mm, 600 x 400 mm, 600 x 600 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 600 mm, 1000 x 800 mm, 1000 x 1000 mm
400 x 400 mm, 500 x 500 mm, 600 x 400 mm, 600 x 600 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 600 mm, 1000 x 800 mm, 1000 x 1000 mm
Specification
Configuration
Lift out.
Lift out.
Hinged and gas strut assisted.
Finish
Galvanized.
Galvanized.
Galvanized.
Load class (minimum)
Not required., 250 kN.
Not required., 400 kN.
Not required., 400 kN.
Frame or support
Galvanized steel.
Galvanized steel.
Galvanized steel.
Additional properties
Size:
400 x 400 mm., 500 x 500 mm., 600 x 400 mm., 800 x 800 mm., 1000 x 800 mm.
400 x 400 mm, 500 x 500 mm, 600 x 400 mm, 1000 x 800 mm
600 x 600 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 600 mm, 1000 x 1000 mm
FireRating
Not required.
Not required.
Not required.
Infill depth
102 mm.
102 mm.
102 mm.
Cover depth
205 mm.
230 mm.
230 mm.
CoverMaterial
Galvanized steel.
Galvanized steel.
Galvanized steel.
Hardware
Stainless steel screws.
Stainless steel screws.
Stainless steel screws.
Locking
-
-
-
Seal
EPDM rubber.
EPDM rubber.
EPDM rubber.
Reinforcement
Steel mesh.
Steel mesh.
Steel mesh.
