Summary
Wall fixed damage resistant toilet pan, standard height, with polished resin for gloss effect.
Wall fixed damage resistant toilet pan, standard height, with polished resin for gloss effect.
Wall fixed damage resistant toilet pan, standard height, with polished resin for gloss effect.
Color
White, Blue, Grey
White, Blue, Grey
White, Blue, Grey
Finish
Polished, Gloss
Polished, Gloss
Polished, Gloss
Material
Polymer, Resin
Polymer, Resin
Polymer, Resin
Shape
Other
Other
Other
Length
500 mm
500 mm
500 mm
Width
397 mm
397 mm
397 mm
Height
427 mm
427 mm
427 mm
Specification
Standard
To BS EN 997, Class 2.
To BS EN 997, Class 2.
To BS EN 997, Class 2.
Form
Wall-mounted, washdown.
Wall-mounted, washdown.
Wall-mounted, washdown.
Connecting dimensions
To BS EN 33.
To BS EN 33.
To BS EN 33.
Pan height
427 mm.
427 mm.
427 mm.
Materials
-
-
-
Body
Polymer resin.
Polymer resin.
Polymer resin.
Finish and colour
Polished.
Polished.
Polished.
Water supply, outlet and seat holes
-
-
-
Water supply
Back inlet.
Back inlet.
Back inlet.
Outlet
Horizontal back outlet.
Horizontal back outlet.
Horizontal back outlet.
Seat holes
None, integral seating rim.
None, integral seating rim.
None, integral seating rim.
Integral accessories
-

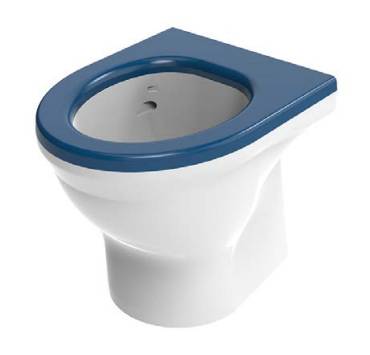

Integral seat, blue.
-
Integral accessories
-
-

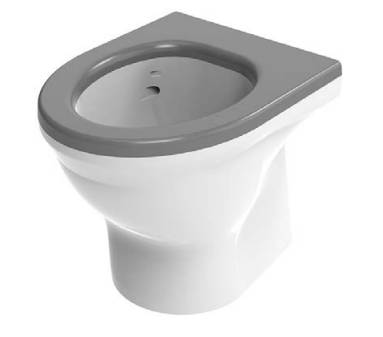

Integral seat, grey.
Additional properties
Declaration of conformity
BS 476 Part 6: Fire propagation & surface spread of flame; ISO EN 19712-3-2007 rated 5 for durability; BREEAM rated; CE marked.
BS 476 Part 6: Fire propagation & surface spread of flame; ISO EN 19712-3-2007 rated 5 for durability; BREEAM rated; CE marked.
BS 476 Part 6: Fire propagation & surface spread of flame; ISO EN 19712-3-2007 rated 5 for durability; BREEAM rated; CE marked.
Fixing options
M10.
M10.
M10.
Weight
46 kg.
47 kg.
47 kg.
Sustainability data
Material
Polymer, Resin
Polymer, Resin
Polymer, Resin
