Compare variants
Clear all
Acera - Clay Facing Brick
Verified 3 months ago
Vandersanden Brick
WF
nbs-symbol
Add to spec
Acera - Clay Facing Brick
Verified 3 months ago
Vandersanden Brick
DF
nbs-symbol
Add to spec
Summary

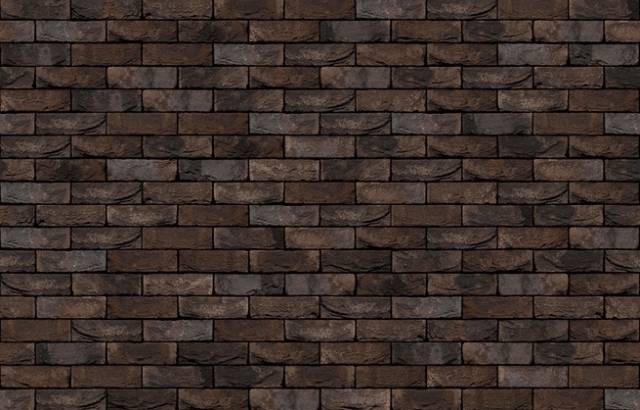

A brown facing brick with multi-shades of dark brown, blue and anthracite.
A brown facing brick with multi-shades of dark brown, blue and anthracite.
Third party certification
ISO 14001 Environmental Management Systems
ISO14001 certificate
ISO 14001 Environmental Management Systems
ISO14001 certificate
Color
Brown, Blue, Black
Brown, Blue, Black
Finish
Sanded, Coated
Sanded, Coated
Material
Clay
Clay
Shape
Rectangle
Rectangle
Length
215 mm
215 mm
Width
103 mm
103 mm
Height
66 mm
66 mm
Specification
Standard
To BS EN 771-1.
To BS EN 771-1.
Brick description
Facing brick.
Facing brick.
Appearance
Brown, dark brown, blue and anthracite, with a sanded-coated and grained structure.
Brown, dark brown, blue and anthracite, with a sanded-coated and grained structure.
Work size (length x width x height)
209 x 101 x 51 mm.
215 x 103 x 66 mm.
Tolerances
-
-
Mean value
T2.
T2.
Range
R1.
R1.
Compressive strength
-
-
Mean compressive strength (minimum)
≥10 N/mm².
≥10 N/mm².
Durability designation
F2.
F2.
Density
-
-
Gross dry
1780 kg/m³.
1780 kg/m³.
Net dry
1800 kg/m³.
1800 kg/m³.
Water absorption
≤15% m/md.
≤15% m/md.
Configuration
Frogged.
Frogged.
Thermal conductivity
≤0.49 W/m·K.
≤0.49 W/m·K.
Water vapour permeability
5/10 µ.
5/10 µ.
Reaction to fire
Class A1 to BS EN 13501-1.
Class A1 to BS EN 13501-1.
Additional properties
Active soluble salts
S2.
S2.
Jointing
Beige., Dark grey., Grey., Joint free., White.
Beige., Dark grey., Grey., Joint free., White.
Sustainability data
Country of product manufacture
Netherlands
Netherlands
Recyclability
Recyclable
Recyclable
