Summary
A tough one piece channel drainage system.
-
-
Application
- Public landscaping.
- Car parking.
- HGV parking.
- Petrol station forecourts.
- Light industrial.
- Heavy industrial.
- Public highways.
- Distribution yards.
- Airport (airside).
- Port and dock sides.
- SuDs.
- Security areas.
-
-
Description

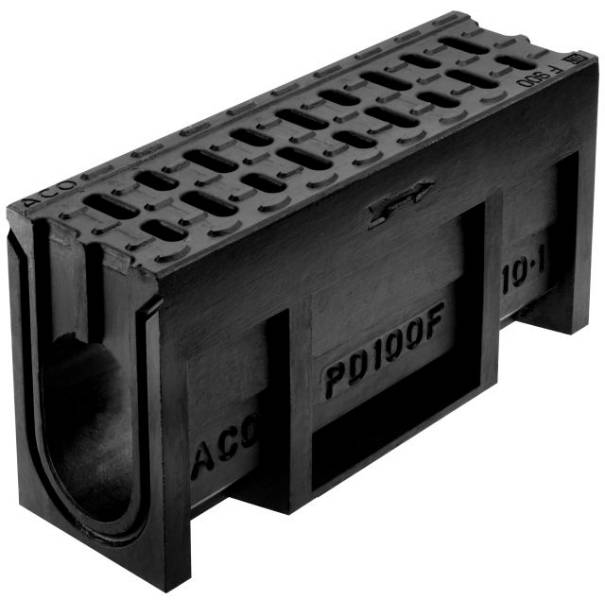

ACO RoadDrain is a tough one piece channel drainage system ideal for medium to heavy-duty highway, distribution yards and airfield applications.
Manufactured from Vienite, ACO high strength recycled polymer concrete, the one piece system is strong and robust in design and the absence of separate gratings eliminates the risk of loss or vandalism. The integral channel and grating design also improves the inherent strength of the system.
Most significantly ACO RoadDrain carries the BSI Kitemark which ensures that the recycled materials and the process used to manufacture it, produce consistently high quality BS EN 1433: 2002 marked product. The product is also fully compliant with national highways and transport agencies (UK) and National Roads Authority (ROI) requirements for motorway and major trunk roads.
ACO RoadDrain is available in two channel widths; 100mm and 200mm and has a variety of depths to suit many design schemes. Each unit within the range is 500mm in length to enable quick and simple installation. The system has a full range of accessories for simple connection to underground drainage. System maintenance is simplified by using ACO RoadDrain rodding access units.
ACO RoadDrain is certified to BS EN 1433: 2002 and can support Load Class performance up to and including F 900 - Ideal for very high wheel loads including Airports and Docks.
-
-
Shape
Square, Rectangle
-
-
Color
Black
-
-
Finish
Matt
-
-
Material
Polymer concrete
-
-
Size
500 x 260 x 500 mm, 500 x 260 x 450 mm, 500 x 260 x 400 mm, 500 x 160 x 450 mm, 500 x 160 x 350 mm, 500 x 160 x 250 mm, 500 x 160 x 400 mm, 500 x 160 x 300 mm
-
-
SKU Code
32101, 32201, 32301, 32401, 32501, 33101, 33201, 33301, 33103, 33203, 33303, 32103, 32303, 32503
-
-
Specification
Classification data
Standard
To BS EN 1433:2002.
-
-
Third party certification
Certified by a notified body to BS EN 1433: 2002.
-
-
Material
Polymer concrete.
-
-
Load class (minimum)
F 900.
-
-
Channel unit dimensions
-
-
-
Length
500 mm.
-
-
Integral accessories
32308 RoadDrain® PD100 F Deep 160 mm Ø Inlet/Outlet End Cap 350 mm., 32506 RoadDrain® PD100 F Deep Universal Closing End Cap 450 mm., 30123 RoadDrain® PD100 F 50 mm Step Connector., 32900 RoadDrain® PD900 F Universal Sump Unit 500 mm F 900.
-
-
Additional properties
Type of fall
Constant invert., Stepped invert.
-
-
Colour
Black.
-
-
Diameter
160 mm.
-
-
Dimensions
500 x 160 x 250 mm.
-
-
