Summary
Fire protection to ceilings and protected zones.
Fire protection to ceilings and protected zones.
Application
Provide fire protection to timber floors and roofs, suspended and self-supporting ceilings.
Provide fire protection to timber floors and roofs, suspended and self-supporting ceilings.
Description
Promat SUPALUX is a non-combustible calcium silicate board reinforced with selected fibres and fillers which can be used for fire protection of ceilings and protected zones.

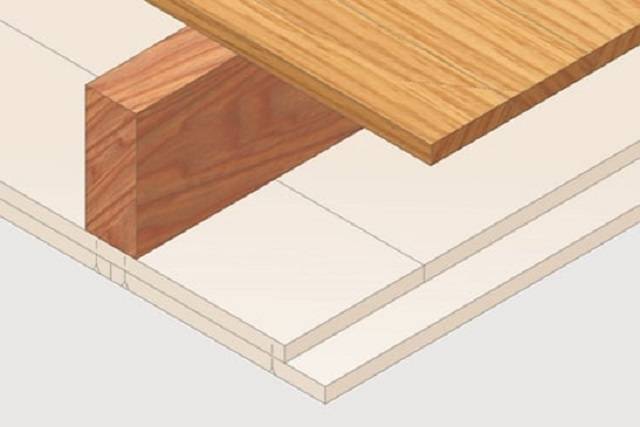

New ceiling lining: Timber floor constructions should normally be tested or assessed in accordance with BS 476-21 and are required to satisfy the three failure criteria of loadbearing capacity, integrity and insulation when exposed to fire for below.
Features and benefits:
- Boards can be installed before the building is watertight and are suitable for areas where the humidity is up to 85%.
- 30–240 minutes fire resistance.
- 30 plus years proven performance.
- High temperature environments (up to 80°C).
- Slim constructions.
- Multiple applications.
- Early installation for faster build.
Promat SUPALUX is a non-combustible calcium silicate board reinforced with selected fibres and fillers which can be used for fire protection of ceilings and protected zones.
New ceiling lining: Timber floor constructions should normally be tested or assessed in accordance with BS 476-21 and are required to satisfy the three failure criteria of loadbearing capacity, integrity and insulation when exposed to fire for below.
Features and benefits:
- Boards can be installed before the building is watertight and are suitable for areas where the humidity is up to 85%.
- 30–240 minutes fire resistance.
- 30 plus years proven performance.
- High temperature environments (up to 80°C).
- Slim constructions.
- Multiple applications.
- Early installation for faster build.
Shape
Square
Square
Color
White
White
Finish
Painted, Untreated
Painted, Untreated
Material
Calcium silicate
Calcium silicate
WarrantyDescription
-
-
Size
2500 x 1250 mm
2440 x 1220 mm
Specification
Standard
BS 476-21, BS 476–22.
BS 476-21, BS 476–22.
Fire rating
To BS EN:13501-1, Class A1.
To BS EN:13501-1, Class A1.
Thickness
20 mm., 25 mm.
6 mm., 9 mm., 12 mm., 15 mm.
Edges
Square.
Square.
Colour
Off-white.
Off-white.
Additional properties
Product Reference
SUPALUX® Ceiling, Floors And Roofs
SUPALUX® Ceiling, Floors And Roofs
Certification
Certifire Certificate CF 420, BFTC Report 07/25 (Protected Zone).
Certifire Certificate CF 420, BFTC Report 07/25 (Protected Zone).
Frame
'C' channel purlins., 'C' channel purlins, perimeter steel angle., Fire rated exposed grid tee system and galvanised steel wire hangers fixed to beams using steel flange clips., Galvanized wire hanger., Hanger rod., MF5 ceiling sections, MF6 perimeter channel, MF7 primary support channel, MF8 strap hanger, MF9 connection clip., Timber joists.
'C' channel purlins., 'C' channel purlins, perimeter steel angle., Fire rated exposed grid tee system and galvanised steel wire hangers fixed to beams using steel flange clips., Galvanized wire hanger., Hanger rod., MF5 ceiling sections, MF6 perimeter channel, MF7 primary support channel, MF8 strap hanger, MF9 connection clip., Timber joists.
Insulation thickness (minimum)
Stone wool insulation thickness.
Stone wool insulation thickness.
Fillet strips
Promat SUPALUX® fillet.
Promat SUPALUX® fillet.
Inner layer
Promat SUPALUX®.
Promat SUPALUX®.
Face layer
Promat SUPALUX®.
Promat SUPALUX®.
Fasteners
M4 self tapping screws., M4 self tapping screws, M6 expansion bolts., Non-combustible screws or plugs and anchors, Ejot Tec screws, drywall screws., Steel wood screws and nails.
M4 self tapping screws., M4 self tapping screws, M6 expansion bolts., Non-combustible screws or plugs and anchors, Ejot Tec screws, drywall screws., Steel wood screws and nails.
System accessories
PROMASEAL® Intumescent Sealant.
PROMASEAL® Intumescent Sealant.
Fire protection
Protection from above and below.
Protection from above and below.
Finish
Painted, Untreated
Painted, Untreated
Moisture
Humidity up to 85%.
Humidity up to 85%.
Type:
Protected Zone., Self Supporting Ceilings Membranes (fire from below)., Self Supporting Ceilings Membranes (fire from below or above - Integrity only)., Self Supporting Ceilings Membranes (fire from below or above - Integrity and Insulation)., Suspended Ceilings - Membrane Ceiling (fire from above or below)., Suspended Ceilings - Protection to Steel Beams Concealed Grid., Suspended Ceilings - Protection to Steel Beams Exposed Grid., Suspended Ceilings - Timber floor (exposed grid system)., Suspended Ceilings - Timber floor (concealed grid system)., Timber Floors and Roofs - Fire From Above or Below., Timber Floors and Roofs - New Ceiling Lining., Timber Floors and Roofs - Timber Roof Voids., Timber Floors and Roofs - Upgrading Existing Ceiling from Below., Timber Floors and Roofs - Upgrading Existing Ceiling from Above.
Protected Zone., Self Supporting Ceilings Membranes (fire from below)., Self Supporting Ceilings Membranes (fire from below or above - Integrity only)., Self Supporting Ceilings Membranes (fire from below or above - Integrity and Insulation)., Suspended Ceilings - Membrane Ceiling (fire from above or below)., Suspended Ceilings - Protection to Steel Beams Concealed Grid., Suspended Ceilings - Protection to Steel Beams Exposed Grid., Suspended Ceilings - Timber floor (exposed grid system)., Suspended Ceilings - Timber floor (concealed grid system)., Timber Floors and Roofs - Fire From Above or Below., Timber Floors and Roofs - New Ceiling Lining., Timber Floors and Roofs - Timber Roof Voids., Timber Floors and Roofs - Upgrading Existing Ceiling from Below., Timber Floors and Roofs - Upgrading Existing Ceiling from Above.
Board size
2500 x 1250 mm.
2440 x 1220 mm.
