Units can be used for above- or below-ground applications, or in perimeter or internal division situations. Suitable for:

• Agricultural uses.

• Commercial and industrial developments.

• Residential areas.

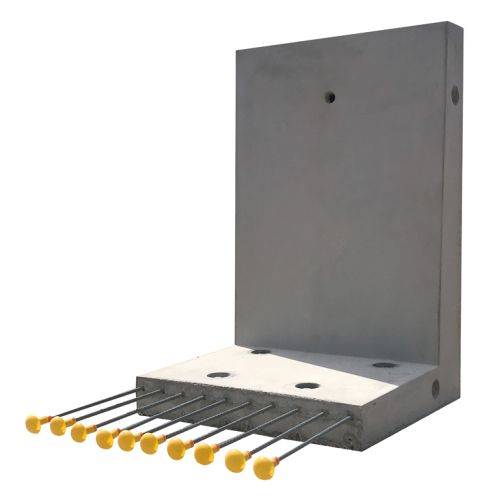

L-shaped, tapered, precast concrete retaining wall units.

Features and benefits:

• Economical, flexible and instant wall retaining system.
• Precast concrete walls allow less build and a reduced curing time.
• Weather-resistant.
• Cast-in option available with reinforcement protruding from toe to tie into in situ concrete slab, providing a level finish base, eliminating the requirement for fixings.
• Bolt-down option available when working with existing slabs or foundations.
• Hand trowel finish to vertical face, steel toe finish to toe side.
• Units can be loaded to one or both faces, with up to 15 kN/m² surcharge, subject to unit height.
• Weepholes and apertures available.
• Bespoke modifications are available to suit site-specific projects.
• Free detailing service available for specific project requirements – consult manufacturer for information.
• Manufactured in accordance with EC2, EC7, BS 8500-1:2006 and BS EN 206-1.
