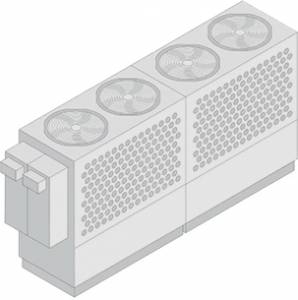

DELTA Heat Pump
DELTA Heat Pump
DELTA Heat Pump

Verified 5 months ago

SAV Systems

Verified 5 months ago

SAV Systems

Verified 5 months ago

SAV Systems
Summary
Modular heat pumps.
-
-
Application

Heat pumps suitable for:

  • Offices, corporate buildings, hotels, hospitality, hospitals, healthcare facilities, schools, colleges, universities, retail, shopping centres, leisure facilities, sports facilities, multi-residential developments, build-to-rent schemes, industrial sites, and warehouses.
  • Heat network (heating and DHW).
-
-
Description

Propane air source heat pump (ASHP) with ultra-low global warming potential (GWP) and high Coefficient of Performance (COP). Lower return temperatures reduce heat pump operating cost and carbon footprint.


Features and benefits:

  • Increased performance at low network return temperatures.
  • Modular approach - each DELTA model consists of one to four modules with independent compressors, frequency converters, condensers and evaporators.
  • Wide operating envelope with high efficiency at ambient temperatures down to -20°C and a flow temperature range steadily up to 70°C.
  • Plug and play design approach simplifies on-site installation.
  • R290 natural refrigerant avoids negative environmental impacts and further supports decarbonization efforts.
-
-
Color
Silver, Grey
-
-
Material
Steel
-
-
Shape
Rectangle
-
-
Length
2980 mm, 5388 mm, 7794 mm, 10204 mm
-
-
Width
1540 mm
-
-
Height
2586 mm
-
-
SKU Code
DELTA-HP1, DELTA-HP2, DELTA-HP3, DELTA-HP4
-
-

Specification

Standards
-
-
-
Test requirements
To EN 14511.
-
-
Heat pump type
Monobloc.
-
-
Mode
Heating.
-
-
Coefficient of performance (minimum)
3.87.
-
-
Output
-
-
-
Heating
140 kW.
-
-
Fan
-
-
-
Type
Manufacturer's standard.
-
-
Fan drive
Manufacturer's standard.
-
-
Configuration
Manufacturer's standard.
-
-
Electrical supply type
Three phase.
-
-
Compressor
-
-
-
Type
Manufacturer's standard.
-
-
Sealing
Semi-hermetically sealed.
-
-
Drive
Manufacturer's standard.
-
-
Refrigerant
R290.
-
-

Additional properties

Energy rating
A++.
-
-
Temperature
Air temperature rage: -20 to 35°C.
Flow temperature range: 35 to 70°C.
-
-
Dimensions
5388 x 1540 x 2586 mm.
-
-
Weight
Dry: 2184 kg.
Operational: 2284 kg.
-
-
Connections
Ø76.1 mm with DN65 press adaptor.
-
-
Flow rate
13.0 m³/hr.
-
-
Water pressure
10 bar.
-
-
Air flow
96 000 m³/hr.
-
-
Control
Analogue and digital.
-
-
Communications
MODBUS RS485 + 4G / SIM.
-
-
Sound
64 dB(A).
-
-

Sustainability data

Country of product manufacture
Denmark
-
-
Manufacturing plant location
Nordvestvej 4, 9600 Aars, Denmark
-
-
Material
Steel
-
-
