Summary
A range of modular smoke extraction pods providing a prefabricated, pre-commissioned solution for high-rise apartment buildings.
-
-
Application
Suitable for mechanical smoke ventilation systems in high rise apartments.
-
-
Description

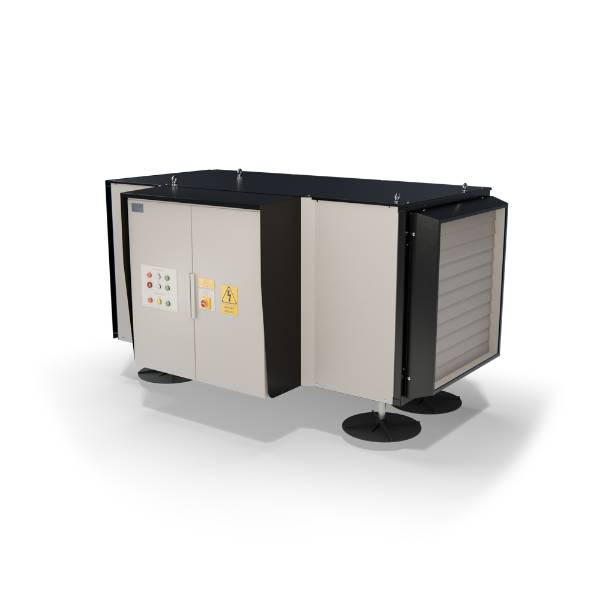

A range of modular smoke extraction pods providing a prefabricated, pre-commissioned solution for high-rise apartment buildings. Available in Original, Micro, Mini and Max variants.
The pods are available in a range of sizes giving guaranteed extract rates and static pressures with short lead times.
Features and benefits:
- Fans tested and certified to BS EN 12101-3:2015.
- Original, Mini and Max are supplied within a powder-coated panel enclosure giving a neat appearance.
- Ready for a single lift to rooftop.
-
-
Digital objects
-
-
Finish
Powder-coated
-
-
Material
Steel, Aluminium
-
-
Shape
Rectangle
-
-
Length
2106 mm, 1100 mm, 1636 mm, 2045 mm, 3056 mm
-
-
Width
1400 mm, 1340 mm, 1350 mm
-
-
Height
1310 mm, 1900 mm, 2590 mm, 3300 mm
-
-
Warranty description
Five year, Two year
-
-
Specification
Classification data
Standard
To BS EN 12101-3.
-
-
Fire performance
-
-
-
Standard
To BS EN 13501-4.
-
-
Classification
F300 (120).
-
-
Temperature (maximum)
Fan capable of handling smoke at 300°C.
-
-
Application category
Outside the smoke reservoir.
-
-
Duty
-
-
-
Air volume
6.00 m³/s.
-
-
Fan speed
2880 RPM at 50 Hz.
-
-
External static resistance
450 Pa.
-
-
Electrical supply
-
-
-
Nominal voltage
Three-phase 400 V a.c.
-
-
Frequency
50 Hz.
-
-
Electrical safety
To BS EN 61439-2.
-
-
Mounting
Roof.
-
-
Arrangement
Smoke extraction pod.
-
-
Materials
-
-
-
Frame
Steel.
-
-
Finish
Powder-coated.
-
-
Controls
Control Panel.
-
-
Additional properties
Components
Universal docking station, primary attenuator, duty and standby fans, anti-vibration mounts and 24 V d.c. powered louvre to outlet.
-
-
