Summary

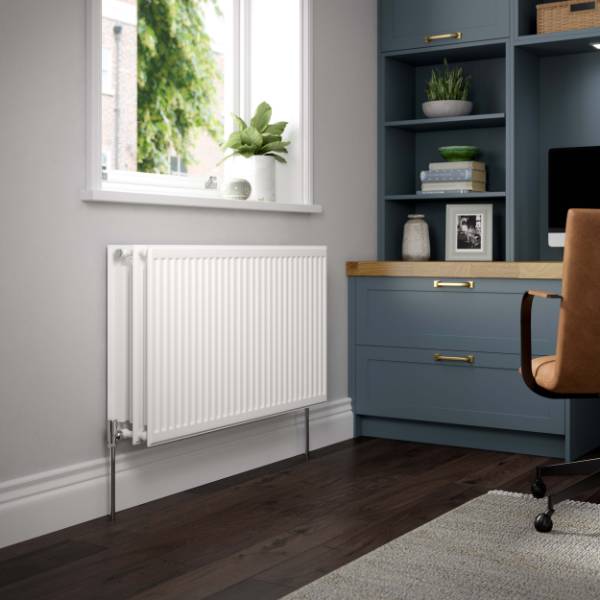

Slim, versatile radiator with high quality and performance.
-
-
Application

Suitable use for residential and commercial projects.

-
-
Description

Slim, versatile radiator with high quality and performance.


Features and benefits:

  • Performs to a maximum working pressure of 145 psi (10 bar).
  • Conforms to BS EN 442.
  • Available in a range of 183 sizes, providing extra sizing flexibility to cover a multitude of application requirements.
  • The convectors are precision welded directly onto the waterways.
  • All tappings are aligned, with high quality nickel-plated plugs and vents, incorporating high quality ethylene propylene diene monomer (EPDM) ‘O’ rings. High-definition pressings ensure smooth edges and corners, and the run-free, two-coat paint finish blends with all styles of décor.
  • Symmetrical convectors allow radiator mounting either way up, and a top and bottom opposite end (TBOE) connection is offered as an important facility in commercial applications and to ensure greater efficiency and economy.
  • White (RAL 9016) in colour.
  • Accessories are available to ensure that the Stelrad Elite can be fitted within a wide range of applications - consult manufacturer for details.
  • Sections: Dependent on size and style, consult manufacturer's literature for information.
  • Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
  • Style: Certain styles are only available with certain sizes, consult manufacturer for information.
-
-
Color
White
-
-
Finish
Painted
-
-
Material
Steel
-
-
Shape
Rectangle
-
-
Warranty description
Ten year
-
-

Specification

Standards
To BS EN 44.2.
-
-
Radiator type
Single panel.
-
-
Output
190–6033 W (648–20 591 Btu/h).
-
-
Finish
Painted.
-
-
Connections
½” inlet.
-
-
Accessories
Not required., Floor mounting brackets.
-
-

Additional properties

Size (h x l)
-
-
-
WorkingPressure
10 bar.
-
-
Operating pressure (maximum)
13.5 bar.
-
-
Depth
47 mm.
-
-
Projection
78 mm.
-
-
