Summary
Automatic bypass valves that open and close according to the system pressure increasing the system efficiency as well as eliminating any noise.
Automatic bypass valves that open and close according to the system pressure increasing the system efficiency as well as eliminating any noise.
Application
Suitable for all heating systems up to 10 bar static pressure where a boiler bypass is required or radiator thermostats are fitted.
Suitable for all heating systems up to 10 bar static pressure where a boiler bypass is required or radiator thermostats are fitted.
Description
Automatic bypass valves that open and close according to the system pressure increasing the system efficiency as well as eliminating any noise.
Features and benefits:
- Straight and angled models available.
- Exclusive and simple adjustment mechanism.
- High capacity flow up to 83 litres per minute.
- Wide differential pressure range 0.1 bar to 0.5 bar.
- 22 mm compression fittings for ease of installation.
- Reduces system noise and maintains an even system pressure.
- Ensures constant flow through boiler.
- Lockable set pressure prevents inadvertent adjustment.
Automatic bypass valves that open and close according to the system pressure increasing the system efficiency as well as eliminating any noise.
Features and benefits:
- Straight and angled models available.
- Exclusive and simple adjustment mechanism.
- High capacity flow up to 83 litres per minute.
- Wide differential pressure range 0.1 bar to 0.5 bar.
- 22 mm compression fittings for ease of installation.
- Reduces system noise and maintains an even system pressure.
- Ensures constant flow through boiler.
- Lockable set pressure prevents inadvertent adjustment.
Color
Silver
Silver
Warranty description
Two year
Two year
SKU Code
EV-ABV22, EV-ABV22S
EV-ABV22, EV-ABV22S
Specification
Classification data
Form

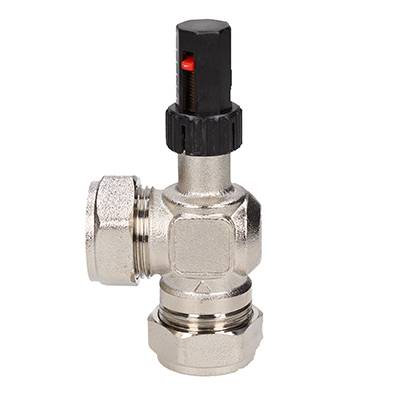

Flow regulating, angled.
Flow regulating, straight.
Adjustment
Adjustable, 0.1–0.5 bar differential pressure.
Adjustable, 0.1–0.5 bar differential pressure.
Operating conditions
-
-
Temperature (maximum)
100°C.
100°C.
Maximum working pressure
10 bar.
10 bar.
Connections
22 mm compression.
22 mm compression.
Additional properties
Flow capacity
1–5 m³/h.
1–5 m³/h.
