Summary

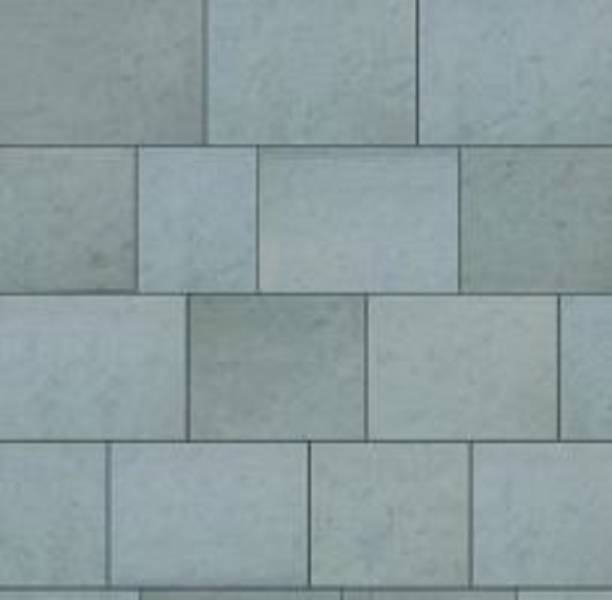

Natural stone paving slabs with high slip resistance suitable for both pedestrian and trafficked areas.
Natural stone paving slabs with high slip resistance suitable for both pedestrian and trafficked areas.
Color
Blue, Grey
Blue, Grey
Finish
Diamond, Capital
Diamond, Capital
Material
Stone
Stone
Shape
Pentagon, Square
Pentagon, Square
Size
450 x 450 x 50 mm, 450 x 450 x 63 mm, 450 x 450 x 75 mm, 450 x 600 x 50 mm, 450 x 600 x 63 mm, 450 x 600 x 75 mm, 450 x 750 x 50 mm, 450 x 750 x 63 mm, 450 x 750 x 75 mm, 600 x 600 x 50 mm, 600 x 600 x 63 mm, 600 x 600 x 75 mm, 600 x 750 x 50 mm, 600 x 750 x 63 mm, 600 x 750 x 75 mm, 900 x 450 x 50 mm, 900 x 450 x 63 mm, 900 x 450 x 75 mm, 900 x 600 x 50 mm, 900 x 600 x 63 mm, 900 x 600 x 75 mm
450 x 450 x 50 mm, 450 x 450 x 63 mm, 450 x 450 x 75 mm, 450 x 600 x 50 mm, 450 x 600 x 63 mm, 450 x 600 x 75 mm, 450 x 750 x 50 mm, 450 x 750 x 63 mm, 450 x 750 x 75 mm, 600 x 600 x 50 mm, 600 x 600 x 63 mm, 600 x 600 x 75 mm, 600 x 750 x 50 mm, 600 x 750 x 63 mm, 600 x 750 x 75 mm, 900 x 450 x 50 mm, 900 x 450 x 63 mm, 900 x 450 x 75 mm, 900 x 600 x 50 mm, 900 x 600 x 63 mm, 900 x 600 x 75 mm
Specification
Stone denomination
-
-
Petrological family
Sandstone.
Sandstone.
Colour
Pale greenish grey.
Pale greenish grey.
Origin
Shepley, Huddersfield.
Shepley, Huddersfield.
Physical properties
-
-
Profile
-
-
Slab type
Regular plan form.
Regular plan form.
Arrises
Square.
Square.
Dimensions and associated tolerances
-
-
Nominal sizes
450 x 450 x 50 mm., 450 x 450 x 63 mm., 450 x 450 x 75 mm., 450 x 600 x 50 mm., 450 x 600 x 63 mm., 450 x 600 x 75 mm., 450 x 750 x 50 mm., 450 x 750 x 63 mm., 450 x 750 x 75 mm., 600 x 600 x 50 mm., 600 x 600 x 63 mm., 600 x 600 x 75 mm., 600 x 750 x 50 mm., 600 x 750 x 63 mm., 600 x 750 x 75 mm., 900 x 450 x 50 mm., 900 x 450 x 63 mm., 900 x 450 x 75 mm., 900 x 600 x 50 mm., 900 x 600 x 63 mm., 900 x 600 x 75 mm.
450 x 450 x 50 mm., 450 x 450 x 63 mm., 450 x 450 x 75 mm., 450 x 600 x 50 mm., 450 x 600 x 63 mm., 450 x 600 x 75 mm., 450 x 750 x 50 mm., 450 x 750 x 63 mm., 450 x 750 x 75 mm., 600 x 600 x 50 mm., 600 x 600 x 63 mm., 600 x 600 x 75 mm., 600 x 750 x 50 mm., 600 x 750 x 63 mm., 600 x 750 x 75 mm., 900 x 450 x 50 mm., 900 x 450 x 63 mm., 900 x 450 x 75 mm., 900 x 600 x 50 mm., 900 x 600 x 63 mm., 900 x 600 x 75 mm.
Finish
Diamond sawn.
Capital finish.
Performance requirements
-
-
Slip resistance
To BS 14231, 78 (Dry), 72 (wet).
To BS 14231, 80 (Dry), 75 (wet).
Water absorption (maximum)
To EN 13755, 2.9%.
To EN 13755, 2.9%.
Additional properties
Third-party certification
CE marked.
CE marked.
Sustainability data
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
A1-A3 (production stage)
Embodied carbon as defined in BS EN 15804
Normalised unit
-
-
Declared unit
25 kg CO2 m² (50 mm), 31.5 kg CO2 m² (63 mm), 37.5 kg CO2 m² (70 mm)
Self-declared
25 kg CO2 m² (50 mm), 31.5 kg CO2 m² (63 mm), 37.5 kg CO2 m² (70 mm)
Self-declared
