Quartis - Clay Facing Brick
Quartis - Clay Facing Brick
Quartis - Clay Facing Brick

Last verified by manufacturer over a year ago

Vandersanden Brick

M50

Last verified by manufacturer over a year ago

Vandersanden Brick

WF

Last verified by manufacturer over a year ago

Vandersanden Brick

DF

Summary

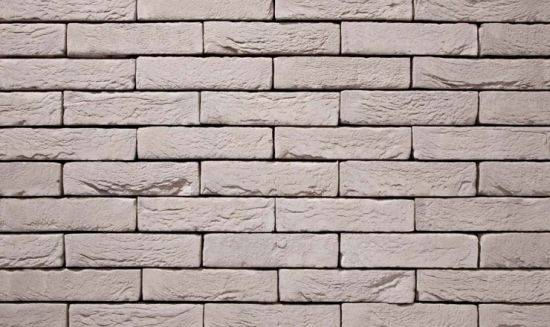

A unicoloured light metal grey facing brick, with a sanded-coated and grained structure.
A unicoloured light metal grey facing brick, with a sanded-coated and grained structure.
A unicoloured light metal grey facing brick, with a sanded-coated and grained structure.
Description

The base material for this type of facing brick is Westerwald clay, a natural white baking clay of the Westerwald region in the western part of Germany. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Single coloured.
  • Five joint styles available.

The base material for this type of facing brick is Westerwald clay, a natural white baking clay of the Westerwald region in the western part of Germany. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Single coloured.
  • Five joint styles available.

The base material for this type of facing brick is Westerwald clay, a natural white baking clay of the Westerwald region in the western part of Germany. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Single coloured.
  • Five joint styles available.
Color
Grey
Grey
Grey
Finish
Sanded, Coated
Sanded, Coated
Sanded, Coated
Material
Clay
Clay
Clay
Shape
Rectangle
Rectangle
Rectangle
Length
192 mm, 212 mm, 214 mm
192 mm, 212 mm, 214 mm
192 mm, 212 mm, 214 mm
Width
89 mm, 101 mm
89 mm, 101 mm
89 mm, 101 mm
Height
50 mm, 51 mm, 65 mm
50 mm, 51 mm, 65 mm
50 mm, 51 mm, 65 mm
SKU Code
075A0
075A0
075A0

Specification

Standard
To BS EN 771-1.
To BS EN 771-1.
To BS EN 771-1.
Brick description
Facing brick.
Facing brick.
Facing brick.
Appearance
Light metal grey facing brick, with a sanded-coated and grained structure.
Light metal grey facing brick, with a sanded-coated and grained structure.
Light metal grey facing brick, with a sanded-coated and grained structure.
Work size (length x width x height)
192 x 89 x 50 mm.
212 x 101 x 51 mm.
214 x 101 x 65 mm.
Tolerances
-
-
-
Mean value
T2.
T2.
T2.
Range
R1.
R1.
R1.
Compressive strength
-
-
-
Mean compressive strength (minimum)
≥20 N/mm².
≥20 N/mm².
≥20 N/mm².
Durability designation
F2.
F2.
F2.
Density
-
-
-
Gross dry
1640 kg/m³.
1640 kg/m³.
1640 kg/m³.
Net dry
1750 kg/m³.
1750 kg/m³.
1750 kg/m³.
Tolerance
D1.
D1.
D1.
Water absorption
≤15% m/md.
≤15% m/md.
≤15% m/md.
Configuration
Frogged.
Frogged.
Frogged.
Thermal conductivity
≤0.55 W/m·K.
≤0.55 W/m·K.
≤0.55 W/m·K.
Water vapour permeability
5/10 µ.
5/10 µ.
5/10 µ.
Reaction to fire
Class A1.
Class A1.
Class A1.

Additional properties

Active soluble salts
S2.
S2.
S2.
Jointing
Dark grey., Grey., Joint free., Light grey., Tone-on-tone.
Dark grey., Grey., Joint free., Light grey., Tone-on-tone.
Dark grey., Grey., Joint free., Light grey., Tone-on-tone.

Sustainability data

Country of material origin
Europe
Europe
Europe
Country of product manufacture
Belgium
Belgium
Belgium
