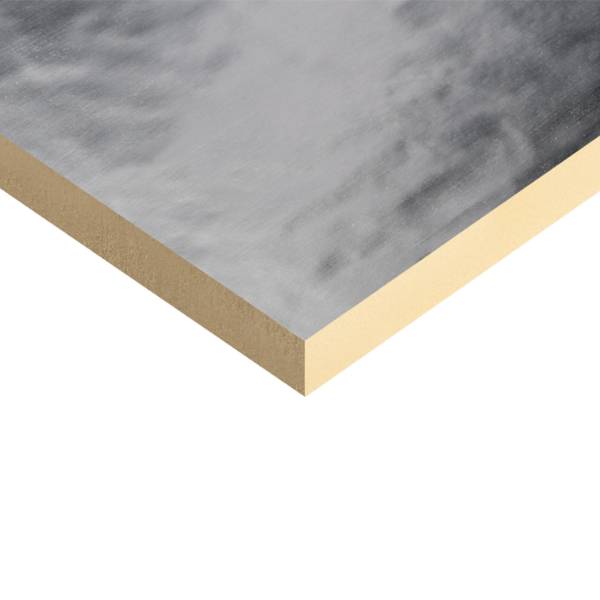

Sikatherm® PIR AL is a polyisocyanurate (PIR) aluminium-faced thermal insulation board for use in Sikaplan® warm roof mechanically fixed and loose laid ballasted waterproofing systems.
Sikatherm® PIR AL is a polyisocyanurate (PIR) aluminium-faced thermal insulation board for use in Sikaplan® warm roof mechanically fixed and loose laid ballasted waterproofing systems.
Application
For use with Sikaplan® PVC roof waterproofing systems.
For mechanically fixed application of insulation boards refer to IMA guidance. Suitability of system to be confirmed based on site specific wind loading calculations.
Installed in accordance with Sika Limited application instructions, Technical guidance and Product Data Sheet.
For use with Sikaplan® PVC roof waterproofing systems.
For mechanically fixed application of insulation boards refer to IMA guidance. Suitability of system to be confirmed based on site specific wind loading calculations.
Installed in accordance with Sika Limited application instructions, Technical guidance and Product Data Sheet.
Description
Sikatherm® PIR AL is an insulation board for mechanically fixed and loose laid ballasted flat roofing applications. It is faced on both sides with an aluminium composite foil bonded to the insulation core and produces a tough, durable, light weight insulation board.
USES
Thermal insulation underneath specified Sikaplan® roof waterproofing for mechanically fixed and loose laid ballasted applications.
CHARACTERISTICS / ADVANTAGES
- Produced with a blowing agent with zero Ozone Depletion
- Potential (ODP)
- Ideal for new construction and refurbishment
- No separation layer for PVC membranes required
- High compressive strength
- Light weight and low load on the roofing structure
- FM Approved
APPROVALS / STANDARDS
- Factory Mutual (FM) Certificate
Sikatherm® PIR AL is an insulation board for mechanically fixed and loose laid ballasted flat roofing applications. It is faced on both sides with an aluminium composite foil bonded to the insulation core and produces a tough, durable, light weight insulation board.
USES
Thermal insulation underneath specified Sikaplan® roof waterproofing for mechanically fixed and loose laid ballasted applications.
CHARACTERISTICS / ADVANTAGES
- Produced with a blowing agent with zero Ozone Depletion
- Potential (ODP)
- Ideal for new construction and refurbishment
- No separation layer for PVC membranes required
- High compressive strength
- Light weight and low load on the roofing structure
- FM Approved
APPROVALS / STANDARDS
- Factory Mutual (FM) Certificate
Color
Other
Other
Finish
Aluminium
Aluminium
Material
Polyisocyanurate
Polyisocyanurate
Shape
Rectangle
Rectangle
Length
2400 mm
2400 mm
Width
1200 mm
1200 mm
Height
Bespoke
Bespoke
Warranty description
15 year, 20 year, 25 year
15 year, 20 year, 25 year
Specification
Classification data
Standard
To BS EN 13165.
To BS EN 13165.
Third party product certification
Factory Mutual (FM) certificate.
Factory Mutual (FM) certificate.
Fire performance
Class F (EN 13501-1).
Class F (EN 13501-1).
Cross section
Uniform thickness.
Tapered.
Thickness (nominal)
-
-
Face size (length x width)
2400 x 1200 mm.
2400 x 1200 mm.
Density
~32 kg/m³.
~32 kg/m³.
Compressive strength at 10% deformation
To EN 826, >150 kPa.
To EN 826, >150 kPa.
Facing
Aluminium composite foil.
Aluminium composite foil.
Edges
Square.
Square.
Additional properties
Dimensional stability
To EN 1604, DS (70,90) 3.
To EN 1604, DS (70,90) 3.
