Summary

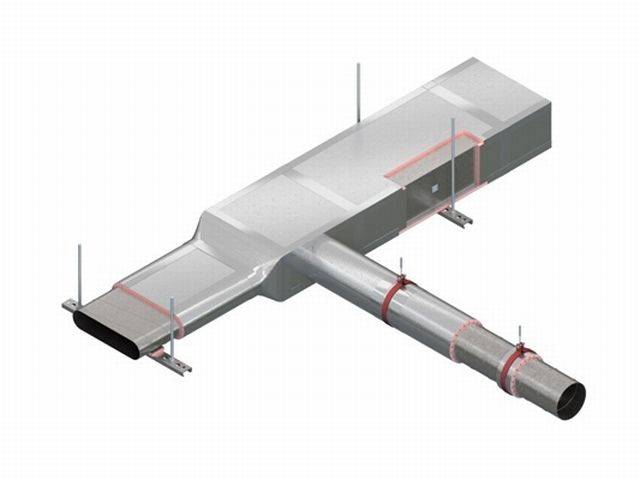

An energy-efficient rigid insulation for rectangular, circular and flat oval HVAC ductwork.
-
-
Application
Suitable for use on rectangular, circular and flat oval ductwork in HVAC or building services applications.
-
-
Description
Energy-efficient rigid insulation for rectangular, circular and flat oval HVAC ductwork suitable for new build and refurbishment projects in the residential, commercial, institutional and industrial sectors. Comprised of a fibre-free rigid phenolic insulation core externally faced with an aluminium vapour barrier foil and internally with a glass tissue based facing.
Insulated duct support inserts:
During the installation of galvanised steel ductwork, the contractor should place insulated support inserts between ducts and supports, to extend both sides of the support to allow for tape application. Insulated duct support inserts should be of suitable compressive strength to carry the loads transmitted to the supports and should be of the same thickness as that of the adjacent duct insulation.
Features and benefits:
- CFC-free and HCFC-free, with zero ozone depleting potential (zero ODP) and a global warming potential of ≤5.
- BS EN ISO 9001: 2015 (Quality management systems. Requirements), BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements)
- BS ISO 45001: 2018 (Occupational health and safety management systems) and BS EN ISO 50001: 2018 (Energy Management Systems).
-
-
Product certifications
- ISO 37301 (Compliance Management Systems) ISO 37301:2021 - Pembridge
-
-
Digital objects
-
-
Color
Pink
-
-
Finish
Smooth, Foil
-
-
Material
Phenolic foam
-
-
Length
1200 mm
-
-
Width
600 mm, 2400 mm
-
-
Height
20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm
-
-
Specification
Standard
To BS EN 14314:2009+A1:2013.
-
-
Form
Duct slab.
-
-
Thermal conductivity
0.024 W/m K at -20°C., 0.022 W/m K at 10°C., 0.023 W/m K at 19°C., 0.023 W/m K at 25°C., 0.026 W/m K at 50°C., 0.031 W/m K at 80°C.
-
-
Finish
Exposed aluminium foil facing.
-
-
Fire performance
To BS EN 13501-1, class B-s2, d0 (exposed foil face); class E (non exposed tissue face).
-
-
Insulation thickness (minimum)
20 mm.
-
-
Vapour barrier
-
-
-
Material
Factory-applied aluminium foil.
-
-
Protection
Not required., Waterproof finish.
-
-
Accessories
Not required., Aluminium tape., Adhesive., Bands (preferably aluminium).
-
-
Additional properties
FM approved
FM Approved per Approval Standard 4924 as a low fire hazard.
-
-
Compressive strength (minimum)
100 kPa at 10% compression.
-
-
Closed cell content
≥90%.
-
-
Nominal density range
35–40 kg/m³.
-
-
Face Size (length x width)
600 x 1200 mm., 1200 x 2400 mm.
-
-
Sustainability data
Country of material origin
United Kingdom
-
-
Country of product manufacture
United Kingdom
-
-
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Lower emissions
Normalized unit
2.77 kg CO₂ eq/kg
-
-
Declared unit
2.77 kg CO₂ eq/kg
Certified
-
-
Recycled content
0 %
-
-
