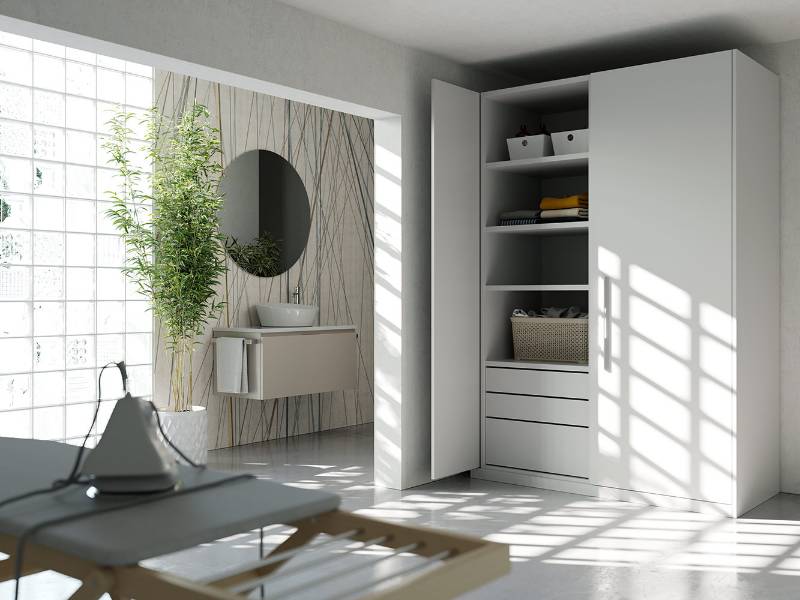

Suitable for multiple applications – from larder units for kitchens, in living rooms for media or library units; in bedroom wardrobes and in office storage applications.

Suitable for multiple applications – from larder units for kitchens, in living rooms for media or library units; in bedroom wardrobes and in office storage applications.

A pocket door system with assisted sliding action enhanced by linear damping to gently control the movement of the door. Exedra refines and improves the deceleration concept to give a smooth, fluent, uniform and noiseless movement, regardless of the speed of door insertion.

Features and benefits:

• Soft close movement while sliding in and out.
• Maximum weight for each door: 30 kg (distributed evenly) or 40 kg for doors with five hinges.
• The system can be equipped with a Smove damper, conferring a seamless decelerating effect.
• Vertical, horizontal and front door adjustment.
• Available in standard version, partially assembled and customised.
• Cam-assisted door insertion and extraction movement.
• Magnetic buffer for soft insertion.
• Slide-in installation to facilitate installation and removal of the mechanism from the front
• Sliding carriage.
• Quick coupling hinges.
• All adjustments are accessible from the front of the cabinet.
• Profile cover caps (included in the standard versions).
• Exedra and Exedra Euro 32 versions.
• Maximum width: 700 mm.
• Thickness from 18 mm to 30 mm.
• Width from 370 mm to 900 mm.
• Height from 1575 mm to 2500 mm as standard.
• Height from 1303 mm to 1575 mm and from 2501 mm to 2800 mm can be considered after discussion and verification from our technical support department.

A pocket door system with assisted sliding action enhanced by linear damping to gently control the movement of the door. Exedra refines and improves the deceleration concept to give a smooth, fluent, uniform and noiseless movement, regardless of the speed of door insertion.

Features and benefits:

• Soft close movement while sliding in and out.
• Maximum weight for each door: 30 kg (distributed evenly) or 40 kg for doors with five hinges.
• The system can be equipped with a Smove damper, conferring a seamless decelerating effect.
• Vertical, horizontal and front door adjustment.
• Available in standard version, partially assembled and customised.
• Cam-assisted door insertion and extraction movement.
• Magnetic buffer for soft insertion.
• Slide-in installation to facilitate installation and removal of the mechanism from the front
• Sliding carriage.
• Quick coupling hinges.
• All adjustments are accessible from the front of the cabinet.
• Profile cover caps (included in the standard versions).
• Exedra and Exedra Euro 32 versions.
• Maximum width: 700 mm.
• Thickness from 18 mm to 30 mm.
• Width from 370 mm to 900 mm.
• Height from 1575 mm to 2500 mm as standard.
• Height from 1303 mm to 1575 mm and from 2501 mm to 2800 mm can be considered after discussion and verification from our technical support department.
