Summary
Smoke heat exhaust ventilation (SHEV) operation panels.
Smoke heat exhaust ventilation (SHEV) operation panels.
Application
Suitable for manually triggering a smoke heat exhaust ventilation (SHEV) system in case of fire.
Suitable for manually triggering a smoke heat exhaust ventilation (SHEV) system in case of fire.
Description
A range of complete smoke vent switches and bespoke modular units.
Features and benefits:
- For 24 V d.c. D+H smoke vent control panels.
- Lockable surface mounted aluminium die-cast housing with break-type glass, keys and designation labels in 32 languages.

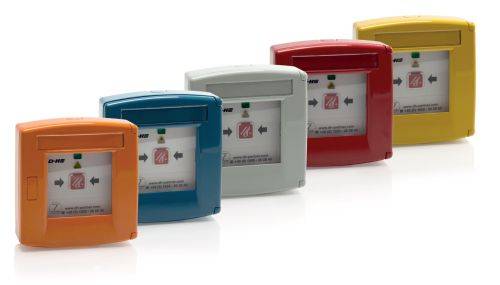

- Available in five powder-coated colours.
A range of complete smoke vent switches and bespoke modular units.
Features and benefits:
- For 24 V d.c. D+H smoke vent control panels.
- Lockable surface mounted aluminium die-cast housing with break-type glass, keys and designation labels in 32 languages.
- Available in five powder-coated colours.
Color
Orange
Orange
Finish
Powder-coated
Powder-coated
Material
Aluminium
Aluminium
Shape
Rectangle
Rectangle
Length
129 mm
129 mm
Width
39 mm
39 mm
Height
138 mm
138 mm
SKU Code
RT45
RT45
Specification
Enclosure
-
-
Ingress protection (minimum)
IP40.
IP40.
Material
Die-cast aluminium.
Die-cast aluminium.
Finish
Powder-coated.
Powder-coated.
Colour
Orange (RAL 2011)., Grey (RAL 7035)., Red (RAL 3000)., Blue (RAL 5009)., Yellow (RAL 1004).
Orange (RAL 2011)., Grey (RAL 7035)., Red (RAL 3000)., Blue (RAL 5009)., Yellow (RAL 1004).
Additional properties
Operation unit
Not required., RT BE42-ST., RT BE42-Z., RT BE42-Z-K., RT BE45-1., RT BE45-1-LT., RT BE45-2., RT BE45-3., RT LT45.
Not required., RT BE42-ST., RT BE42-Z., RT BE42-Z-K., RT BE45-1., RT BE45-1-LT., RT BE45-2., RT BE45-3., RT LT45.
Frame/ socket
Not required., RT UPR 02 flush-mounted frame, orange (~ RAL 2011)., RT UPD 02 flush mounted socket, orange.
Not required., RT UPR 02 flush-mounted frame, orange (~ RAL 2011)., RT UPD 02 flush mounted socket, orange.
Input voltage
18–28 V d.c.
18–28 V d.c.
Dimensions
129 x 138 x 39 mm.
129 x 138 x 39 mm.
Standards
VdS G 510003.
VdS G 510003.
Type
Complete SHEV operation panel.
Bespoke modular units, individual components required are: RT housing, RT operation units and flush-mounted frame/ socket.
