Summary

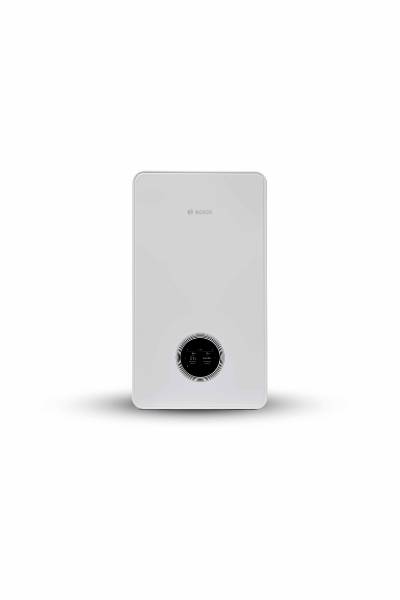

Bosch Compress 5800i Wall-hung Heat Pump Indoor Unit.
Bosch Compress 5800i Wall-hung Heat Pump Indoor Unit.
Application
Suitable for wall-hung indoor applications.
Suitable for wall-hung indoor applications.
Description
The Bosch Compress 5800i Wall-hung Indoor Unit is one of three possible indoor solutions to be paired with the Bosch Compress 5800i AW heat pump. The wall-hung option provides flexibility for third-party system solutions where the DHW tower or pre-plumbed cylinder maybe not be suitable such as in a case where a higher domestic hot water volume is required. Easy to install the wall-hung unit has the premium look and feel design of the heat pump itself and comes with integrated space and DHW back-up heater, full-colour touch HMI800 display, three-way valve and primary circulation pump.
Features and benefits:
- Ultra-quiet, highly efficient and more compact heat pump.
- High flow temperature heat pump for greater hot water comfort.
- Future-proof and environmentally friendly R290 refrigerant.
- Selection of indoor units providing flexibility for a range of installations.
- Engineer-focused design, allows immediate access to the control box.
- Ability to use third-party cylinders and components.
- Built-in colour intuitive touchscreen for easy use.
- Remote monitoring and access with Connect-Key K30 and Bosch HomeCom Easy app.
The Bosch Compress 5800i Wall-hung Indoor Unit is one of three possible indoor solutions to be paired with the Bosch Compress 5800i AW heat pump. The wall-hung option provides flexibility for third-party system solutions where the DHW tower or pre-plumbed cylinder maybe not be suitable such as in a case where a higher domestic hot water volume is required. Easy to install the wall-hung unit has the premium look and feel design of the heat pump itself and comes with integrated space and DHW back-up heater, full-colour touch HMI800 display, three-way valve and primary circulation pump.
Features and benefits:
- Ultra-quiet, highly efficient and more compact heat pump.
- High flow temperature heat pump for greater hot water comfort.
- Future-proof and environmentally friendly R290 refrigerant.
- Selection of indoor units providing flexibility for a range of installations.
- Engineer-focused design, allows immediate access to the control box.
- Ability to use third-party cylinders and components.
- Built-in colour intuitive touchscreen for easy use.
- Remote monitoring and access with Connect-Key K30 and Bosch HomeCom Easy app.
Color
White
White
Finish
Semi-gloss
Semi-gloss
Material
Metal
Metal
Shape
Rectangle
Rectangle
Length
297.0 mm
297.0 mm
Width
400.0 mm
400.0 mm
Height
719.6 mm
719.6 mm
Warranty description
Seven year
Seven year
SKU Code
8738214990
8738214990
Specification
Classification data
Description
Wall-hung heat pump indoor unit.
Wall-hung heat pump indoor unit.
Standards
-
-
Safety and environmental
To BS EN 378-1 and BS EN 378-2.
To BS EN 378-1 and BS EN 378-2.
Electrical safety
To BS EN 60335-2-40.
To BS EN 60335-2-40.
Heat pump type
Exhaust.
Exhaust.
Mode
Cooling and heating.
Cooling and heating.
Output
-
-
Heating
9 kW.
3 kW.
Electrical supply type
Three phase.
Single phase.
Accessories
Not required., DHW cylinder (water heater)., Automatic air ventilation valve for the DHW cylinder., Thermostatic valve hot water., Pressure relief valve DHW., DHW circulation pump., Filling equipment DHW., Incoming cold water check valve., Room controller., Connect-Key K30RF., Safety thermostat for under floor heating.
Not required., DHW cylinder (water heater)., Automatic air ventilation valve for the DHW cylinder., Thermostatic valve hot water., Pressure relief valve DHW., DHW circulation pump., Filling equipment DHW., Incoming cold water check valve., Room controller., Connect-Key K30RF., Safety thermostat for under floor heating.
Refrigerant
R290.
R290.
Additional properties
Dimensions
400 x 719.6 x 297.0 mm.
400 x 719.6 x 297.0 mm.
Connection
∅28 mm.
∅28 mm.
Operating pressure (maximum)
300 kPa/ 3 bar.
300 kPa/ 3 bar.
SupplyWaterTemperatureHeating
75℃.
75℃.
Ingress protection (IP) rating
IPX4D.
IPX4D.
Weight
26 kg.
26 kg.
Installation height
Up to 2000 mm.
Up to 2000 mm.
Sustainability data
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Material
Metal
Metal
